VRLA Maintenance Free Sealed Lead Acid Deep Cycle Gel Battery 1500AH 2V M10
Contact Person : Vic
Phone Number : +8618371595888
WhatsApp : +8618371595888
Detail Information |
|||
Model Number: | GFMJ-2000 | Nominal Capacity: | 2000AH |
---|---|---|---|
Weight: | 154.5KG | Voltage: | 2V |
Size: | 399*214*772/804mm | Application: | Telecom / Energy Storage / Electrical System |
Color: | Grey | Product Name: | 2V 2000AH Gel Battery |
Terminal: | M10 | ||
High Light: | 2000ah Tubular Gel VRLA Battery,M10 Terminal Tubular Gel VRLA Battery,2000ah Free Lead Acid Battery |
Product Description
Product Description

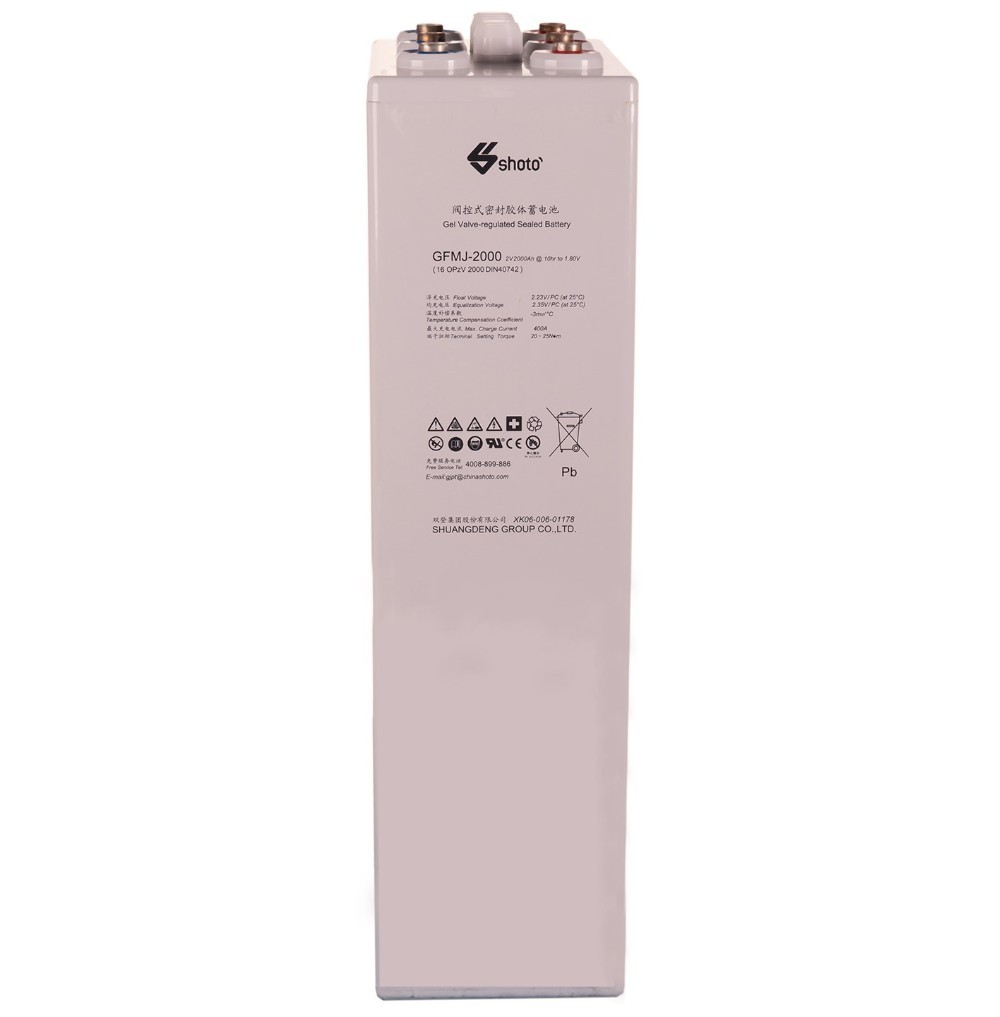

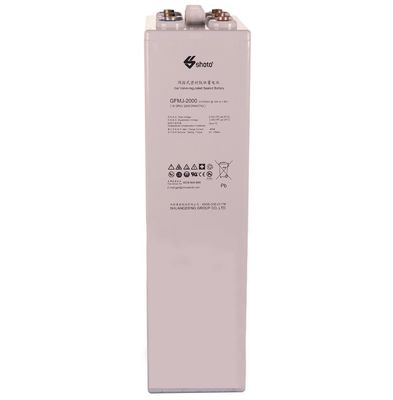

Shoto GFMJ - 2000 VRLA Maintenance - free Sealed Lead - acid Gel Battery for Telecom / Energy Storage / UPS
1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites
1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature
1. According to DIN-40742 and IEC-61427 standards, 20 years design life
2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.
Normal Voltage
|
2V
|
||
Capacity
|
2000Ah @ 10hr to 1.80V @ 25˚C(77˚F)
|
||
Weight
|
154.5 kg (340.61 lbs)
|
||
Dimensions
|
Length: 399 mm (15.71 in)
Width: 214 mm (8.43 in)
Height: 772 mm (30.39 in)
Total height: 804 mm (31.65 in)
|
||
Internal Resistance (full charged)
|
0.22 mΩ @ 25˚C(77˚F)
|
||
Short- circuit current
|
8903A
|
||
Self Discharge @25˚C(77˚F)
|
Less than 4% after 28 days storage
|
||
|
Discharge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Charge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Storage: -5˚C ~ 40˚C(41˚F ~ 104˚F)
|
||
Recommended Operating Temperature
|
20˚C ~ 25˚C (68˚F ~ 77˚F)
|
||
Recommended Charging Current
|
300A
|
||
Charging Voltage @25˚C(77˚F)
|
Float: 2.23 V/cell
Equalize: 2.35 V/cell
|
||
Terminal
|
M10
|
||
|
105 % @ 40˚C
74 % @ 0˚C
50 % @ -20˚
|
||
Design life @25°C
|
20 years
|
