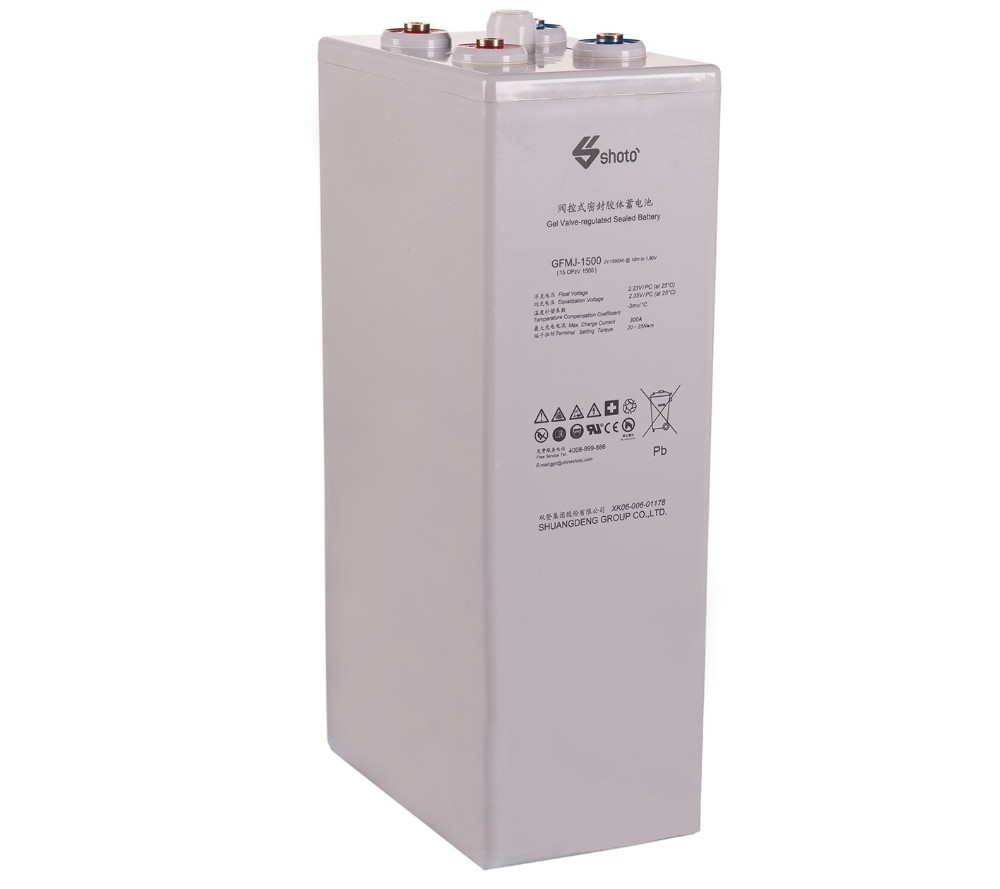

VRLA Maintenance Free Sealed Lead Acid Deep Cycle Gel Battery 1500AH 2V M10

Main Applications

1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites

Benefits

1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature

Technical Features

1. According to DIN-40742 and IEC-61427 standards, 20 years design life

2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.

Normal Voltage		2V
Capacity		1500Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		111 kg (244.71 lbs)
Dimensions		Length: 340 mm (13.39 in) Width: 210 mm (8.27 in) Height: 645 mm (25.39 in) Total height: 677 mm (26.65 in)
Internal Resistance (full charged)		0.23 mΩ @ 25˚C(77˚F)
Short- circuit current		8873A
Self Discharge @25˚C(77˚F)		Less than 4% after 28 days storage
Operating Temperature Range		Discharge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Charge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Storage: -5˚C ～ 40˚C(41˚F ～ 104˚F)
Recommended Operating Temperature		20˚C ～ 25˚C (68˚F ～ 77˚F)
Recommended Charging Current		225A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Equalize: 2.35 V/cell
Terminal		M10
Capacity Affected by Temperature		105 % @ 40˚C 74 % @ 0˚C 50 % @ -20˚
Design life @25°C		20 years





Technical Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
