12V 170Ah Sealed Lead Carbon Front Terminal Battery M6 For Energy Storage

Minimum Order Quantity : 1PCS Price : $286/pcs
Brand Name: SHOTO Model Number: FTC-170

Detail Information

Model Number: FTC-170 Nominal Capacity: 170AH
Weight: 58KG Voltage: 12V
Size: 552*125*310/310 Mm Application: Telecom / Energy Storage / UPS
Color: Grey Type: Gel Battery
Product Name: 12V 170AH Lead Carbon Battery Terminal: M6
High Light:

170Ah Front Terminal Battery

,

12V M6 Lead Carbon Front Terminal Battery

,

170Ah lead carbon battery 12v

Product Description

Product Description

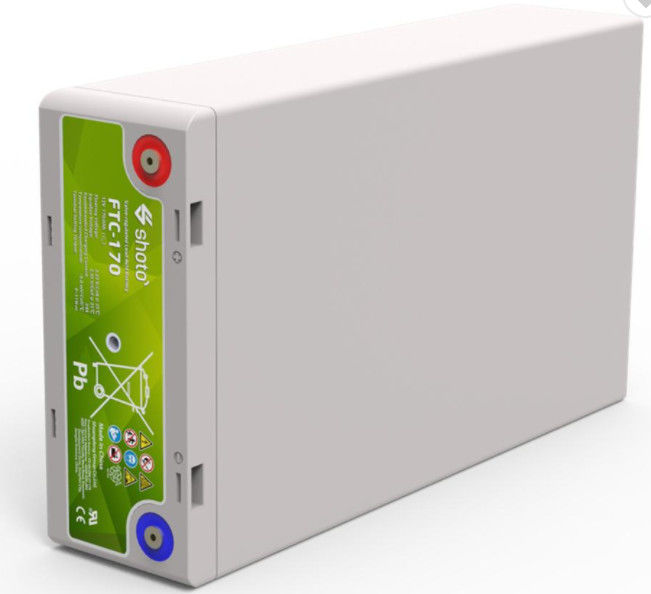

Shoto FTC - 170 VRLA Maintenance - free Sealed Lead Carbon Front Terminal Battery for Telecom / Energy Storage / UPS





Main Applications

1. Renewable energy (wind & solar) site
2. Off-grid & bad-grid environment
3. Communication and signal systems
4. UPS and emergency illumination

5. IDC

Benefits

1. Reduce operational cost (less cooling consumption)
2. Reduce CO2 emission
3. Deep cycle rate life≥1500 (at 25°C, 60%DOD) &1350 (at 35°C, 60%DOD)
4. Good floating life performance and extremely high cyclic life

Technical Features

1. Best performance for continuous operation up to 35˚C

2. Using advanced lead carbon technology, reduce the cathode sulphation

3. Front terminal connections for fast and easy installation and maintenance

4. Horizontal structure design, delay electrolyte stratification, extend battery service life





12V 170Ah Sealed Lead Carbon Front Terminal Battery M6 For Energy Storage 0
Normal Voltage
12V
Capacity
170Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
58 kg (127.87 lbs)

Dimensions
Length: 552 mm
Width: 125 mm
Height: 310 mm
Total height: 310 mm
Internal Resistance (full charged)
5.2 mΩ
Short-circuit Current
1804A
Self Discharge @25˚C(77˚F)
Less than 4% after 30 days storage

Operating Temperature Range
Discharge: -40˚C ~ 65˚C(-40˚F ~ 149˚F)
Charge: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Storage: -20˚C ~ 40˚C(-4˚F ~ 104˚F)
Recommended Operating Temperature
15˚C ~ 35˚C (59˚F ~ 95˚F)
Recommended Charging Current
51 A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
15 years
