VRLA Maintenance Free Sealed Lead Acid Deep Cycle Gel Battery 1500AH 2V M10
Contact Person : Vic
Phone Number : +8618371595888
WhatsApp : +8618371595888
Detail Information |
|||
Model Number: | GFMJ-490 | Nominal Capacity: | 490AH |
---|---|---|---|
Weight: | 37.5kg | Voltage: | 2V |
Size: | 166*206*470/502mm | Application: | Telecom / Energy Storage / Electrical System |
Type: | Gel Lead Acid Battery | Product Name: | 2V 490AH Gel Battery |
Terminal: | M10 | ||
High Light: | 490AH Deep Cycle Gel Battery,DIN40742 Deep Cycle Gel Battery,490AH maintenance free sealed battery |
Product Description
Product Description

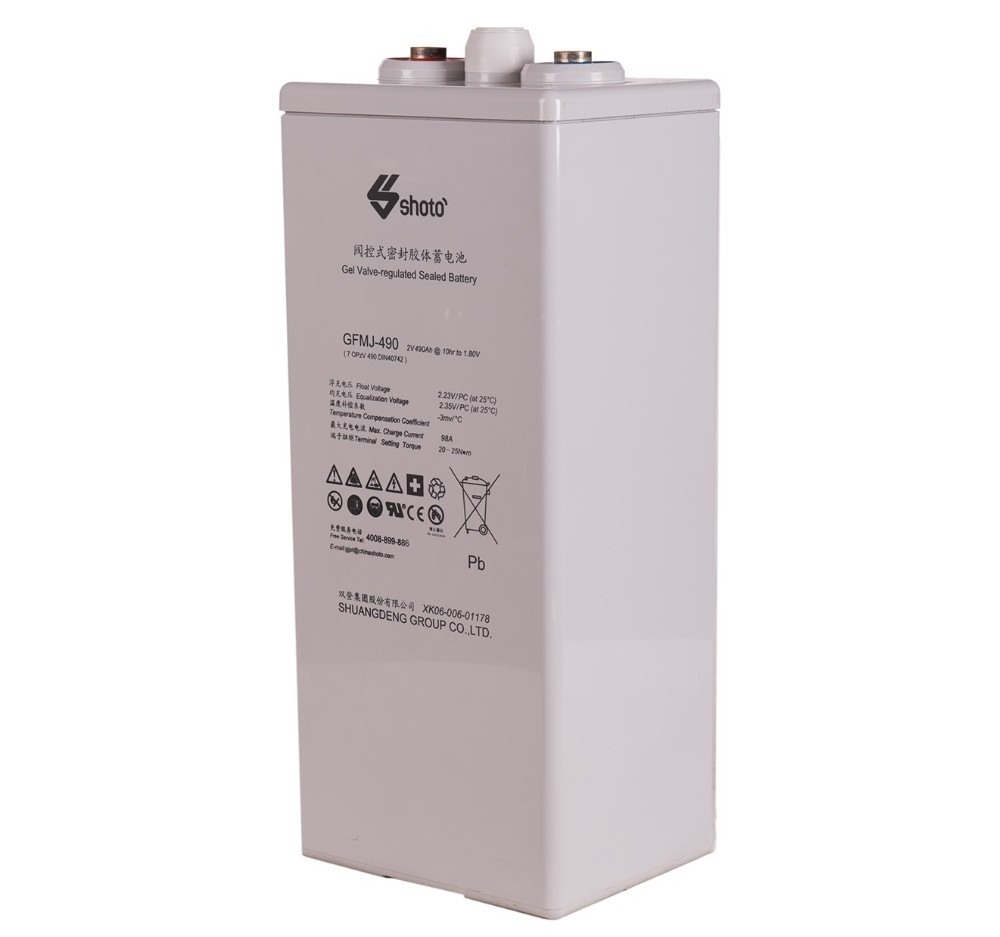

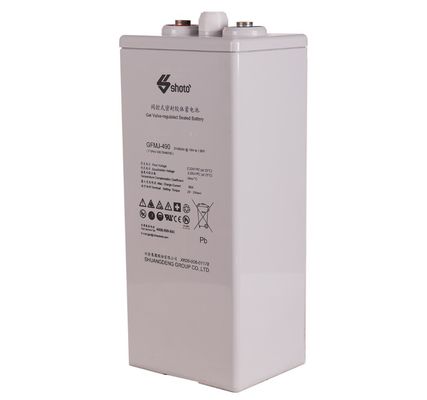

Shoto GFMJ - 490 VRLA Maintenance - free Sealed Lead - acid Gel Battery for Telecom / Energy Storage / UPS
1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites
1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature
1. According to DIN-40742 and IEC-61427 standards, 20 years design life
2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.
Normal Voltage
|
2V
|
||
Capacity
|
490Ah @ 10hr to 1.80V @ 25˚C(77˚F)
|
||
Weight
|
37.5 kg (82.67 lbs)
|
||
Dimensions
|
Length: 166 mm (6.54 in)
Width: 206 mm (8.11 in)
Height: 470 mm (18.5 in)
Total height: 502 mm (19.76 in)
|
||
Internal Resistance (full charged)
|
0.38 mΩ @ 25˚C(77˚F)
|
||
Short- circuit current
|
5195A
|
||
Self Discharge @25˚C(77˚F)
|
Less than 4% after 28 days storage
|
||
|
Discharge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Charge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Storage: -5˚C ~ 40˚C(41˚F ~ 104˚F)
|
||
Recommended Operating Temperature
|
20˚C ~ 25˚C (68˚F ~ 77˚F)
|
||
Recommended Charging Current
|
73.5A
|
||
Charging Voltage @25˚C(77˚F)
|
Float: 2.23 V/cell
Equalize: 2.35 V/cell
|
||
Terminal
|
M10
|
||
|
105 % @ 40˚C
74 % @ 0˚C
50 % @ -20˚
|
||
Design life @25°C
|
20 years
|
