IDC Front Terminal Lead Carbon Deep Cycle Battery 1000AH 12 Volt Maintenance Free

Minimum Order Quantity : 1PCS Price : $182/pcs
Brand Name: SHOTO Model Number: FTC-100

Detail Information

Model Number: FTC-100 Nominal Capacity: 1000AH
Weight: 35.5KG Size: 400*110*286/286 Mm
Voltage: 12V Application: Telecom / Energy Storage / UPS
Color: Grey Type: Gel Battery
Product Name: 12V 100AH Lead Carbon Battery Terminal: M6
High Light:

IDC Lead Carbon Deep Cycle Battery

,

1000AH Lead Carbon Deep Cycle Battery

,

1000AH 12 volt maintenance free battery

Product Description

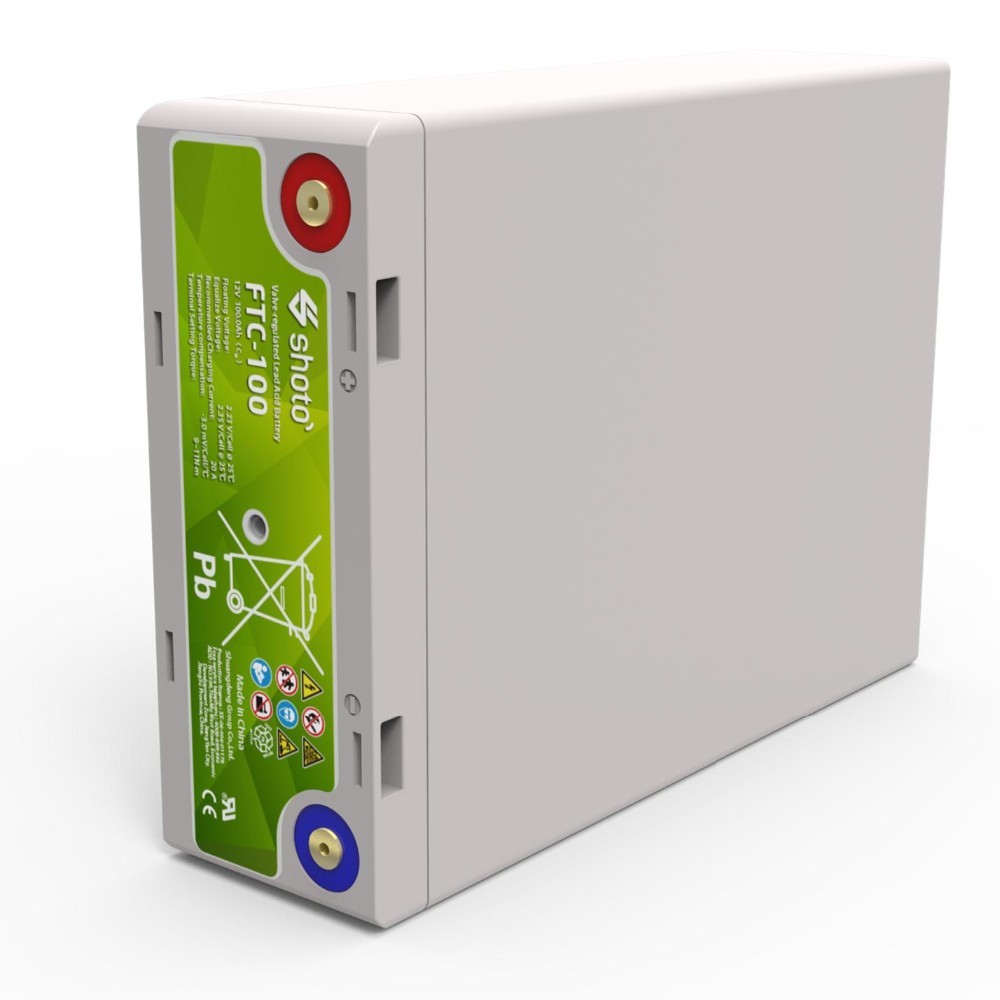

Shoto FTC - 100 VRLA Maintenance - free Sealed Lead Carbon Front Terminal Battery for Telecom / Energy Storage / UPS



Product Description





Main Applications

1. Renewable energy (wind & solar) site
2. Off-grid & bad-grid environment
3. Communication and signal systems
4. UPS and emergency illumination

5. IDC

Benefits

1. Reduce operational cost (less cooling consumption)
2. Reduce CO2 emission
3. Deep cycle rate life≥1500 (at 25°C, 60%DOD) &1350 (at 35°C, 60%DOD)
4. Good floating life performance and extremely high cyclic life

Technical Features

1. Best performance for continuous operation up to 35˚C

2. Using advanced lead carbon technology, reduce the cathode sulphation

3. Front terminal connections for fast and easy installation and maintenance

4. Horizontal structure design, delay electrolyte stratification, extend battery service life





IDC Front Terminal Lead Carbon Deep Cycle Battery 1000AH 12 Volt Maintenance Free 0
Normal Voltage
12V
Capacity
100Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
35.5 kg (78.26 lbs)

Dimensions
Length: 400 mm
Width: 110 mm
Height: 286 mm
Total height: 286 mm
Internal Resistance (full charged)
5.5 mΩ
Short-circuit Current
1659A
Self Discharge @25˚C(77˚F)
Less than 4% after 30 days storage

Operating Temperature Range
Discharge: -40˚C ~ 65˚C(-40˚F ~ 149˚F)
Charge: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Storage: -20˚C ~ 40˚C(-4˚F ~ 104˚F)
Recommended Operating Temperature
15˚C ~ 35˚C (59˚F ~ 95˚F)
Recommended Charging Current
30 A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
15 years
