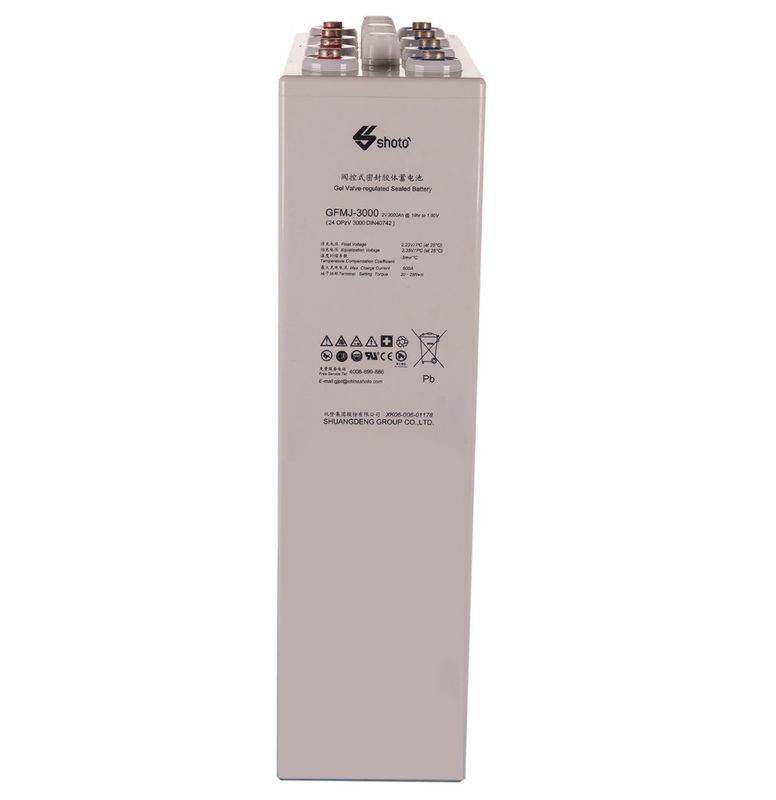

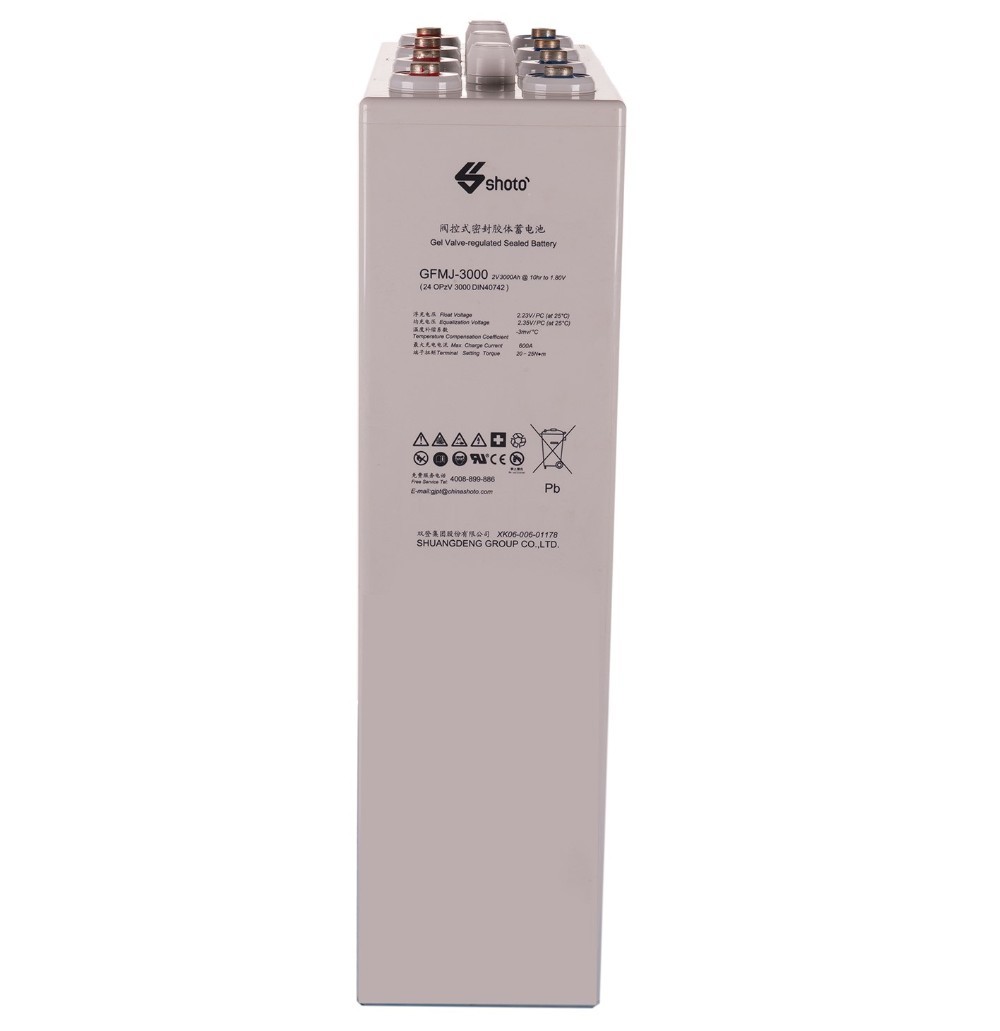

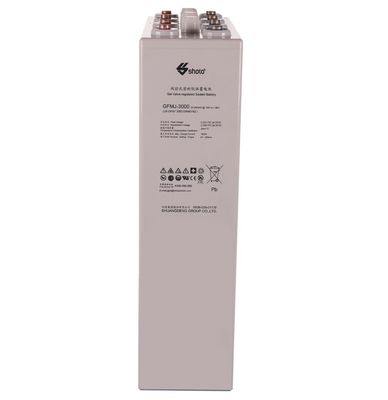

UPS 2v 3000ah Gel Battery Valve Regulated Lead Acid Gel Battery Long Cycle life

Minimum Order Quantity : 1PCS Price : $1161/pcs
Brand Name: SHOTO Model Number: GFMJ-3000

Detail Information

Model Number: GFMJ-3000 Nominal Capacity: 3000ah
Weight: 222kg Size: 576*212*772/804mm
Voltage: 2V Application: Telecom / Energy Storage / Electrical System
Color: Grey Type: Gel Lead Acid Battery
Product Name: 2V 3000AH Gel Battery Terminal: M10
High Light:

UPS 2v 3000ah Gel Battery

,

3000ah Valve Regulated Lead Acid Gel Battery

,

2v 3000ah gel battery

Product Description

Product Description



Shoto GFMJ - 3000 VRLA Maintenance - free Sealed Lead - acid Gel Battery for Telecom / Energy Storage / UPS





Main Applications

1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites

Benefits

1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature

Technical Features

1. According to DIN-40742 and IEC-61427 standards, 20 years design life

2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.





UPS 2v 3000ah Gel Battery Valve Regulated Lead Acid Gel Battery Long Cycle life 0
Normal Voltage
2V
Capacity
3000Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
222 kg (489.43 lbs)

Dimensions
Length: 576 mm (22.68 in)
Width: 212 mm (8.35 in)
Height: 772 mm (30.39 in)
Total height: 804 mm (31.65 in)
Internal Resistance (full charged)
0.21 mΩ @ 25˚C(77˚F)
Short- circuit current
9360A
Self Discharge @25˚C(77˚F)
Less than 4% after 28 days storage

Operating Temperature Range
Discharge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Charge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Storage: -5˚C ~ 40˚C(41˚F ~ 104˚F)
Recommended Operating Temperature
20˚C ~ 25˚C (68˚F ~ 77˚F)
Recommended Charging Current
450A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Equalize: 2.35 V/cell
Terminal
M10

Capacity Affected by Temperature
105 % @ 40˚C
74 % @ 0˚C
50 % @ -20˚
Design life @25°C
20 years
