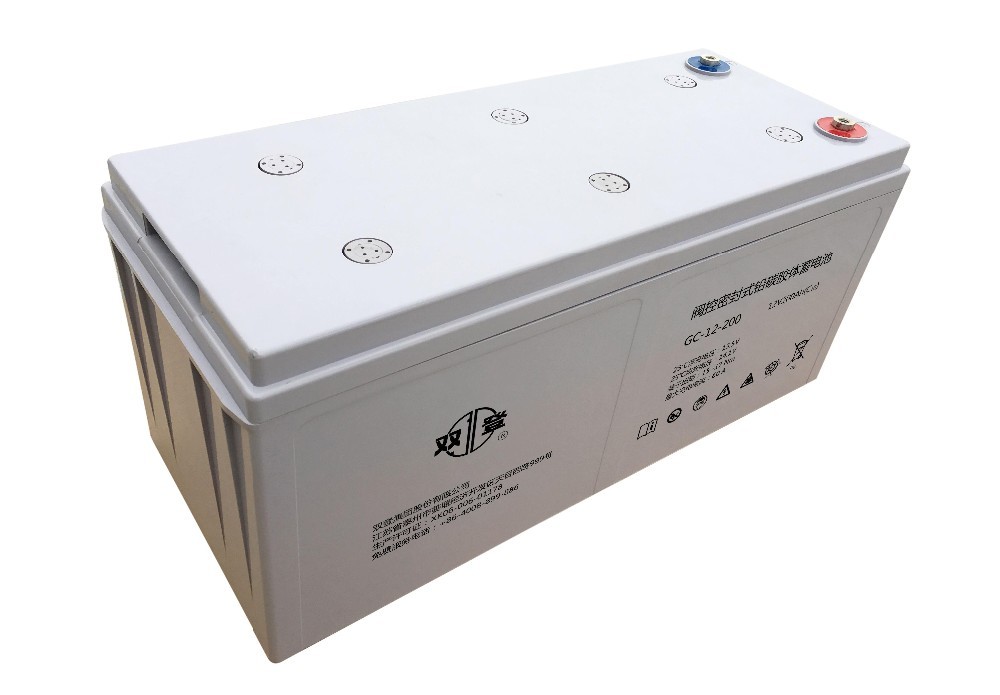

Sealed Lead Acid 12V 200AH Deep Cycle Gel Battery M8 Terminal For Telecom

Name: Sealed Lead Acid 12V 200AH Deep Cycle Gel Battery M8 Terminal For Telecom
Brand: SHOTO
SKU: GC-12-200
Price: 330 USD
Availability: InStock
Rating: 4.8 (159 reviews)

Minimum Order Quantity :	1PCS	Price :	$330/pcs

Brand Name:	SHOTO	Model Number:	GC-12-200

Detail Information
Model Number:	GC-12-200	Nominal Capacity:	200AH
Weight:	58KG	Voltage:	12V
Size:	511212225/232mm	Application:	Telecom / Energy Storage / UPS
Color:	Grey	Type:	Gel Battery
Product Name:	12V 200AH Lead Acid Battery	Terminal:	M8
High Light:	M8 12V 200AH Deep Cycle Gel Battery , M8 Terminal deep cycle gel battery , M8 200AH sealed lead acid gel battery

Product Description

Product Description

Shoto GC - 12 - 200 VRLA Maintenance - free Lead - acid Gel - Carbon Battery for Telecom / Energy Storage / UPS

Main Applications

1. Standby and cycling application

2. Solar & wind energy storage system
3. Poor-grid & Unreliable-grid hybrid sites

Benefits

1. Design life is more than 12 years

2. Superior deep cycling performance
3. Lifetime maintenance free, Low annual operating cost, reduced 30% TCO

Technical Features

1. Adopt lead carbon technology
2. Special gel electrolyte without flowing to avoid acid stratification and can prolong service life
3. Excellent deep cycling performance
4. Excellent charging and discharging ability in low current

Normal Voltage		12V
Capacity		200Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		58 kg
Dimensions		Length: 511 mm Width: 212 mm Height: 225 mm Total height: 232 mm
Internal Resistance (full charged)		3.1 mΩ
Short-circuit Current		1240A
Self Discharge @25˚C(77˚F)		Less than 8% after 90 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Maximum Charging Current Limited		60 A
Charging Voltage @25˚C(77˚F)		Float: 2.25 V/cell Cycle: 2.35 V/cell
Terminal		M8
Capacity Affected by Temperature		105 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
