Home ProductsDeep Cycle Gel BatteryFTC-150 VRLA Front Terminal Deep Cycle Gel Battery 12v Lead Carbon Battery 150AH

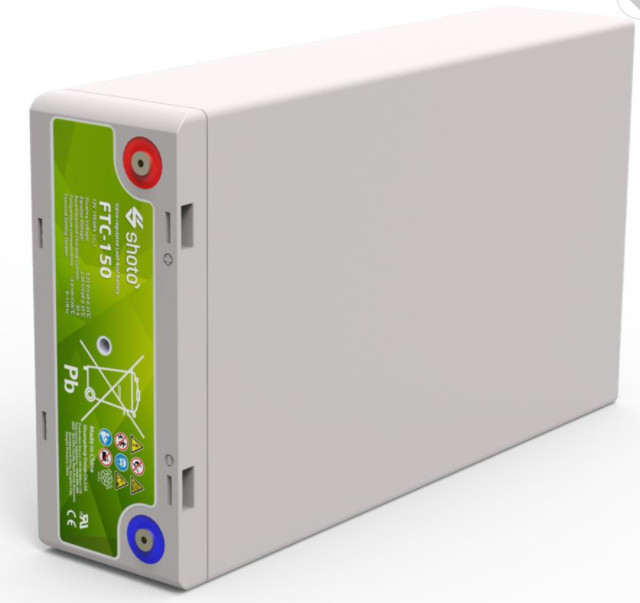

FTC-150 VRLA Front Terminal Deep Cycle Gel Battery 12v Lead Carbon Battery 150AH
FTC-150 VRLA Front Terminal Deep Cycle Gel Battery 12v Lead Carbon Battery 150AH
Contact Now

FTC-150 VRLA Front Terminal Deep Cycle Gel Battery 12v Lead Carbon Battery 150AH

Minimum Order Quantity : 1PCS Price : $268/Ppcs
Brand Name: SHOTO Model Number: FTC-150

Detail Information
Model Number: FTC-150 Nominal Capacity: 150AH
Weight: 56KG Voltage: 12V
Size: 552*125*286/310 Mm Application: Telecom / Energy Storage / UPS
Color: Grey Type: Gel Battery
Product Name: 12V 150AH Lead Carbon Battery Terminal: M6
High Light:

FTC-150 Deep Cycle Gel Battery

,

VRLA M6 12v 150AH Deep Cycle Gel Battery

,

FTC-150 150AH 12v Lead Carbon Battery

Product Description

Product Description



Shoto FTC - 150 VRLA Maintenance - free Sealed Lead Carbon Front Terminal Battery for Telecom / Energy Storage / UPS





Normal Voltage
12V
Capacity
150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
56 kg (123.46 lbs)

Dimensions
Length: 552 mm
Width: 125 mm
Height: 310 mm
Total height: 310 mm
Internal Resistance (full charged)
5.5 mΩ
Short-circuit Current
1659A
Self Discharge @25˚C(77˚F)
Less than 4% after 30 days storage

Operating Temperature Range
Discharge: -40˚C ～ 65˚C(-40˚F ～ 149˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 35˚C (59˚F ～ 95˚F)
Recommended Charging Current
45 A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
15 years





Main Applications

1. Renewable energy (wind & solar) site
2. Off-grid & bad-grid environment
3. Communication and signal systems
4. UPS and emergency illumination

5. IDC

Benefits

1. Reduce operational cost (less cooling consumption)
2. Reduce CO2 emission
3. Deep cycle rate life≥1500 (at 25°C, 60%DOD) &1350 (at 35°C, 60%DOD)
4. Good floating life performance and extremely high cyclic life

Technical Features

1. Best performance for continuous operation up to 35˚C

2. Using advanced lead carbon technology, reduce the cathode sulphation

3. Front terminal connections for fast and easy installation and maintenance

4. Horizontal structure design, delay electrolyte stratification, extend battery service life
