Grey 800AH Deep Cycle Gel Battery Maintenance Free Lead Acid IEC61427 For UPS

Minimum Order Quantity : 1PCS Price : $326/pcs
Brand Name: SHOTO Model Number: GFMJ-800

Detail Information

Model Number: GFMJ-800 Nominal Capacity: 800AH
Weight: 62KG Size: 191*210*645/677mm
Application: Telecom / Energy Storage / Electrical System Voltage: 2V
Color: Grey Battery Type: Gel Battery
Product Name: 2V 800AH Gel Battery Terminal: M10
Highlight:

800AH Deep Cycle Gel Battery

,

IEC61427 Deep Cycle Gel Battery

,

IEC61427 ups gel battery

Product Description

Product Description

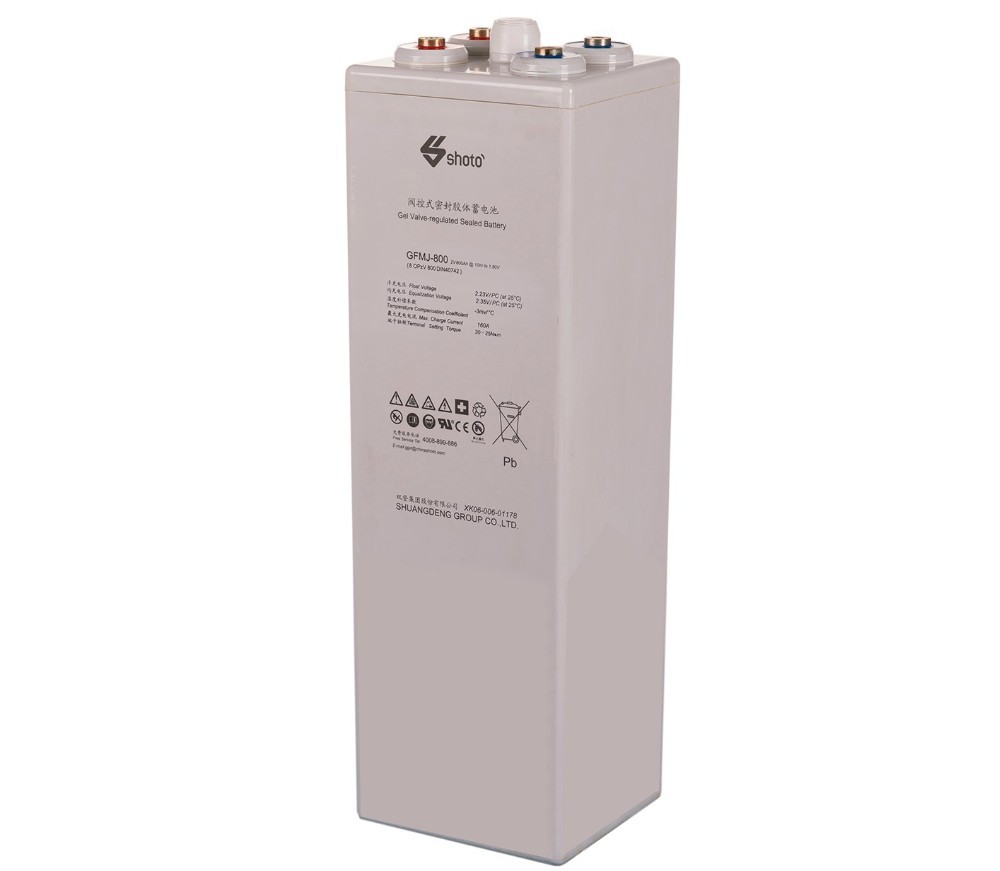

Shoto GFMJ - 800 VRLA Maintenance - free Sealed Lead - acid Gel Battery for Telecom / Energy Storage / UPS





Main Applications

1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites

Benefits

1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature

Technical Features

1. According to DIN-40742 and IEC-61427 standards, 20 years design life

2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.



Grey 800AH Deep Cycle Gel Battery Maintenance Free Lead Acid IEC61427 For UPS 0
Normal Voltage
2V
Capacity
800Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
62 kg (136.69 lbs)

Dimensions
Length: 191 mm (7.52 in)
Width: 210 mm (8.27 in)
Height: 645 mm (25.39 in)
Total height: 677 mm (26.65 in)
Internal Resistance (full charged)
0.32 mΩ @ 25˚C(77˚F)
Short- circuit current
6297A
Self Discharge @25˚C(77˚F)
Less than 4% after 28 days storage

Operating Temperature Range
Discharge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Charge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Storage: -5˚C ~ 40˚C(41˚F ~ 104˚F)
Recommended Operating Temperature
20˚C ~ 25˚C (68˚F ~ 77˚F)
Recommended Charging Current
120A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Equalize: 2.35 V/cell
Terminal
M10

Capacity Affected by Temperature
105 % @ 40˚C
74 % @ 0˚C
50 % @ -20˚
Design life @25°C
20 years
