Sealed 250ah Deep Cycle Gel Battery Maintenance Free 37.5A Charging Current

Minimum Order Quantity : 1PCS Price : $125/pcs
Brand Name: SHOTO Model Number: GFMJ-250

Detail Information

Model Number: GFMJ-250 Nominal Capacity: 250AH
Weight: 21.5KG Size: 124*206*354/386mm
Voltage: 2V Application: Telecom / Energy Storage / Electrical System
Battery Type: Gel Battery Product Name: 2V 250AH Gel Battery
Terminal: M10
High Light:

250ah Deep Cycle Gel Battery

,

Sealed 37.5A Deep Cycle Gel Battery

,

Maintenance Free 250ah gel battery

Product Description

Product Description

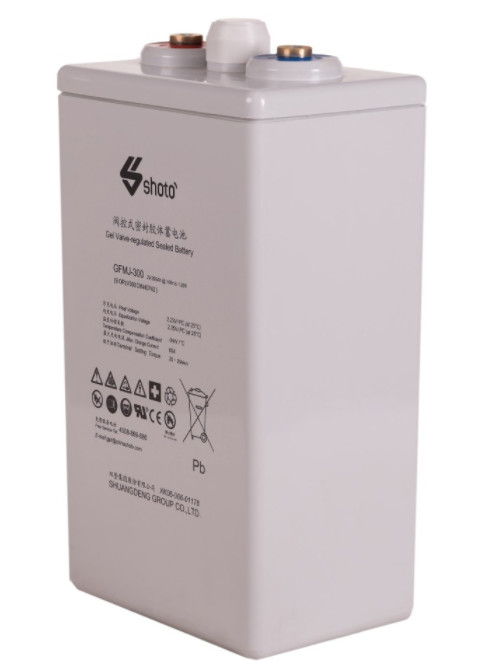

Shoto GFMJ - 250 VRLA Maintenance - free Sealed Lead - acid Gel Battery for Telecom / Energy Storage / UPS





Main Applications

1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites

Benefits

1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature

Technical Features

1. According to DIN-40742 and IEC-61427 standards, 20 years design life

2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.



Normal Voltage
2V
Capacity
250Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
21.5 kg (47.40 lbs)

Dimensions
Length: 124 mm (4.88 in)
Width: 206 mm (8.11 in)
Height: 354 mm (13.94 in)
Total height: 386 mm (15.20 in)
Internal Resistance (full charged)
0.62 mΩ @ 25˚C(77˚F)
Short- circuit current
3215A
Self Discharge @25˚C(77˚F)
Less than 4% after 28 days storage

Operating Temperature Range
Discharge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Charge: -20˚C ~ 50˚C(-4˚F ~ 122˚F)
Storage: -5˚C ~ 40˚C(41˚F ~ 104˚F)
Recommended Operating Temperature
20˚C ~ 25˚C (68˚F ~ 77˚F)
Recommended Charging Current
37.5A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Equalize: 2.35 V/cell
Terminal
M10

Capacity Affected by Temperature
105 % @ 40˚C
74 % @ 0˚C
50 % @ -20˚
Design life @25°C
20 years
