Sealed Front Terminal Battery 10A Charging Current 50Ah Deep Cycle Battery M6

Name: Sealed Front Terminal Battery 10A Charging Current 50Ah Deep Cycle Battery M6
Brand: shoto
SKU: 6-FMX-50
Price: 1 USD
Availability: InStock
Rating: 4.5 (170 reviews)

Minimum Order Quantity :	1PCS

Brand Name:	shoto	Model Number:	6-FMX-50

Detail Information
Nominal Capacity:	50Ah	Weight:	17.8kg
Sealed Type:	Sealed	Voltage:	12V
Application:	Telecom / Energy Storage / UPS	Capacity:	50Ah 10hr Rate
Terminal:	M6	Model Number:	6-FMX-50
Size:	390105200/200mm	Product Name:	12V 50AH Lead Acid Battery
High Light:	6-FMX-50 50Ah Sealed Front Terminal Battery , M6 10A Front Terminal Battery , M6 Sealed 50Ah Deep Cycle Battery

Product Description

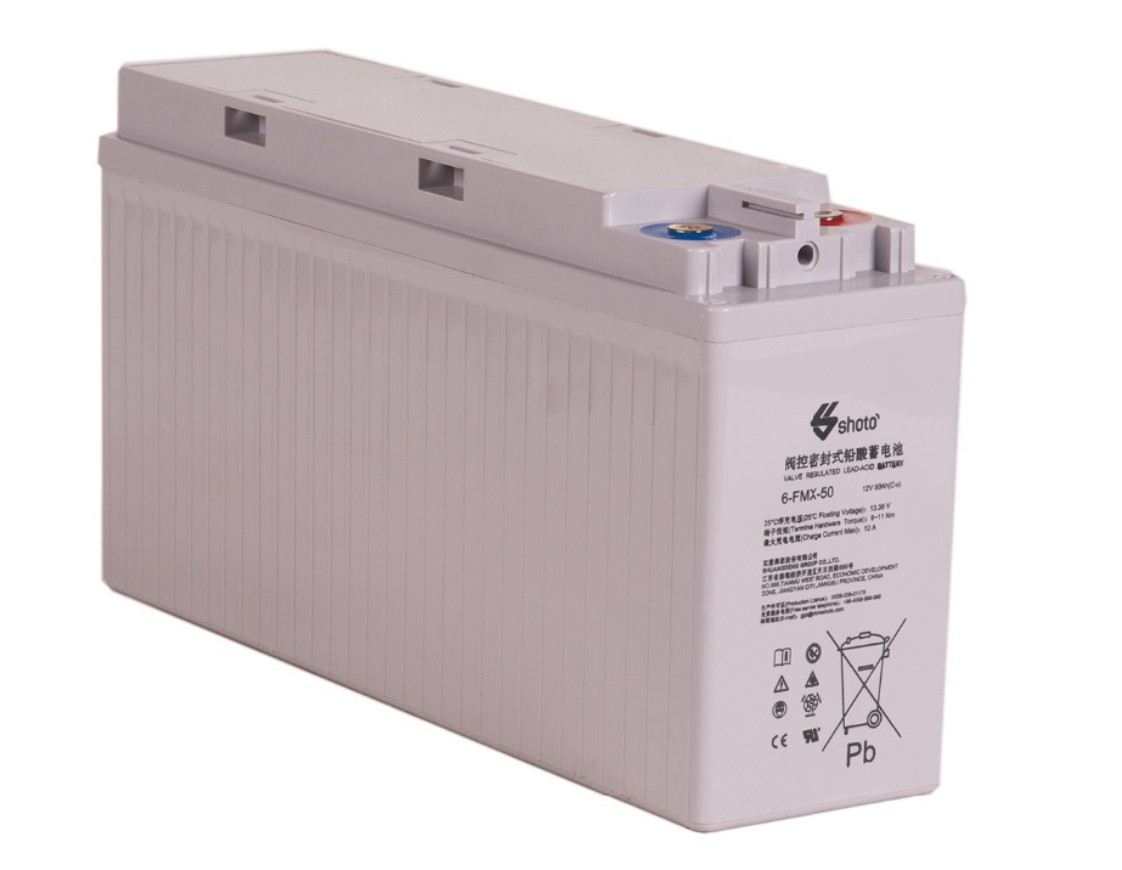

Shoto 6 - FMX - 50 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		50Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		17.8 kg (39.24 lbs)
Dimensions		Length: 390 mm Width: 105 mm Height: 200 mm Total Height: 200mm
Internal Resistance (full charged)		6.4 mΩ
Short-circuit Current		1426 A
Self Discharge @25˚C(77˚F)		Less than 4% after 30 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		10 A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		103 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Main Applications

1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS

Benefits

1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation

Technical Features

1. Excellent capacity retention rate

2. Long life oat service design

3. Excellent over discharge recovery

4. capabilityc

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
