12V 170AH High Capacity Lead Acid Battery VRLA M6 Terminal for Energy Storage

Name: 12V 170AH High Capacity Lead Acid Battery VRLA M6 Terminal for Energy Storage
Brand: SHOTO
SKU: 6-FMX-170
Rating: 5 (118 reviews)

Minimum Order Quantity :	1PCS	Supply Ability :	$240/pcs

Brand Name:	SHOTO	Model Number:	6-FMX-170

Detail Information
Model Number:	6-FMX-170	Nominal Capacity:	170Ah
Weight:	56kg	Size:	559125315/315mm
Application:	Telecom / Energy Storage / UPS	Color:	Grey
Product Name:	12V 170AH Lead Acid Battery
Highlight:	12V 170AH High Capacity Lead Acid Battery , VRLA 170AH high capacity lead acid battery , 170AH VRLA lead acid battery

Product Description

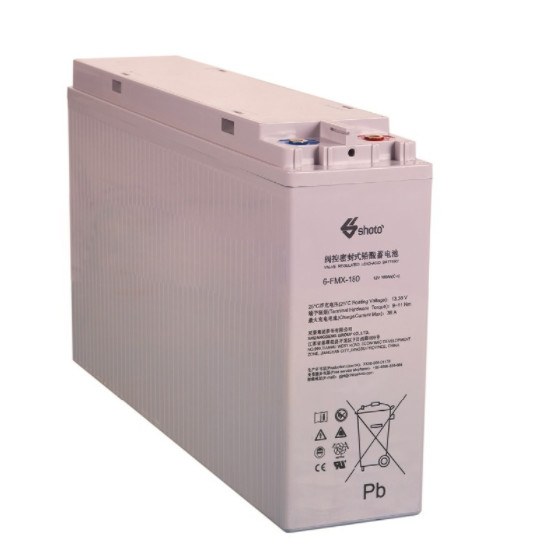

Shoto 6 - FMX - 170 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		170Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		56 kg (123.46 lbs)
Dimensions		Length: 559 mm Width: 125 mm Height: 315 mm Total Height: 315 mm
Internal Resistance (full charged)		3.5 mΩ
Short-circuit Current		2607 A
Self Discharge @25˚C(77˚F)		Less than 4% after 30 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		34 A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		103 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Main Applications

1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS

Benefits

1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation

Technical Features

1. Excellent capacity retention rate

2. Long life oat service design

3. Excellent over discharge recovery

4. capability

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
