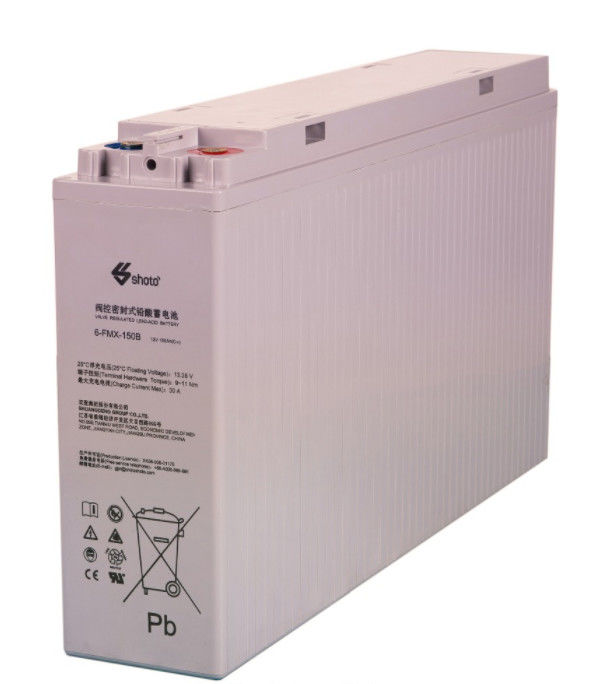

150Ah VRLA Front Terminal Batteries Lead Acid Long Lasting Deep Cycle Battery 12v 48kg

Name: 150Ah VRLA Front Terminal Batteries Lead Acid Long Lasting Deep Cycle Battery 12v 48kg
Brand: SHOTO
SKU: 6-FMX-150B
Price: 1 USD
Availability: InStock
Rating: 4.8 (162 reviews)

Minimum Order Quantity :	1PCS

Brand Name:	SHOTO	Model Number:	6-FMX-150B

Detail Information
Model Number:	6-FMX-150	Nominal Capacity:	150Ah
Weight:	48kg	Size:	549110310/310mm
Application:	Telecom / Energy Storage / UPS	Color:	Grey
Capacity:	150Ah 10hr Rate	Product Name:	12V 150AH Lead Acid Battery
Terminal:	M6
High Light:	M6 150Ah VRLA Front Terminal Batteries , 150Ah 12v VRLA Front Terminal Batteries , 150Ah Long Lasting Deep Cycle Battery

Product Description

Shoto 6 - FMX - 150B VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		48 kg (105.82 lbs)
Dimensions		Length: 549 mm Width: 110 mm Height: 310 mm Total Height: 310 mm
Internal Resistance (full charged)		4.2 mΩ
Short-circuit Current		2173 A
Self Discharge @25˚C(77˚F)		Less than 4% after 30 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		30 A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		103 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Main Applications

1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS

Benefits

1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation

Technical Features

1. Excellent capacity retention rate

2. Long life oat service design

3. Excellent over discharge recovery

4. capability

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
