T11 Valve Regulated Front Terminal Battery Sealed Lead Acid Battery 12v 200ah
Contact Person : Vic
Phone Number : +8618371595888
WhatsApp : +8618371595888
| Minimum Order Quantity : | 1PCS | Price : | $259/pcs |
|---|
| Brand Name: | SHOTO | Model Number: | 6-FMX-190 |
|---|
|
Detail Information |
|||
| Model Number: | 6-FMX-190 | Nominal Capacity: | 19Ah |
|---|---|---|---|
| Weight: | 58kg | Size: | 559*125*315/315mm |
| Voltage: | 12V | Application: | Telecom / Energy Storage / UPS |
| Color: | Grey | Product Name: | 12V 190AH Lead Acid Battery |
| Highlight: | 19Ah Front Terminal Battery,38A Front Terminal Battery,19Ah 12v maintenance free battery |
||
Product Description
Product Description

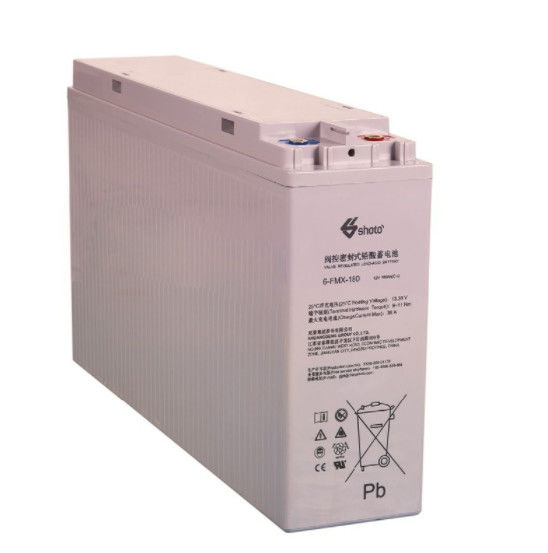

Shoto 6 - FMX - 190 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS
|
Normal Voltage
|
12V
|
||
|
Capacity
|
190Ah @ 10hr to 1.80V @ 25˚C(77˚F)
|
||
|
Weight
|
58 kg (127.87 lbs)
|
||
|
Dimensions
|
Length: 559 mm
Width: 125 mm
Height: 315 mm
Total Height: 315 mm
|
||
|
Internal Resistance (full charged)
|
3.4 mΩ
|
||
|
Short-circuit Current
|
2684 A
|
||
|
Self Discharge @25˚C(77˚F)
|
Less than 4% after 30 days storage
|
||
|
|
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
|
||
|
Recommended Operating Temperature
|
15˚C ～ 25˚C (59˚F ～ 77˚F)
|
||
|
Recommended Charging Current
|
38 A
|
||
|
Charging Voltage @25˚C(77˚F)
|
Float: 2.23 V/cell
Cycle: 2.35 V/cell
|
||
|
Terminal
|
M6
|
||
|
|
103 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
|
||
|
Design life @25°C
|
12 years
|
1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS
1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation
1. Excellent capacity retention rate
2. Long life oat service design
3. Excellent over discharge recovery
4. capability
Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)
Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)
Performance Curve
