UPS Sealed Lead Acid Front Terminal Battery 12V 150AH AGM Battery 6-FMX

Name: UPS Sealed Lead Acid Front Terminal Battery 12V 150AH AGM Battery 6-FMX
Brand: SHOTO
SKU: 6-FMX-150C
Price: 220 USD
Availability: InStock
Rating: 4.6 (151 reviews)

Minimum Order Quantity :	1PCS	Price :	$220/pcs

Brand Name:	SHOTO	Model Number:	6-FMX-150C

Detail Information
Model Number:	6-FMX-150C	Nominal Capacity:	150Ah
Weight:	52kg	Size:	549125310/310mm
Voltage:	12V	Color:	Grey
Product Name:	12V 150AH Lead Acid Battery	Terminal:	M6
High Light:	6-FMX Front Terminal Battery , 150AH Front Terminal Battery , 12V 150AH AGM Battery

Product Description

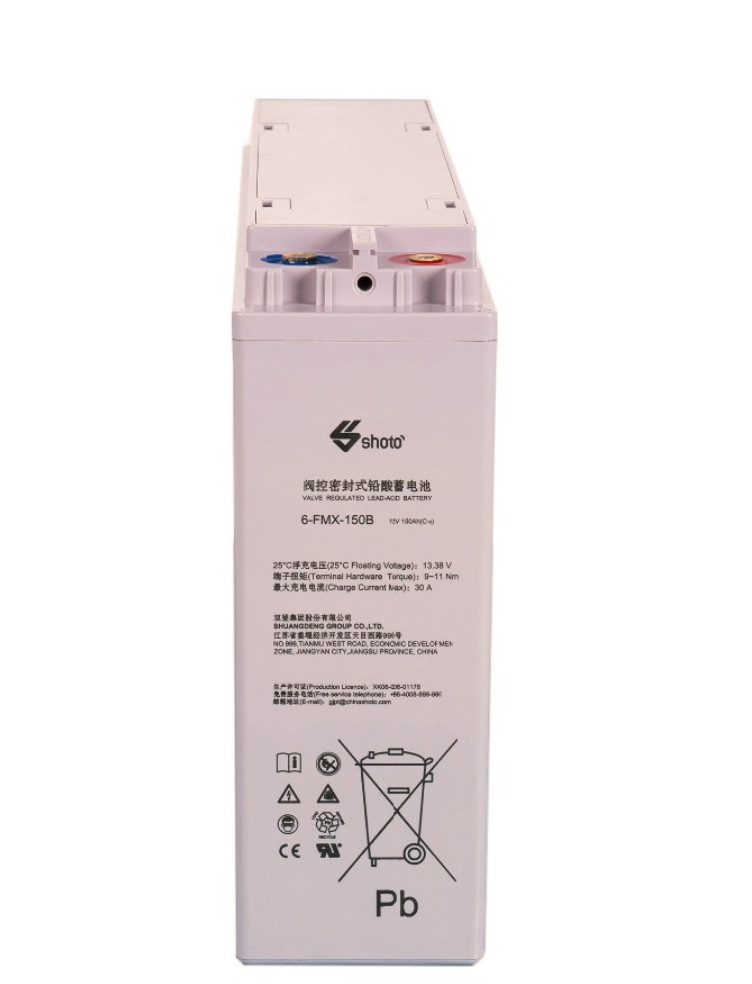

Shoto 6 - FMX - 150C VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		52 kg (114.64 lbs)
Dimensions		Length: 549 mm Width: 125 mm Height: 310 mm Total Height: 310 mm
Internal Resistance (full charged)		3.5 mΩ
Short-circuit Current		2607 A
Self Discharge @25˚C(77˚F)		Less than 4% after 30 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		30 A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		103 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Main Applications

1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS

Benefits

1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation

Technical Features

1. Excellent capacity retention rate

2. Long life oat service design

3. Excellent over discharge recovery

4. capability

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
