6-FMX Front Terminal Battery 150Ah 10hr Rate Telecom Battery Backup Systems

Name: 6-FMX Front Terminal Battery 150Ah 10hr Rate Telecom Battery Backup Systems
Brand: shoto
SKU: 6-FMX-150D
Price: 220 USD
Availability: InStock
Rating: 4.9 (160 reviews)

Minimum Order Quantity :	1PCS	Price :	$220/pcs

Brand Name:	shoto	Model Number:	6-FMX-150D

Detail Information
Model Number:	6-FMX-150D	Nominal Capacity:	150Ah
Weight:	43.5kg	Size:	549110288/288mm
Voltage:	12V	Usage:	Telecom, Energy Storage And UPS
Capacity:	150Ah 10hr Rate	Product Name:	12V 150AH Lead Acid Battery
Terminal:	M6
High Light:	10hr Rate Front Terminal Battery , 150Ah Front Terminal Battery , 6-FMX 150Ah Telecom Battery Backup Systems

Product Description

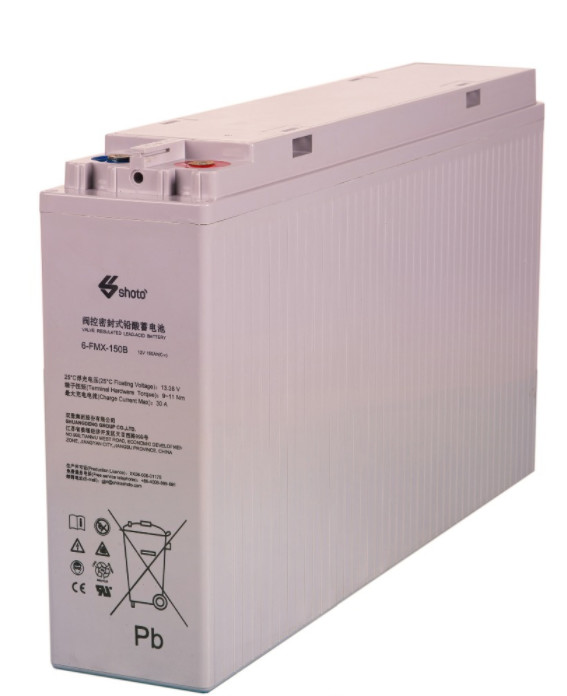

Shoto 6 - FMX - 150D VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		43.5 kg (95.9 lbs)
Dimensions		Length: 549 mm Width: 110 mm Height: 288 mm Total Height: 288 mm
Internal Resistance (full charged)		4.0 mΩ
Short-circuit Current		2282 A
Self Discharge @25˚C(77˚F)		Less than 4% after 30 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		30 A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		103 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Main Applications

1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS

Benefits

1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation

Technical Features

1. Excellent capacity retention rate

2. Long life oat service design

3. Excellent over discharge recovery

4. capability

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
