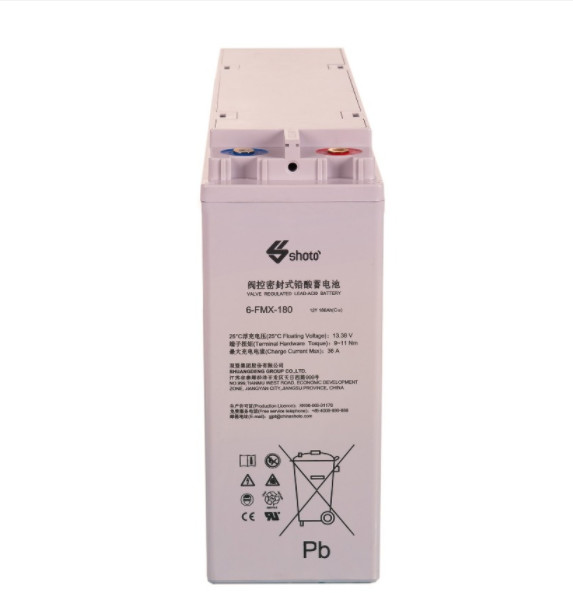

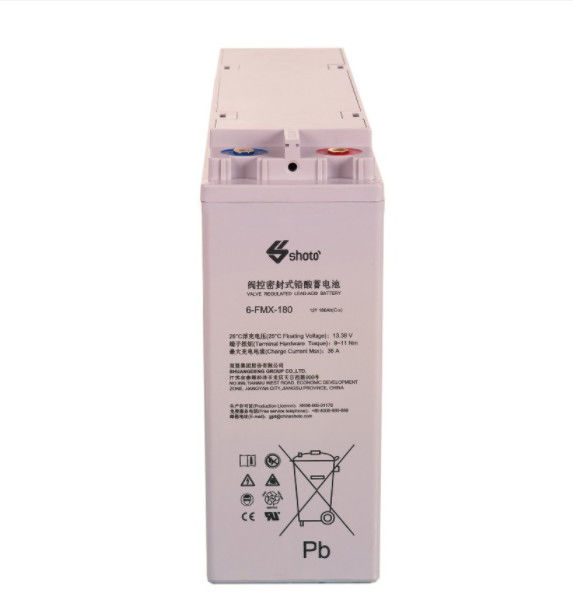

VRLA Front Terminal Agm Battery 12V 180Ah Long Cycle Life

Name: VRLA Front Terminal Agm Battery 12V 180Ah Long Cycle Life
Brand: SHOTO
SKU: 6-FMX-180
Price: 251 USD
Availability: InStock
Rating: 4.8 (154 reviews)

Minimum Order Quantity :	1PCS	Price :	$251/pcs

Brand Name:	SHOTO	Model Number:	6-FMX-180

Detail Information
Model Number:	6-FMX-180	Nominal Capacity:	180Ah
Weight:	57KG	Size:	559125315/315mm
Voltage:	12V	Application:	Telecom / Energy Storage / UPS
Color:	Grey	Product Name:	12V 180AH Lead Acid Battery
High Light:	VRLA Front Terminal Agm Battery , 180Ah Front Terminal Agm Battery , 6-FMX-180 180Ah long cycle life battery

Product Description

Shoto 6 - FMX - 180 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		180Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		57 kg (125.66 lbs)
Dimensions		Length: 559 mm Width: 125 mm Height: 315 mm Total Height: 315 mm
Internal Resistance (full charged)		3.5 mΩ
Short-circuit Current		2607 A
Self Discharge @25˚C(77˚F)		Less than 4% after 30 days storage
Operating Temperature Range		Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F) Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F) Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		36 A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		103 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		12 years

Main Applications

1. Telecom site
2. Outdoor base station
3. Floating operation site
4. UPS

Benefits

1. Front terminal design, easy access for faster installation and maintainence
2. Optimal energy density, save oor space
3. No leakage and no acid smog spray during the operation

Technical Features

1. Excellent capacity retention rate

2. Long life oat service design

3. Excellent over discharge recovery

4. capability

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
