High Pure Lead Gel Lead Acid Battery 2v 2000ah Battery 10hr Rate M10 Terminal

Minimum Order Quantity :	10pcs

Brand Name:	SHOTO

Detail Information

Highlight:

2000ah Gel Lead Acid Battery

2v 10hr Rate Gel Lead Acid Battery

M10 10hr Rate 2v 2000ah Battery

Product Description

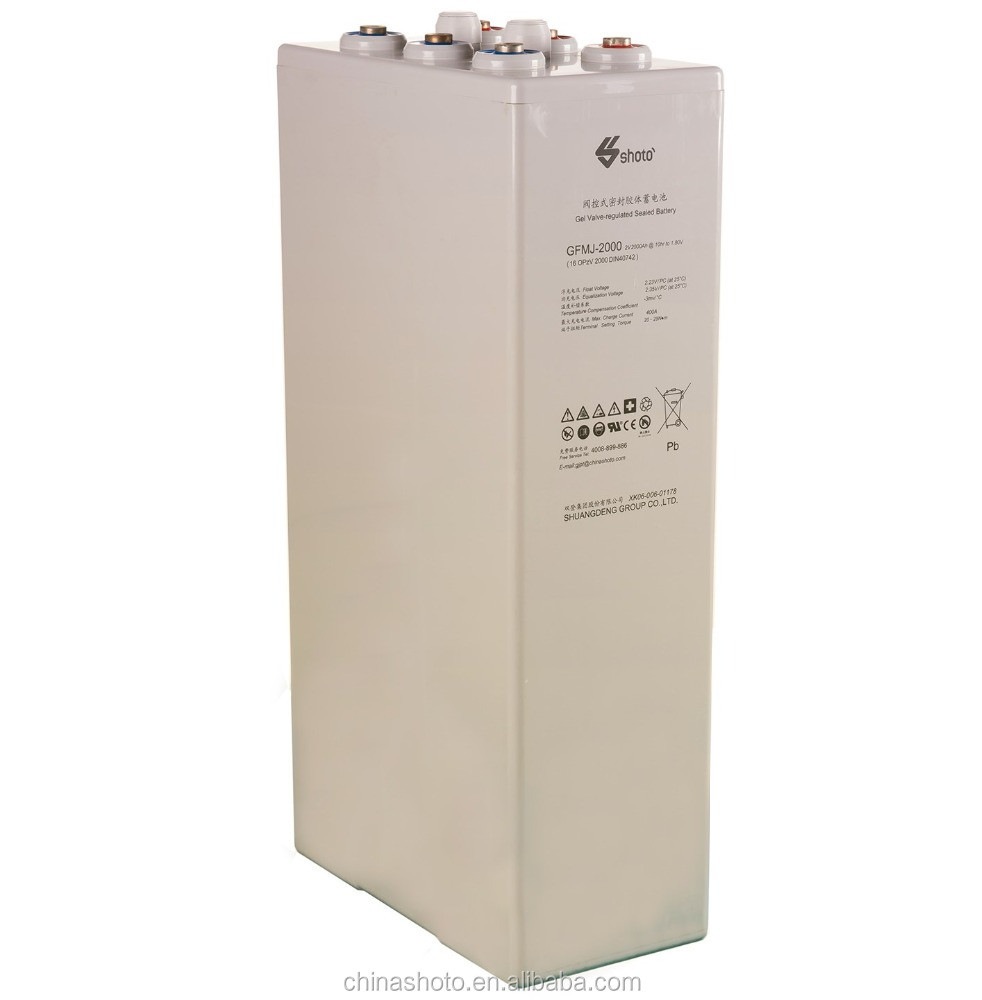

Shoto GFMJ - 2000 VRLA Maintenance - free Sealed Lead - acid Gel Battery

Quick Details

Brand Name:: Shoto

Model Number:: GFMJ-2000

Nominal Capacity:: 2000AH

Place of Origin:: Jiangsu, China

Weight:: 154.5KG

Maintenance Type:: Free

Voltage:: 2V

Size:: 399*214*772/804mm

Sealed Type:: Sealed

Usage:: Telecom, Energy Storage and Electrical System

Application:: Telecom / Energy Storage / Electrical System

Color:: Grey

Certificate:: CE / UL / ISO9001 / ISO14001

Battery type:: Gel Battery

Type:: Gel Lead Acid Battery

Product name:: 2V 2000AH Gel Battery

Capacity:: 2000Ah 10hr Rate

Material:: High Pure Lead

Terminal:: M10

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.

Port: Shanghai Port

Lead Time:: Shipped in 45 days after payment

Product Description

Shoto GFMJ - 2000 VRLA Maintenance - free Sealed Lead - acid Gel Battery for Telecom / Energy Storage / UPS

Normal Voltage		2V
Capacity		2000Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		154.5 kg (340.61 lbs)
Dimensions		Length: 399 mm (15.71 in) Width: 214 mm (8.43 in) Height: 772 mm (30.39 in) Total height: 804 mm (31.65 in)
Internal Resistance (full charged)		0.22 mΩ @ 25˚C(77˚F)
Short- circuit current		8903A
Self Discharge @25˚C(77˚F)		Less than 4% after 28 days storage
Operating Temperature Range		Discharge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Charge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Storage: -5˚C ～ 40˚C(41˚F ～ 104˚F)
Recommended Operating Temperature		20˚C ～ 25˚C (68˚F ～ 77˚F)
Recommended Charging Current		300A
Charging Voltage @25˚C(77˚F)		Float: 2.23 V/cell Equalize: 2.35 V/cell
Terminal		M10
Capacity Affected by Temperature		105 % @ 40˚C 74 % @ 0˚C 50 % @ -20˚
Design life @25°C		20 years

Main Applications

1. Deep cycling energy storage application
2. Solar& wind energy storage system
3. O-grid & bad-grid hybrid sites
4. Floating applications for telecom sites

Benefits

1. Long life design for cyclic or oat application
2. Excellent charge acceptability and deep cycling performance
3. Excellent over discharge recovery capability
4. Superior charging & discharging ability in low current
5. Extend service life under high temperature

Technical Features

1. According to DIN-40742 and IEC-61427 standards, 20 years design life

2. Tubular plate & special gel electrolyte, which can prevent active material falling and avoid acid stratification
3. High stability and security, millions of batteries are in service
4. Higher thermal capacity & better thermal diffusivity2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.

Technical Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)
