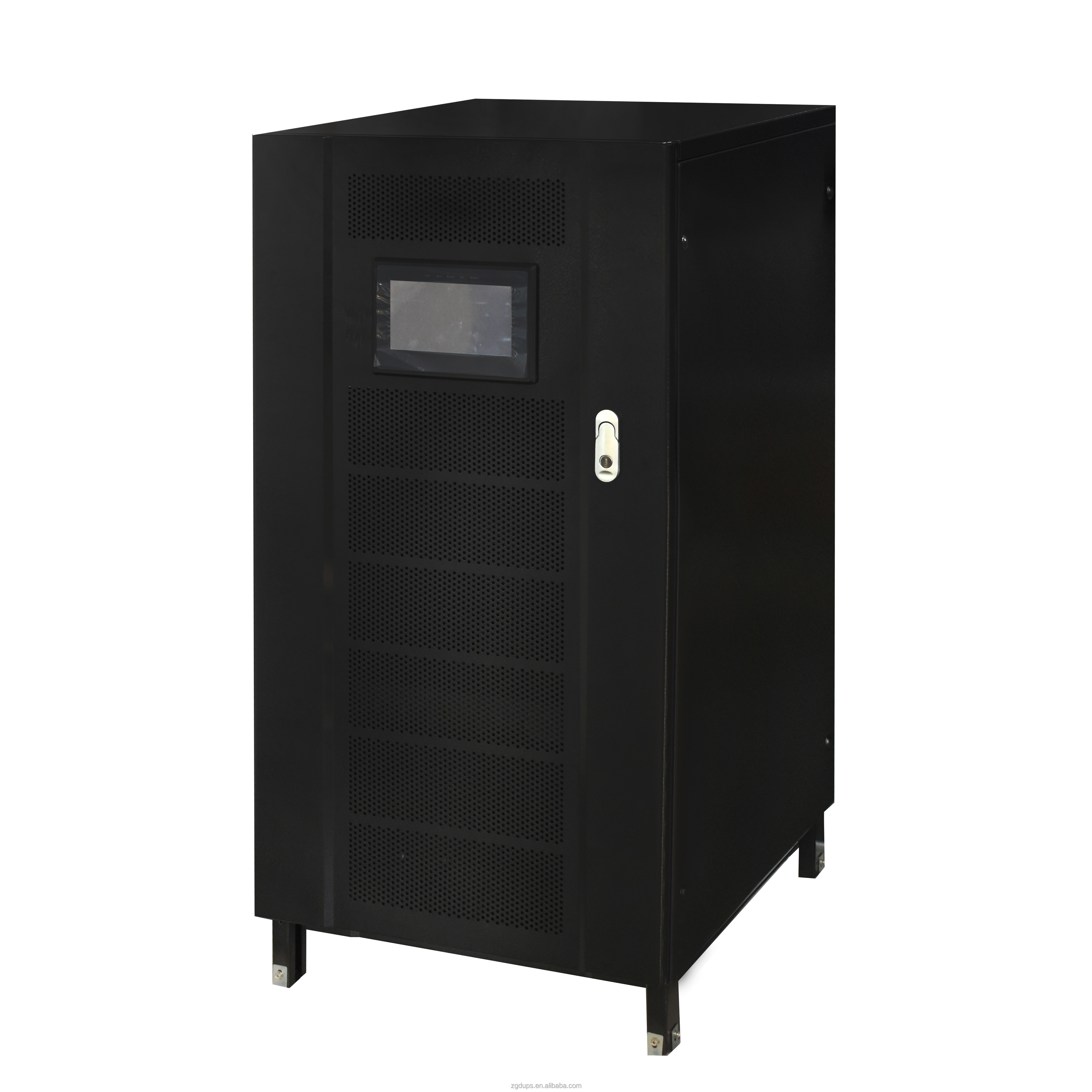

20KVA/18KW Online High Frequency UPS For Miniaturized Data Center Storage
20KVA/18KW Online High Frequency UPS For Miniaturized Data Center Storage
Contact Now

20KVA/18KW Online High Frequency UPS For Miniaturized Data Center Storage

Minimum Order Quantity : 20sets Price : Negitionable
Packaging Details : Standard export cartons Delivery Time : 5-8workdays
Payment Terms : L/C, T/T, Western Union Supply Ability : 1000sets/month
Model Number: 30KVA

Detail Information
Keywords: Online High Frequency UPS Type: On-line
Warranty: 12 Months Battery Type: Built In 40 PCS Battery
Weight: 26-208KG Capacity: 20KVA/18KW
UPS Capacity: 30kva Frequency: 46~54Hz
High Light:

18KW Online High Frequency UPS

,

20KVA Online High Frequency UPS

,

20KVA 18KW high frequency online ups

Product Description

20KVA/18KW Online High Frequency UPS For Miniaturized Data Center Storage



Feature of High Frequency UPS



Simple

Hot-swappable power module, bypass module and control module simplify maintenance and expansion in 5 minutes

Green

Compact design, saving the footprint by 50%

96% system efficiency, high efficiency at light-load

Reliable

The redundant architecture eliminates single point of failure

ultra-wide input voltage range, suitable for the

worst power grid



High Frequency UPS Detailed parameters
Model EH9335 Pro-20KS EH9335 Pro-30KS EH9335 Pro-40KS EH9335 Pro-60KS EH9335 Pro-80KS
Power 20KVA/18KW 30KVA/27KW 40KVA/32KW 60KVA/54KW 80KVA/64KW
Input Input Three Phase Four Line+Ground (3PH 4W+G)
Rated Power 380/400/415VAC
Voltage Range 208~478VAC
Frequency Range 45~55HZ At 50HZ / 54~66HZ At 60HZ (Auto Sensing)
Power Factor ≥0.99
Input Current Harmonic ≤ 3%(100%Nonlinear load )
Bypass Range Bypass protection voltage upper limit
220V + 25%(Optional+ 10% + 15% + 20%)
230V + 20%(Optional+ 10% +15%)
240V + 15% (Optional+10%)
Bypass protection voltage lower limit -45%(Optional -20% -30%)
Bypass Frequency Protection Range±10%
Output Output Three Phase Four-line+Ground Or Single Phase+N
Rated Voltage 380/400/415VAC Or 220/230/240VAC
Power Factor 0.9
Voltage Accuracy ±1%
Output Frequency Utility Mode Synchronous with input when the mains frequency exceeds ±10% maximum
(±1% ±2% ±4% ±5% can be set)
the output frequency is 50*(±0.2)HZ
Battery Mode (50/60±0.2%)HZ
Load Peak Ratio 3:1
Output Voltage Distortion ≤ 2% Linear Load
≤ 5% Nonlinear Load
Battery Efficiency Normal Mode≥ 94.5%
Battery Voltage Optional :±192V±216V±240V DC (±16/18/20 PCS)
Charging Current 10A max
Transfer time Utility mode to bypass mode: 0ms (tracking)
utility mode to battery mode: 0ms
Protection Overload Capbility Normal Mode Load ≤ 110%, 60mins; ≤ 125%, maintain 10mins; ≤150% for 1min
≥ 150% shut down immediately.
Over Temperature Protection Normal Mode:Switch to bypass mode; battery mode.
Turn off the output immediately
Emergency Shutdown
(EPO)		 Turn off the output immediately.
Operating Environment Communication Connection USB, RS485, dry contact, parallel (optional), SNMP card (optional), relay card (optional)
Working Temperature 0℃~40℃
Storage Temperature -25℃~55℃
Relative Humidity 0~95% No Condensation
Altitude < 1500m, when above 1500m, derate according to GB/T 3859.2
Physical characteristics Size (D*W*H) 680*250*540mm 700*250*960mm
Net Weight(kg) 45 46 48 80.5 82.5
Executive Standard YD/T1095-2008

High Frequency UPS Application Field



High Frequency UPS is Applied to small and medium-sized enterprises, large enterprise branches, banking outlets ,miniaturized data center storage, network equipment, VOIP, communications equipment, automation equipment, office equipment terminal precision equipment, etc.



  • Rated Power 20KVA 30KVA 40KVA 60KVA 80KVA
  • TRANSIENT VOLTAGE SURGE SUPPRESS Protect Function For FAX,TELEPHONE,MODEM;
  • Machine Efficiency Greater Than 97%, Input Power Factor Greater Than 0.99, Input Current Harmonics Less Than 5%;
  • Optional SNMP For Monitoring.

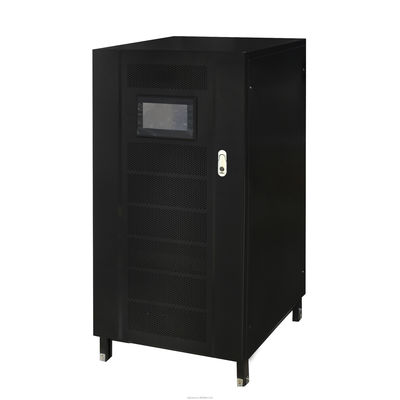

Pictures

Online UPS 20KVA 16KW Uninterruptible Power Supply Built-in Battery Or External Battery For Optional Three Phase 3 in 3 OutOnline UPS 20KVA 16KW Uninterruptible Power Supply Built-in Battery Or External Battery For Optional Three Phase 3 in 3 OutOnline UPS 20KVA 16KW Uninterruptible Power Supply Built-in Battery Or External Battery For Optional Three Phase 3 in 3 Out Online UPS 20KVA 16KW Uninterruptible Power Supply Built-in Battery Or External Battery For Optional Three Phase 3 in 3 Out
