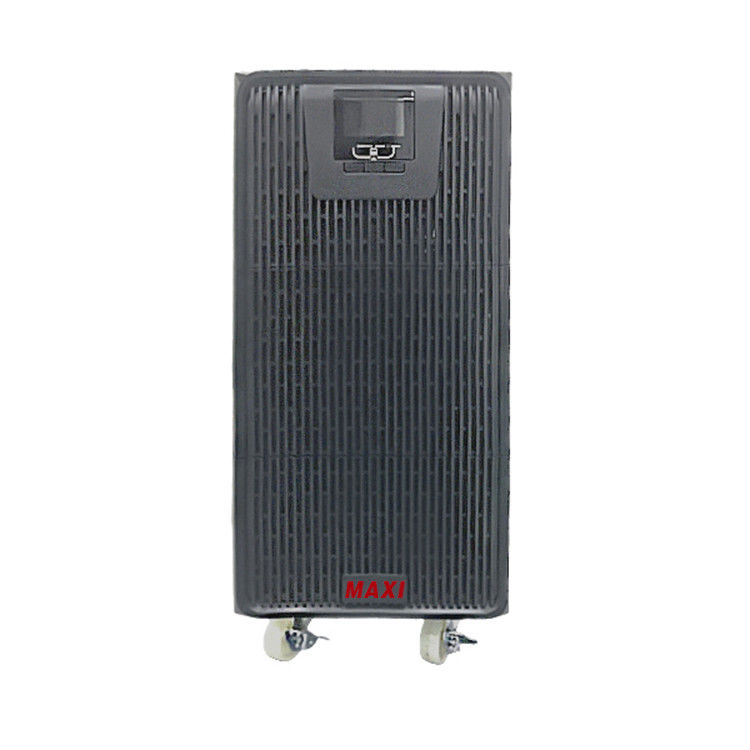

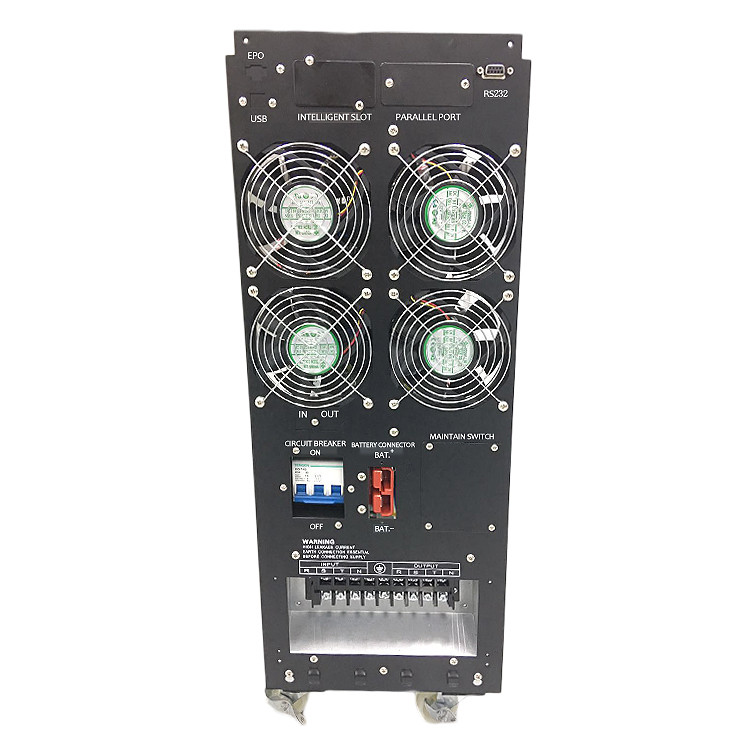

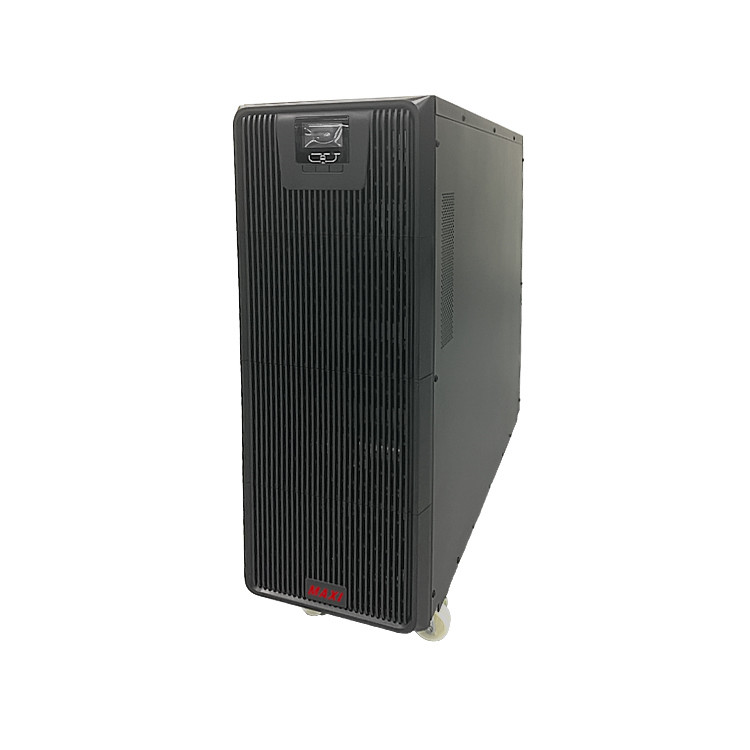

Pure Sine Wave Three Phase Online UPS High Frequency 30KVA Backup 10-200min
Pure Sine Wave Three Phase Online UPS High Frequency 30KVA Backup 10-200min Pure Sine Wave Three Phase Online UPS High Frequency 30KVA Backup 10-200min Pure Sine Wave Three Phase Online UPS High Frequency 30KVA Backup 10-200min
Contact Now

Pure Sine Wave Three Phase Online UPS High Frequency 30KVA Backup 10-200min

Minimum Order Quantity : 20 Delivery Time : 5-8workdays
Payment Terms : L/C, T/T, Western Union
Model Number: 30KVA

Detail Information
Warranty: 1 Year Place Of Origin: Guangdong, China
Weight: 26-208KG Type: STANDBY
UPS Capacity: 30kva Frequency: 46~54Hz
Backup Time: 10-200min Transfer Time: 0ms
Battery Voltage: 192VDC/384VDC
High Light:

30KVA Three Phase Online UPS

,

200min Three Phase Online UPS

,

30KVA Pure Sine Wave Online Ups

Product Description

Pure Sine Wave Online Ups High Frequency Online UPS Three Phase 30KVA Backup 10-200min
Overview
Quick Details
Warranty:
1 year, 1 Year
Place of Origin:
Guangdong, China
Brand Name:
MAXI
Model Number:
MXX33 30KVA
Phase:
Three Phase
Protection:
Overload protection
Weight:
26-208KG
Type:
STANDBY
Application:
Various fields
UPS Capacity:
30kva
Product name:
High Frequency Online UPS
Wave Form:
Pure Sine Wave Online Ups
Frequency:
46~54Hz
Input Voltage Range:
207~475Vac 3P4W+G
Backup time:
10-200min
Transfer Time:
0ms
Battery Voltage:
192VDC/384VDC












Supply Ability
Supply Ability
1000 Unit/Units per Month
Packaging & Delivery
Port
Foshan/Guangzhou/shenzhen
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 20 To be negotiated

Product Description

Pure Sine Wave Online Ups High Frequency Online UPS Three Phase 30KVA Backup 10-200minPure Sine Wave Online Ups High Frequency Online UPS Three Phase 30KVA Backup 10-200minPure Sine Wave Online Ups High Frequency Online UPS Three Phase 30KVA Backup 10-200min



Specification

MODEL 33 30KS PLUS
Rated power 30KVA/24KW
Input Range of voltage(full load) 207~475Vac 3P4W+G
Range of frequency 40-70Hz(adjusted)
Power factor ≥0.99
output Rated voltage 380Vac(1±1%) 3P4W+G
frequency

1.The output frequency synchronizes with the input frequency when the input frequency is in the range of 46 Hz~ 54 Hz.

2.The output frequency is 50Hz when the input frequency is not in the range of 40 Hz~ 46 Hz and 54Hz~60Hz.

3.BAT mode:50Hz.
Rated current 45A
Power factor 0.8
Distortion ≤3%
Ratio 3:1
Over load

105% ±5% < Load ≤ 125% ± 5% 60s transfer to bypass

125% ±5% < Load < 150% ± 5% 30s transfer to bypass

Load > 150% ± 5%, 300ms transfer to bypass
Line—bat transfer time 0ms
Efficiency > 91%
Bat Rated voltage 192Vdc×2
No. 32
Charging current 5.5A
Size (L*W*H)mm 710*260*717
Weight 58.5kg
Work temp.(℃) 0℃~40℃
Work humidity 20%~95%
Noise(dB) ≤60dB



Pure Sine Wave Online Ups High Frequency Online UPS Three Phase 30KVA Backup 10-200min
