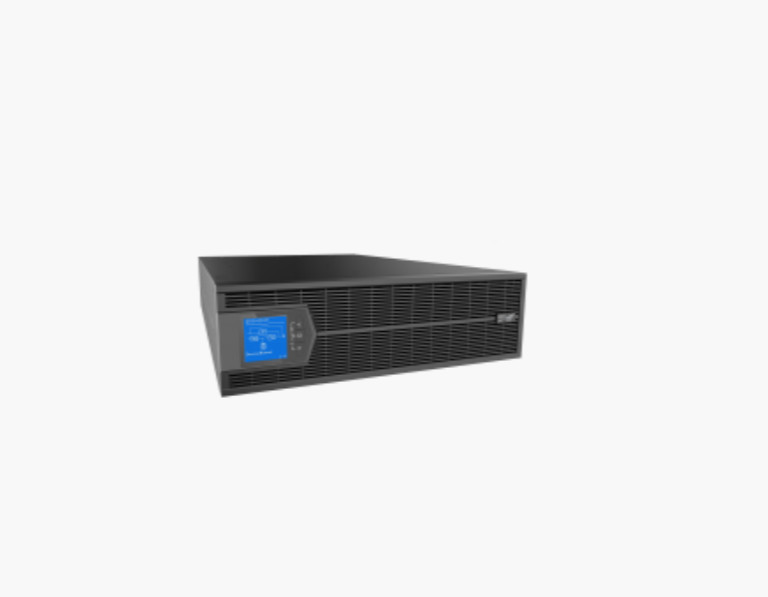

3U 10KVA 3 Phase Online UPS Dual DSP Control RS485 Communication Interface
3U 10KVA 3 Phase Online UPS Dual DSP Control RS485 Communication Interface
Contact Now

3U 10KVA 3 Phase Online UPS Dual DSP Control RS485 Communication Interface

Brand Name: KELONG Model Number: KR10KVA-RM

Detail Information
High Light:

10KVA 3 Phase Online UPS

,

3U 3 Phase Online UPS

,

DSP Control ups 10kva 3 phase

Product Description

KELONG KR10KVA-RM Three phase Online UPS



Advanced Technology

● Super wide input voltage range -60%~+25% for high grid adaptability
● Dual DSP control technology for top performance
● Anti-corrosion resistant coating for all PCB boards
● Intelligent fan speed control reduces the noise and prolongs fan service life
● Anti-corrosion resistant coating in all PCB boards
● ECO and EPO



Green Power

● Low THDi: <5%
● High AC/AC efficiency up to 96%



More Option

● External UPS input and output distribution box
● Dry contact kits and SNMP
● Input and output isolation transformer
● 19-inch rail kits



Excellent Flexibility

● 3U height tower and rack compatible design
● Adjustable input and output to 333111
● Common battery bank
● LCD Rotate setting by (10-20KVA), gravity auto- rotate by (30-40KVA)
● Adjustable battery numbers and charge current (optional)



ITEMS KR10KVA-RM KR15KVA-RM KR20KVA-RM KR30KVA-RM KR40KVA-RM
INPUT
Voltage (Vac)1 138-485 (L-L)
Frequency (Hz) 40-70
Power Factor ≥0.99
THDi <3% (linear load)
Phase 1:1/3:1/3:3 3:1/3:3
OUTPUT
Capacity (kVA) 10 15 20 30 40
AC/AC Efficiency (Max.) 96%
Power Factor 0.9 (1.0 at 40℃)
Voltage (Vac)2 380/400/415±1% (L-L)
Frequency (Hz) 50/60±0.1 (battery mode)
THDv THD<2% (linear load), THD < 4% (nonlinear load) THD<1% (linear load), THD <3% (nonlinear load)
Transfer Time (ms) 0
Overload 115%~130% load: 15 min, 130%~150% load: 1 min,>150% load: 200ms
ECO Mode Yes
BATTERY
Voltage (Vdc) ±192 (±144~±240 adjustable)/32 pcs default (28-40 pcs adjustable)
Charging Current (A) 4 (1-10 settable) 15 (1-20 settable)
OTHER
Communication Interface RS485+EPO(RS232+Dry contact, SNMP are optional in slot)
Display LCD
Alarm Low battery, abnormal AC input, UPS failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) < 55
Working Temperature (℃) -5~40 -5~503
Relative Humidity 0 ~ 95%, no condensation
Dimension (W×D×H)(mm) UPS 438×500×130(3U) 438×680×130 (3U)
DistributionBox 438×500×130(3U) 438×680×130 (3U)
Batt. Pack 438×500×130(3U) 438×680×130 (3U)
Weight (kg) UPS 20 34
DistributionBox 8 14
