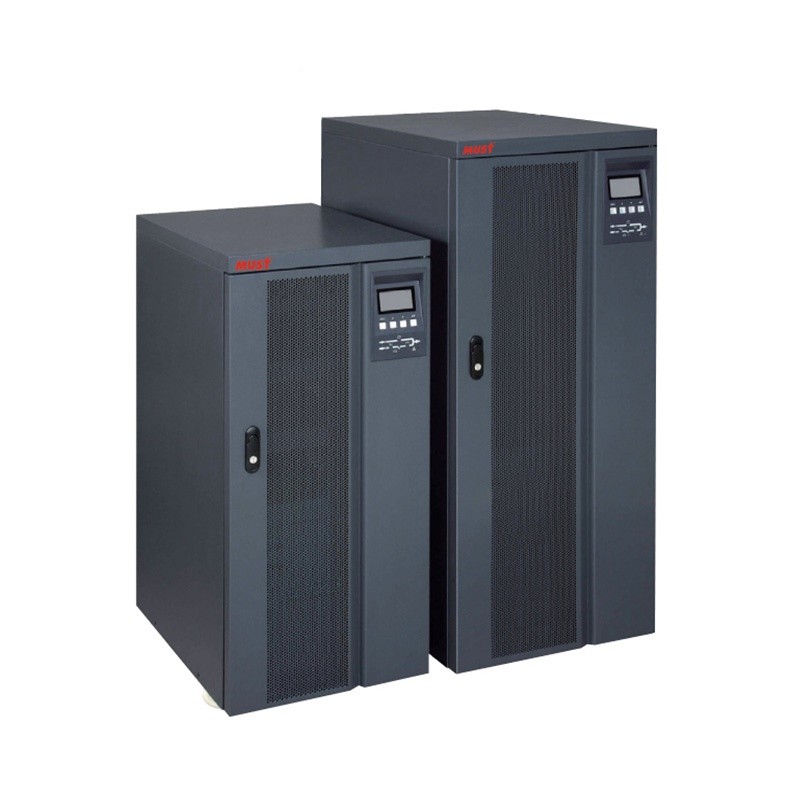

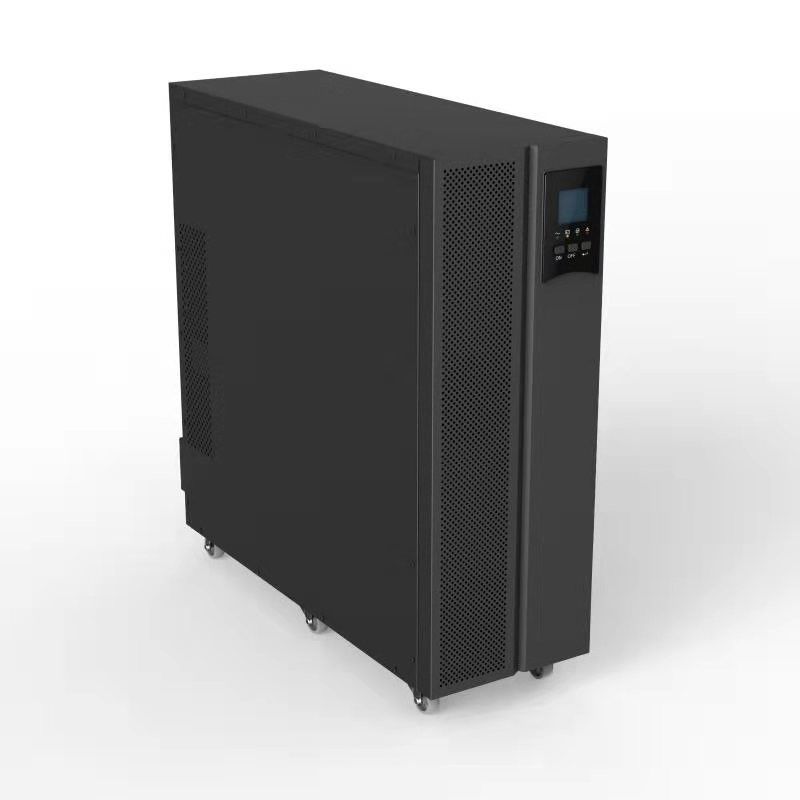

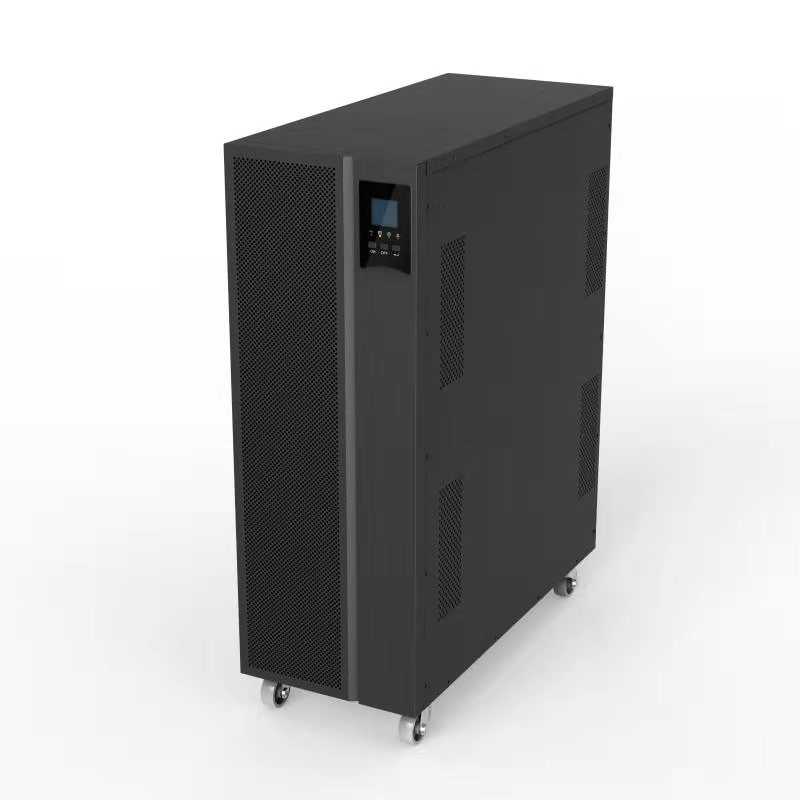

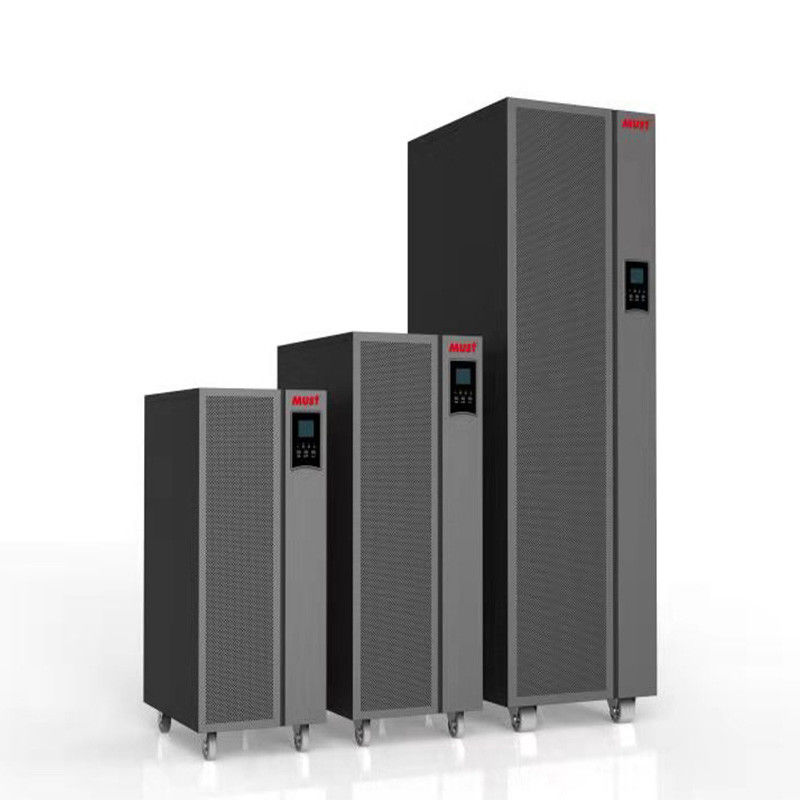

High Frequency 20KVA 16KW Three Phase Online UPS 3 Phase In 3 Phase Out

This Online Series is an uninterruptible power supply incorporating conversion technology. It provides perfect protection specifically for computer equipment, communication systems to computerized instruments.The double-conversion principle eliminates all mains power disturbances. A rectifier converts the alternating current from the utility power to direct current. This direct current charges the batteries and powers the inverter. On the basis of this DC voltage. the inverter generates a sinusoidal AC voltage which is constantly powering the loads.Computers and Peripherals are thus powered entirely by the UPS. In the event of power failure, the maintenance-free batteries power the inverter.

Application Field

Applied to small and medium-sized enterprises, large enterprise branches, banking outlets ,miniaturized data center storage, network equipment, VOIP, communications equipment, automation equipment, office equipment terminal precision equipment, etc.

• Rated Power 20KVA 30KVA 40KVA 60KVA 80KVA
• Pure Sine Wave Output
• TRANSIENT VOLTAGE SURGE SUPPRESS Protect Function For FAX,TELEPHONE,MODEM;
• Machine Efficiency Greater Than 97%, Input Power Factor Greater Than 0.99, Input Current Harmonics Less Than 5%;
• Compatible To Generator;
• Optional SNMP For Monitoring.
