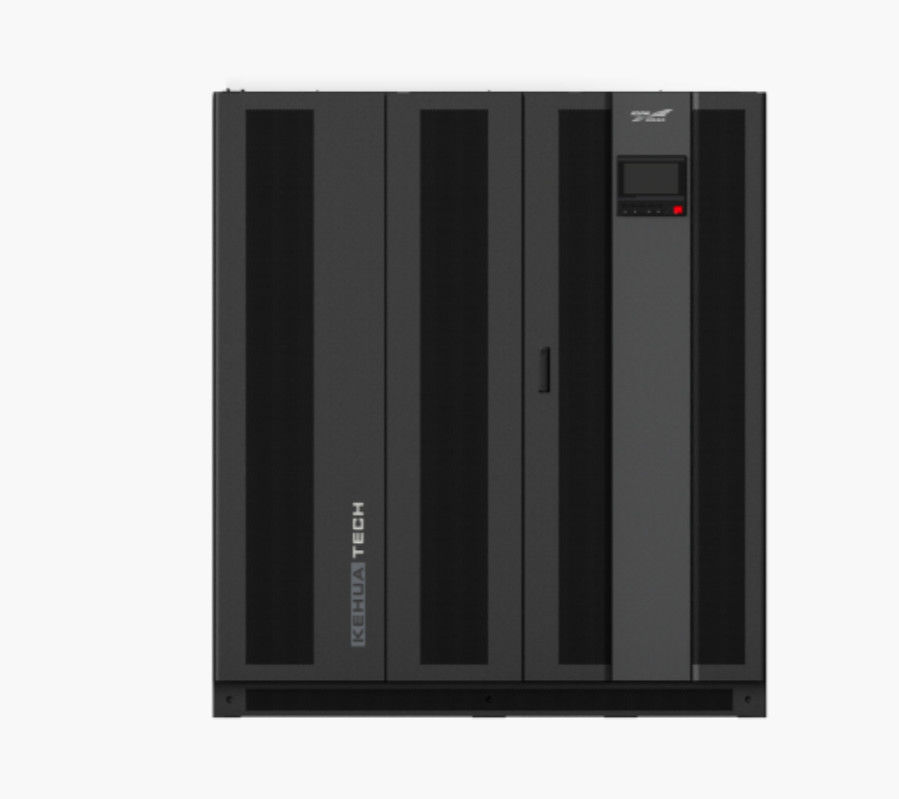

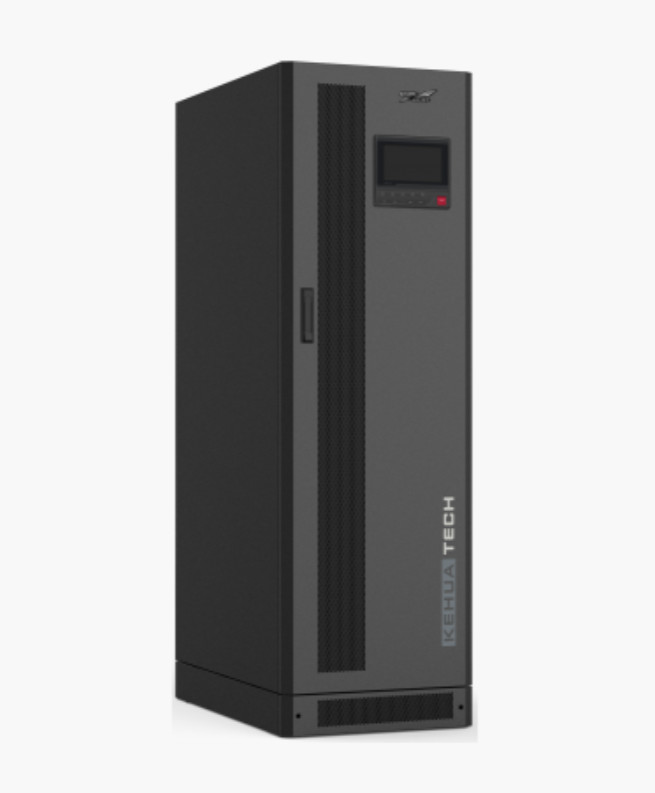

Online double conversion 10-600kVA Three Phase Online UPS For Medical Equipment
Online double conversion 10-600kVA Three Phase Online UPS For Medical Equipment Online double conversion 10-600kVA Three Phase Online UPS For Medical Equipment
Contact Now

Online double conversion 10-600kVA Three Phase Online UPS For Medical Equipment

Brand Name: KELONG Model Number: FR-UK33 Series

Detail Information
High Light:

Double Conversion Three Phase Online UPS

,

600kVA Three Phase Online UPS

,

10kVA online double conversion ups

Product Description

KELONG FR-UK33 Series 10-600kVA Three phase Online UPS





Advanced Technology

● Online double conversion
● Wide input voltage range
● IGBT inverter and output isolation transformer
● Advanced battery charging management
● Advanced no-master-slave parallel technology (optional)



Green & Reliability

● High reliability DSP control
● Intelligent fan speed control
● Full protection function
● ECO mode and EPO function
● Efficiency 98% at ECO-mode
● 10,000 events logs
● Battery self-test function
● 12 Pulse rectifier (optional)
● Bypass isolation transformer (optional)



Excellent Flexibility

● Allow 100% three phase unbalance loads
● Intelligent RS232/RS485 & DB9 dry contact communication port
● DC cold start function (optional)
● Intelligent battery monitor system-MMBM (optional)
● MODBUS & SNMP adapter (optional)



ITEMS FR-UK 3310 FR-UK 3320 FR-UK 3330 FR-UK 3340 FR-UK 3360 FR-UK 3380 FR-UK 33100 FR-UK 33120 FR-UK 33160 FR-UK 33200 FR-UK 33250 FR-UK 33300 FR-UK 33400 FR-UK 33500-12P FR-UK 33600-12P
INPUT
Voltage (Vac) 380/400/415±25%
Rectifier Frequency (Hz) 40~70
SYNC Frequency Tracking (Hz) 50/60±10% (±5% settable)
Phase 3φ4W+PE
OUTPUT
Capacity (KVA) 10 20 30 40 60 80 100 120 160 200 250 300 400 500 600
Power Factor 0.9
Phase 3φ4W+PE
Voltage (Vac) L-N:220/230/240±1%, L-L:380/400/415±1%
Frequency (Hz) 50/60±0.2 (battery mode)
Waveform Pure sine wave, THD≤2% (linear load)
3 Phases 100% Load Unbalance Voltage Stability ≤2%, allow 100% unbalance
Overload 125% load for 10mins, 150% load for 1 min
BATTERY
Voltage (Vdc) 348 (360 settable) 384 (348/360/372 settable)
BATT Type External
Charging Current (A) 10~40A settable 10-100A settable
OTHERS
Maintenance Bypass Yes
Communication Interface RS485, MODBUS, dry contacts (SNMP is optional) RS232, RS485, dry contacts (SNMP is optional)
Display Touch screen + LED
Alarm Overload, abnormal AC input, low battery, UPS failure, etc.
Protection Low battery, overload, over temperature, short circuit, output over voltage, output low voltage, etc.
Noise (dB) < 65 < 70
Working Temperature (℃) 0~40
Relative Humidity 0 ~ 95%, no condensation
Dimension (W×D×H)(mm) 500×600×1180 500×800×1600 700×800×1800 1400x1000x1850 1600×1000×1850 3000×1000×1850
Weight (kg) 230 260 300 400 450 520 600 650 825 1280 1568 1830 2050 4500
