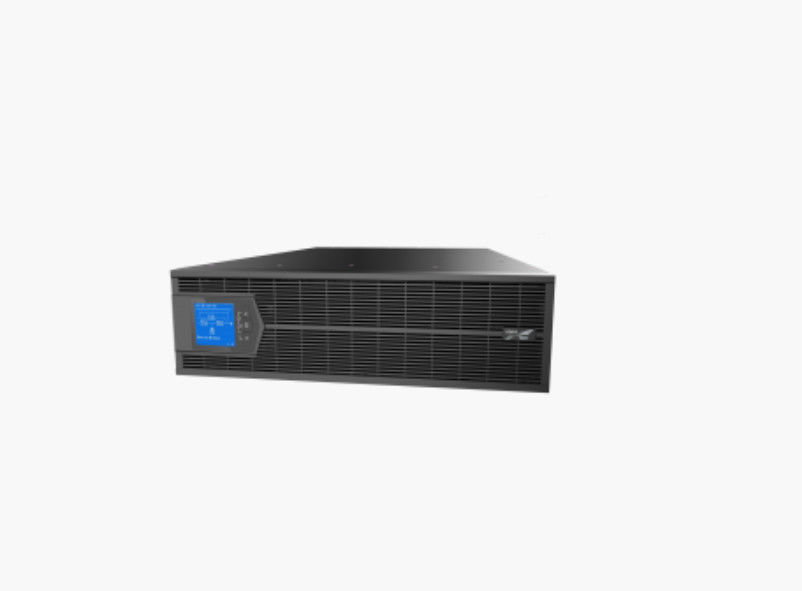

RS485 Communication Interface Three Phase Online UPS 15 KVA
RS485 Communication Interface Three Phase Online UPS 15 KVA
Contact Now

RS485 Communication Interface Three Phase Online UPS 15 KVA

Brand Name: KELONG Model Number: KR15KVA-RM

Detail Information
High Light:

15KVA Three Phase Online UPS

,

RS485 Three Phase Online UPS

,

RS485 15kva online ups

Product Description

KELONG KR15KVA-RM Three phase Online UPS





ITEMS KR10KVA-RM KR15KVA-RM KR20KVA-RM KR30KVA-RM KR40KVA-RM
INPUT
Voltage (Vac)1 138-485 (L-L)
Frequency (Hz) 40-70
Power Factor ≥0.99
THDi <3% (linear load)
Phase 1:1/3:1/3:3 3:1/3:3
OUTPUT
Capacity (kVA) 10 15 20 30 40
AC/AC Efficiency (Max.) 96%
Power Factor 0.9 (1.0 at 40℃)
Voltage (Vac)2 380/400/415±1% (L-L)
Frequency (Hz) 50/60±0.1 (battery mode)
THDv THD<2% (linear load), THD < 4% (nonlinear load) THD<1% (linear load), THD <3% (nonlinear load)
Transfer Time (ms) 0
Overload 115%~130% load: 15 min, 130%~150% load: 1 min,>150% load: 200ms
ECO Mode Yes
BATTERY
Voltage (Vdc) ±192 (±144~±240 adjustable)/32 pcs default (28-40 pcs adjustable)
Charging Current (A) 4 (1-10 settable) 15 (1-20 settable)
OTHER
Communication Interface RS485+EPO(RS232+Dry contact, SNMP are optional in slot)
Display LCD
Alarm Low battery, abnormal AC input, UPS failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) < 55
Working Temperature (℃) -5~40 -5~503
Relative Humidity 0 ~ 95%, no condensation
Dimension (W×D×H)(mm) UPS 438×500×130(3U) 438×680×130 (3U)
DistributionBox 438×500×130(3U) 438×680×130 (3U)
Batt. Pack 438×500×130(3U) 438×680×130 (3U)
Weight (kg) UPS 20 34
DistributionBox 8 14





More Option

● External UPS input and output distribution box
● Dry contact kits and SNMP
● Input and output isolation transformer
● 19-inch rail kits



Excellent Flexibility

● 3U height tower and rack compatible design
● Adjustable input and output to 333111
● Common battery bank
● LCD Rotate setting by (10-20KVA), gravity auto- rotate by (30-40KVA)
● Adjustable battery numbers and charge current (optional)



Advanced Technology

● Super wide input voltage range -60%~+25% for high grid adaptability
● Dual DSP control technology for top performance
● Anti-corrosion resistant coating for all PCB boards
● Intelligent fan speed control reduces the noise and prolongs fan service life
● Anti-corrosion resistant coating in all PCB boards
● ECO and EPO



Green Power

● Low THDi: <5%
● High AC/AC efficiency up to 96%
