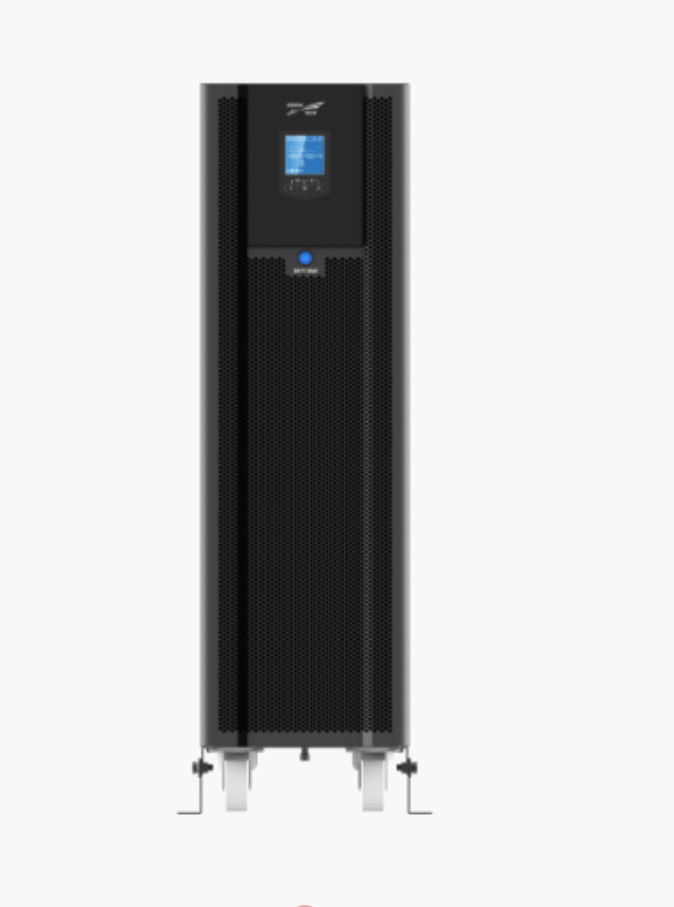

Short Circuit 40-70HZ Back Up Power Supply UPS 15kva 3 Phase With EPO Function
Short Circuit 40-70HZ Back Up Power Supply UPS 15kva 3 Phase With EPO Function
Contact Now

Short Circuit 40-70HZ Back Up Power Supply UPS 15kva 3 Phase With EPO Function

Brand Name: KELONG Model Number: MYA15-A

Detail Information
High Light:

40HZ back up power supply

,

15kva back up power supply

,

ups 15kva 3 phase

Product Description

KELONG MY15-A Three phase Online UPS





Flexible Design

● Dual input design for mains and bypass
● Built-in battery and flexible battery configuration
● 5 min back-up time
● Easy onsite parallel slot modification
● Frequency converter function
● Cold start function
● 2 optional slot for SNMP and dry contact
● Dry contact signal selectable, input signal 13 choose 5, output 5 choose 1
● Internal transformer or internal battery



Green Power

● AC/AC efficiency up to 94%, ECO mode up to 98%, less TCO and more energy saving
● PF=1.0, kVA=kW, more powerful to connect more critical loads
● 3 level IGBT technology for higher efficiency and minimized interference to grid
● Self-load test function



High Reliable

● Dual DSP control for top performance
● Intelligent fan speed control reduce noise and prolongs fan life
● Anti-corrosion resistant coating for all PCB boards
● Full protection with input, output, bypass, maintenance bypass and battery breaker
● ECO mode and EPO function



MODEL MY10-A MY15-A MY20-A
Input
Voltage (Vac) 156~260 (L-L)
Frequency (Hz) 40-70
Power Factor ≥0.99
THDi <3%
Dual Main Input Yes
Output
Capacity (kVA) 10 15 20
AC/AC Efficiency (Max.) 94%
Power Factor 1.0
Voltage (Vac) 190/200/208/220±1% (L-L)
Frequency (Hz) 50/60±0.1 (battery mode)
THDv THD<1% (linear load), THD <3% (nonlinear load)
Transfer Time 0
Overload
ECO Mode Yes
Battery
Voltage (Vdc) ±120 (±96~±120 adjustable) ±96 (±96~±120 adjustable) ±120 (±96~±120 adjustable)
Internal Battery 20×9AH/12V 32×9AH/12V 40×9AH/12V
Battery Number 1/2/3 battery pack (1 pack=16~20 pcs optional for different backup time, max. internal space 60 pcs)
Charging Current (A) 1-10 settable 1-20 settable
Other
Communication Interface RS485+EPO, 5 output dry-contact (13 choose 5), 1 input dry-contact (5 choose 1)(RS232, SNMP are optional in slot)
Display Touch screen+LED/LCD
Alarm Low battery, abnormal AC input, UPS failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) <55
Working Temperature (°C) -5~40
Relative Humidity 0 ~ 95%, no condensation
Dimension (W×D×H)(mm) 280×835×1100
Weight (kg)* 93 109 109
