380vac 100KVA Three Phase Online UPS Power Supply For Computer
380vac 100KVA Three Phase Online UPS Power Supply For Computer
Contact Now

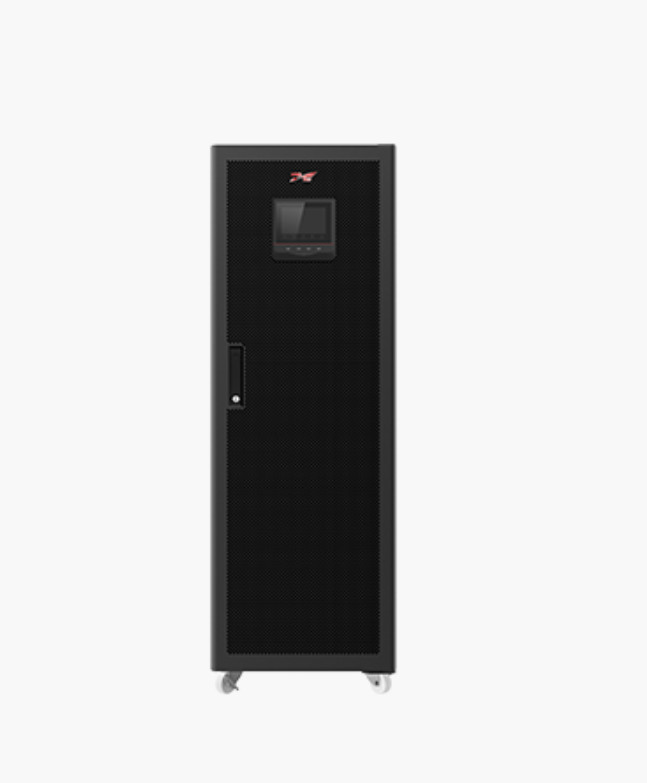

380vac 100KVA Three Phase Online UPS Power Supply For Computer

Brand Name: KELONG Model Number: Myria100KVA

Detail Information
High Light:

KELONG 100KVA Three Phase Online UPS

,

380vac Three Phase Online UPS

,

100KVA UPS Power Supply For Computer

Product Description

KELONG Myria100KVA Three phase Online UPS





Intelligent Management

• Fault Trace Management (FTM) for convenient failure analysis (waveform record before & after of the fault point for 200ms) which easily figure out faulty point.
• 3 stage battery charging prolong the service life of batteries
• Intelligent battery management and mutiple setting, ±14~±24 pcs batteries per string allow customers to get the faulty battery out instead of replacing it
• Key components pre-alarm function which precaution the system fault and remind service for key components, like capacitor, fan.
• Full asset management record the spare parts replacement, timeline and service people.



User-friendly Interface

• User-friendly double physical ON/OFF button design to avoid false operation.
• User-friendly graphical interface with Single-line mimic diagram showing system status.
• Colorful 4.3" and 7" touch screen with LED Indicators, ensure comprehensive and visualized information display.
• Multicolor LED bar allowing quick and easy detection of the system status and simplified troubleshooting.
• Multi-language build-in display with Chinese, English, French,Spanish,Italian,Polish, Russian,Korean.



High Reliability

• Wide input voltage and frequency range with high grid adaptability and prolong battery life.
• Separate internal air channel which hot air drives directly towards heat sink without distressing the PCB's and other internal sensitive components, improving the components service life and UPS reliability
• High overload capacity on inverter and bypass
• The most advanced and dual DSP control prevents single failure point and increase performance.
• Intelligent fan control and redundant design: 15% load can be driven when 2 fans fail and 40% load when 1 fan fails
• Integrated with input,output,bypass breaker and manual bypass switch for better protection of system.
• All-round conformal coating to all PCB boards, protect electronics from environmental effection and corrosion.





Green Power

• Advanced IGBT and three level technology, Low harmonic, high efficiency, effectively energy-saving.
• High power density design, which small footprint on 100KW only 0.38m² for saving installation space.
• High input power factor up to 0.99 and low Input THDi: < 3.0% at full load, much less grid pollution and costs
• AC/AC efficiency up to 96.5% and 30% load up to 95% efficiency reduces heat dissipation and limits power consumption costs
• ECO mode efficiency up to 99.2% lead to significant cost reduction
• W-ECO mode could reach 98.5% efficiency, THDi below 5% and transfer time below 4ms to reduce TCO.



MODEL MY60 MY100 MY200
INPUT
Voltage (Vac) 380/400/415 (138~485 L-L)
Frequency (Hz) 40~70
Power Factor ≥0.99
Phase 3φ4W+PE
THDi at full   linear load <3%
BYPASS
Bypass Voltage (Vac) 380/400/415
Voltage Range +20% (-10/-15/-30 selectable)/+15% (10/20/25 selectable)
Overload ≤130%: long run;130%< load ≤150%: 5min; 150%<   load ≤200%: 1s; 200%< load≤300%: 100ms; >300%:  immediately.
OUTPUT
Capacity (kW) 60 100 200
Power Factor 1 (0.5 leading to 0.5 lagging)
Voltage (Vac) 380/400/415±1%
Frequency (Hz) 50/60±0.1% (Battery mode)
Phase 3φ4W+PE
Three Phase Difference ≤1%
Waveform Pure sine wave, THDv<1% at linear load,THDv<3% at non-linear  load
Transfer Time (ms) 0
AC-AC Efficiency up to 96.5%
Overload 101-105% Long run, 106-110% load for 60 minutes,111%-125% load for 10 minutes, 126%-150% load for 1 minute, over 150% load transfer to bypass
BATTERY
Battery Voltage (Vdc) ±192(±168 ~±288 adjustable) ±240(±168 ~±288 adjustable)
Battery Type External
Charging Current (A) MAX 30 60
GENERAL
Communication Interface RS232, RS485,   MODBUS, dry contact( BMS,SNMP, expend dry contact   card are optional in slot)
Display 4.3" Touch screen+LED+LED bar 7" Touch screen+LED+LED bar
Alarm AC input abnormal, low   battery, overload,  failure
Protection Output short-circuit, overload, over-temperature, battery low   voltage, output over/low   voltage
Noise (dB) <65 <70
Altitude(m) 0-2000 no derate. 2000-3000 m derate power by 1 % per each   100 m  increase
IP IP20
Working Temperature (°C) 0 ~ 40 no derate,40~50 auto derate.
Relative Humidity 0 ~ 95%, no condensation
Dimension (W×D×H)(mm) 400×960×1200 600×1000×1600
Weight (kg) 145 161 312
