30KVA Dual DSP Control Three Phase Online UPS 3 Phase In 1 Phase Out Energy Saving
30KVA Dual DSP Control Three Phase Online UPS 3 Phase In 1 Phase Out Energy Saving
Contact Now

30KVA Dual DSP Control Three Phase Online UPS 3 Phase In 1 Phase Out Energy Saving

Brand Name: KELONG Model Number: Myria30KVA

Detail Information
High Light:

30KVA Three Phase Online UPS

,

DSP Control Three Phase Online UPS

,

30KVA UPS 3 Phase In 1 Phase Out

Product Description

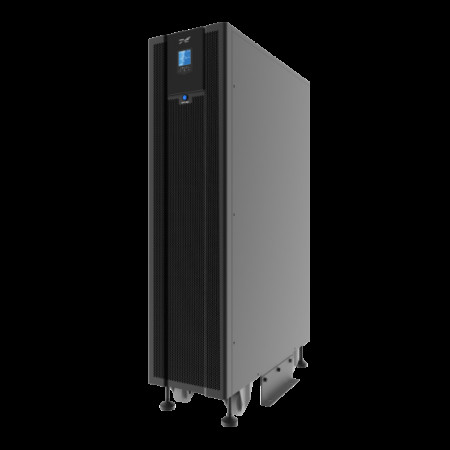

KELONG Myria30KVA Three phase Online UPS



Advanced Technology

● Super wide input voltage range -60%~+25% for higher grid adaptability
● Dual DSP control for high performance
● Intelligent fan speed control reduce noise and prolongs fan life
● Anti-corrosion resistant coating for all PCB boards
● Full protection with input, output, bypass, maintenance bypass and battery breaker
● ECO mode and EPO function
● Compatible with lithium battery
● Lithium battery compatible



Green Power

● AC/AC efficiency up to 96%, less TCO and more energy saving
● Output power factor up to 1.0, more powerful to connect more critical loads
● 3 level IGBT technology for higher efficiency and minimized interference to grid



Flexible Design

● Adjustable input and output
● Built-in battery and flexible battery configuration
● Common battery bank
● Easy onsite parallel slot modification
● Wheel design
● Options are displayed in 7 languages: English, Russian, Chinese, Spanish, Polish, Italian and Korean





RATED POWER 10KVA 15KVA 20KVA 30KVA 40KVA
INPUT
Phase 3:3/3:1/1:1 3:3/3:1
Voltage (Vac) 80-280 (L-N)/138-485 (L-L) 138-485 (L-L)
Frequency (Hz) 40-70
Power Factor ≥0.99
THDi at full Linear load <3%
Dual Main Input Yes
OUTPUT
AC/AC Efficiency (Max.) 96%
Power Factor 1.0
Voltage (Vac) 220/230/240±1% (L-N) 380/400/415±1%(L-L)
Frequency (Hz) 50/60±0.1 (battery mode)
THDv THD<1% (linear load),THD <3% (nonlinear load)
Crest Factor 3:1
Overload 110% load for 60 mins, 130% load for 10 mins, 155% load for 1 min, above 155% load for 200ms
EPO Remote and Local
Cold Start Yes
BATTERY
Voltage (Vdc) ±192 (±96 ~±240adjustable) ±192 (±144 ~±240 adjustable)*
Internal Battery 16~40*9AH/12V 24~40*9AH/12V 48~80*9AH/12V
Charging Current (A) 1-10 settable 1-20 settable
Charging Current (A)
Communication Interface RS485+EPO+Dry contact (1 input,5 output)(SNMP are optional in slot)
Display 4.3 Inch Touch Screen+ LED+ Physical buttons
Alarm Low battery, abnormal AC input, UPS failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) <55
Working Temperature (℃) -5~40
Relative Humidity 0 ~ 95%, no condensation
Altitude(m) 2000, no derate
Dimension (W×D×H)(mm) 250×755×880 300×785×1250
Weight (kg) with Battery 98 (20×9AH) 127 (32×9AH) 144 (40×9AH) 240 (64×9AH) 264 (80×9AH)
without Battery 50 85
with TX 143 240
