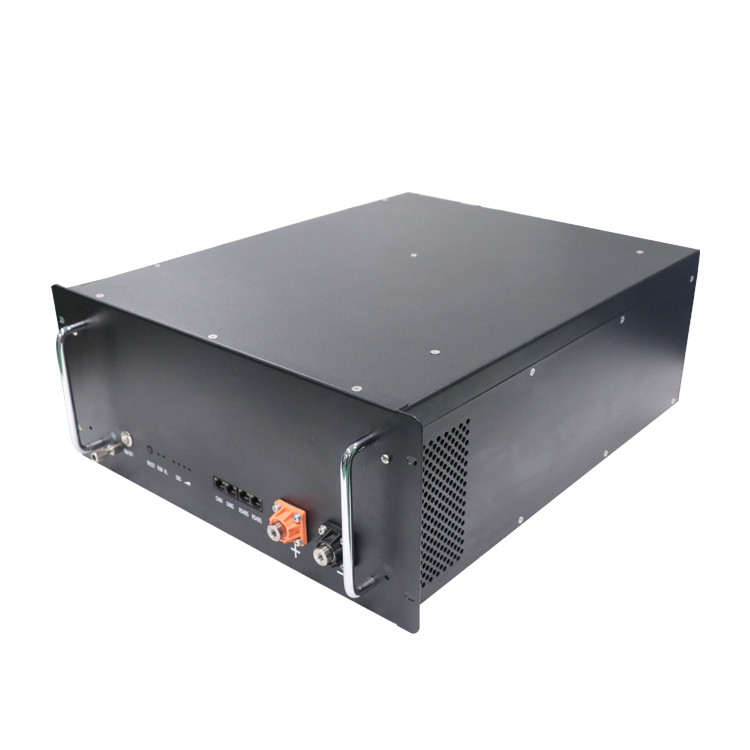

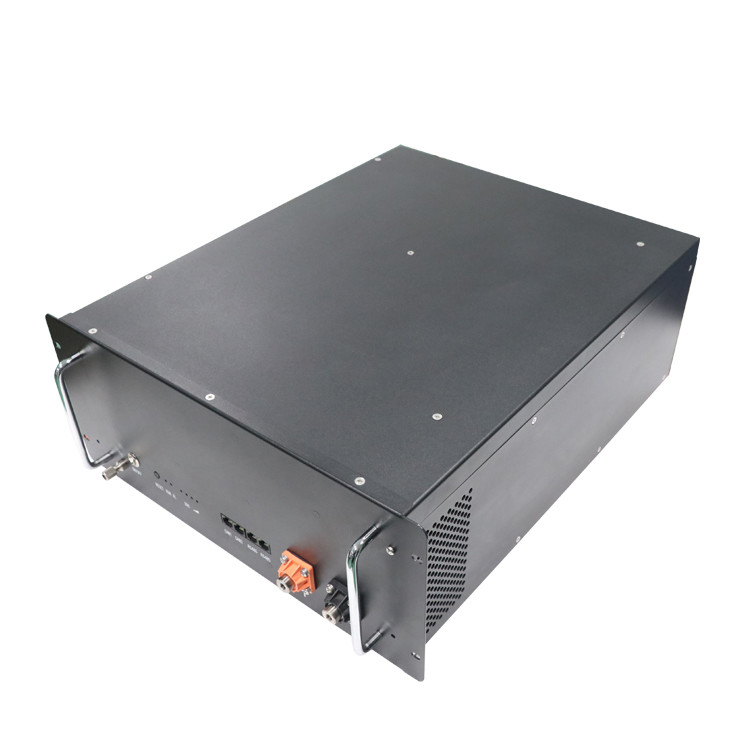

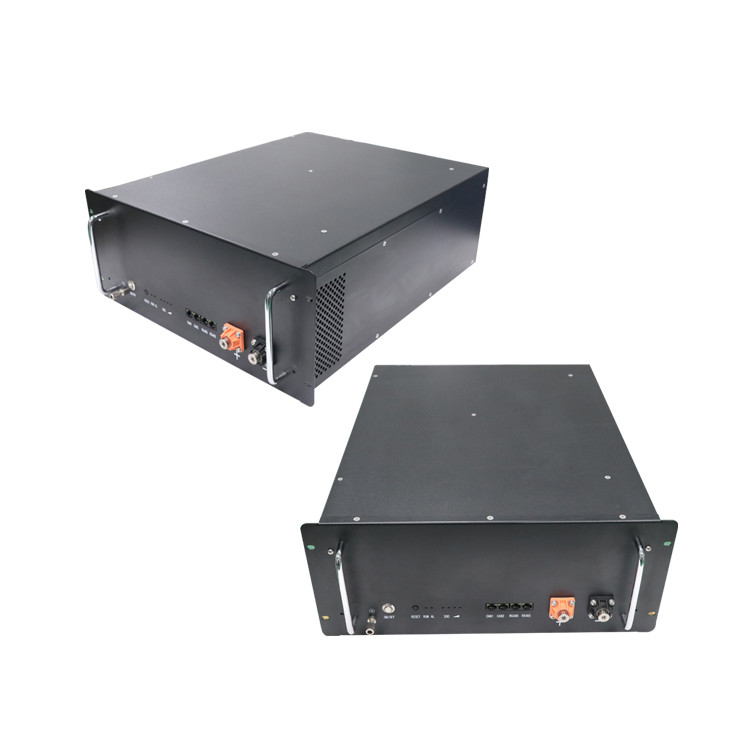

BMS built-in Long life RV lifepo4 48v 100ah deep cycle lithium ion batteries lifepo4 battery pack

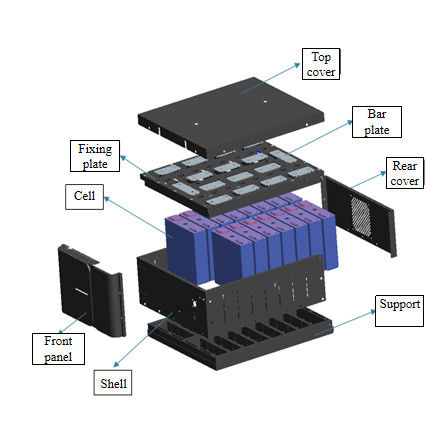

This product is a standard lithium battery energy storage system rated at 51.2V/100Ah.Composed of 16 square Aluminum shell cells,equipped with a dedicated BMS,can meet the 1C high rate of continuous discharge.This system can be used as a backup energy storage power for IDC,communication base station,small ,machine room and other places.
Compared with Lead-acid battery,this product has the advantage of high energy density,long service life,high charge and discharge ratio,and can perfectly replace lead-acid battery.In addition to the backup power supply,this product can also be used for energy storage,optical storage,micro grid and other forms of application scenarios,with high use value.
♦ Why More and More Customers choose Li-ion Battery to instead Lead acid Battery?
♦ Longer Cycle Life
Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery,helping to minimize replacement cost and reduce total cost of ownership
♦ Lighter Weight
About 40% of the weight of a comparable lead acid battery,A "drop in" replacement for lead acid batteries
♦ Higher Power
Delivers twice power of lead acid battery,even high discharge rate, while maintaining high energy capacity
♦ Superior Safety
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high
impact overcharging or short circuit situation
| SPECIFICATION |
| Model No. |
ECM-48B100N |
| Type |
LiFePO4 |
| Application field |
Home Energy System |
| Nominal Voltage/Capacity |
51.2V/100Ah |
| Charging Voltage |
58.4V |
| Discharge termination voltage |
44.8V |
| Internal Resistance |
≤100mΩ |
| Product Size |
483*221*600mm (Pack Module) |
| Product Weight |
<50Kg |
| Storage Temperature |
-20℃~35℃ |
| Battery Shell |
Metal Shell lithium |
| Battery protection |
Overcharge protection,Overcurrent,Overvoltage |
| Cycle Life |
3500 cycles(100% DOD) |
| Protection Level |
IP21 |
→ Wind-Solar Energy System → Uninterruptible power system → Off-grid energy storage → Grid load shifters
→ Household energy storage → Mobile base stations
→ Telecom backup system → Electric Vehicles
→ Emergency backup energy sources → Electric boats
