Home ProductsLiFePO4 Battery PackCE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg
Contact Now

Detail Information
Type: Lifepo4 Warranty: 3years, 3 Years
Size: 43X21X23 Cm Application: Toys, Power Tools, Home Appliances, Consumer Electronics
Cycle Life: More Than 2000 Times 95% Dod-8000times Weight: 45kg
Voltage: 24V Keywords: Lithium Lifepo4 Battery Cell
The Charging Ratio: 100-200A Certification: Ce
Highlight:

2000Times IP56 24v 200ah Lifepo4 Battery

,

IP56 24v 200ah lifepo4 battery

,

IP56 Lithium Ion Battery 48v 100ah

Product Description

LiFePO4 Battery Pack 24v 200ah Lifepo4 Pack Lipo Lithium 48 V Litium Ion Battery 48v 100Ah
Overview
Quick Details
Warranty:
3years, 3 Years
Application:
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Solar System, golf car, CCTV/Solar /System/Power spraye/ car washer
Battery Size:
Lifepo4
Brand Name:
Delongtop
Certification:
ce
Model Number:
DEL-IFR24200
Place of Origin:
Guangdong, China
Weight:
45kg
The charging ratio:
100-200A
The discharge rate:
200A
Components:
lithium iron phosphate
Product Name:
LIFEPO4 24V 200AH
Battery type:
pouch cell 3.2v 100ah battery cell
Cycle life:
more than 2000 Times 95% dod-8000times
Nominal Voltage:
24V
OEM/ODM:
accept
Keywords:
lithium lifepo4 battery cell
Type:
lifepo4

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X21X23 cm
Single gross weight:
45.000 kg
Package Type:
Standard export package, box case with pearl cotton inside to protect battery
Picture Example:

Lead Time:
Quantity(Pieces) 1 - 10 11 - 30 >30
Est. Time(days) 15 20 To be negotiated
Product Description
Lithium Battery Power 24V 200Ah Lithium Ion Battery is one of our top-selling products.

Features of Delongtop LiFePO4 Lithium-Ion Battery : This is a highly versatile deep cycle battery built on patented Lithium Iron Phosphate (LiFePO₄) chemistry. The LFP-24200 features a built in battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life.

★ Internal BMS (electronic chip) monitors battery in real time and alarms the user if any voltage or capacity abnormalities are detected.
★ At only half to a third of the weight of a Lead Acid battery, LiFePO4 is the ideal choice for Marine, RV, Golf Carts,Motorcycles and Off-Grid applications.
★ Without any corrosive or harmful heavy metals, Our lifepo4 lithium Batteries are more environmentally friendly than SLA batteries.
★ LiFePO4 batteries have a low discharge rate and long service life, with an average life expectancy of about 5 to 10 years. LIFECYCLES (BATTERY LIFESPAN) Up to 85% capacity for 3,000 cycles in recommended conditions- 8,000 times(40% dod)

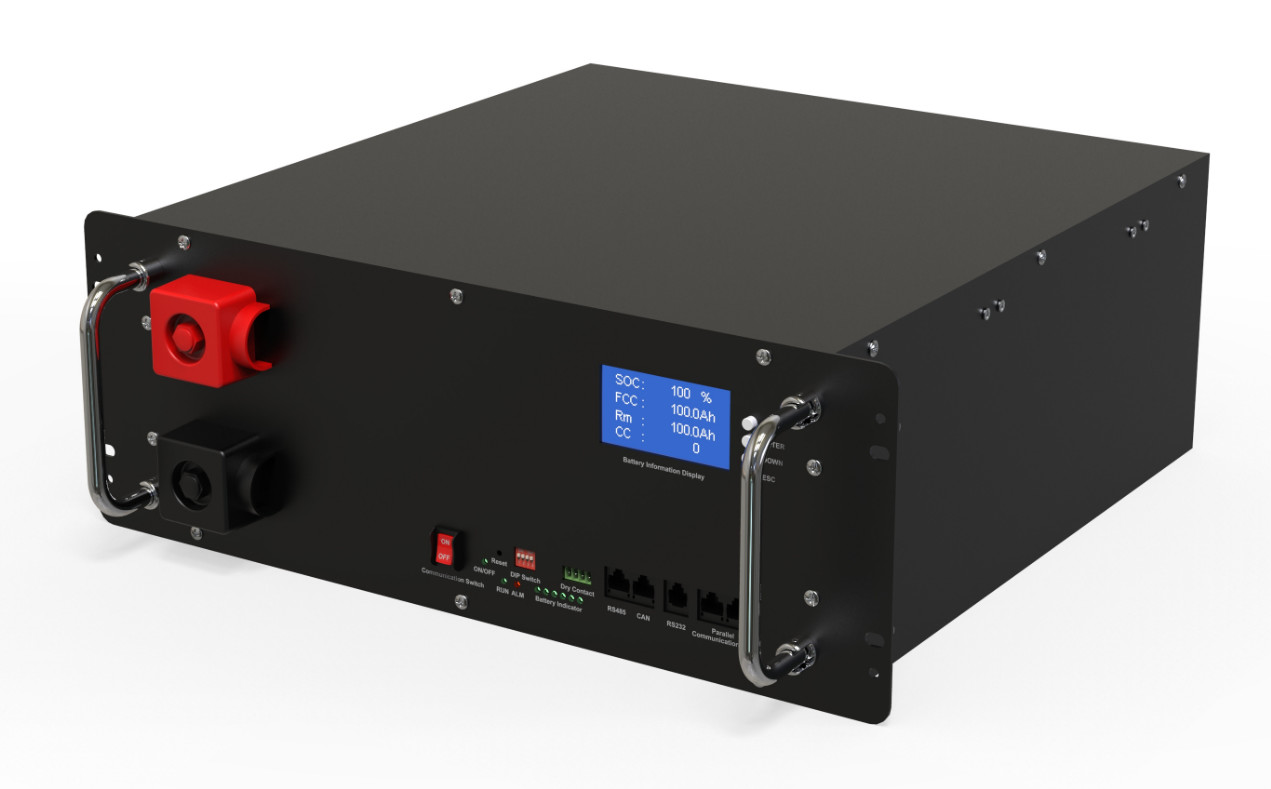

Structure of 24V 200ah Lifepo4 Battery:

24V(25.2V) 200Ah lithium battery = premium Grade A 3.2V LifePo4 battery cells + high-quality BMS + metal case+ LCD screen( display) + handle


CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 0

  •

Features:


*>4000 Cycles at 80% depth of discharge *Create systems 12Volts-1000ah or more. *Series and/or Parallel operation *Automatic system cell balancing *IP56 water and dust resistant Group 31 case *Temperature monitoring *Exceptional voltage stability *Rugged mechanical design *Maintenance free *No hydrogen generation or gassing *<70% the weight of similarly sized SLA
batteries *Stock available for quick delivery for worldwide

Nominal Voltage:
24V (8S2P)
Nominal Capacity:
200Ah
Battery Type:
8S2P Lifepo4 3.2v100ah prismatic cell
Weight:
≤45Kg each battery
Internal Resistance:
≤120mΩ
Size: (LxWxHmm)
battery dimension: 450*375*185mm or OEM dimension
End of charge Voltage:
29.2V
Connector
bolt screw or M8 or anderson
End of charge Current:
100mA
Displacy
LCD display (voltage , capacity, and watts etc)
End of discharge Voltage:
18.4V
Charge Method:
0.2C(0.5A) CC/CV
Max.Continuous charge current:
100A-200A
Nominal Discharge Current:
100A bms-200A bms ( depend on your devices)
Max. Pluse Discharge Current:
150A/10S for 100A bms -300A/10S for 200A bms
Operating Temp.:
Charge: 0~45℃
Discharge: -10~55℃
Storage Temp.(60-80% SOC Storage):
-10~45℃
Cycle Life:
more than 3000 Times.3000times-8000times
BMS protection:
Over-charge,over-discharge,over-current,Short-circut



Performance:
Usable Capacity (amp hours) 200AH
Depth of Discharge 100%
Peak amps 5 seconds 1000A
Reserve Minutes @ 20A 300
Reserve Minutes @ 50A 120
Self Discharge <3% a year
Capacity % @ 100 Cycles 102%
Capacity % @ 1500 Cycles 96.3%
Capacity % @ 2000 Cycles 90.8%
Capacity % @ 2500 Cycles 85.4%
Capacity % @ 3000 Cycles 80.1%
Temperature Performance:
Fahrenheit Usable Capacity
140 103%
122 102%
104 100%
86 100%
68 98%
50 92%
32 83%
14 80%
-4 70%
-22 60%
-40 10%
-58 0%
Automatic Battery Protection System:
Low Voltage Disconnect 16V
Over Voltage Disconnect 31.6V
Short Circuit Protection Instant
Reverse Polarity Protection Instant
Cell Balancing Automatic
Cell Specifications:
Connection : Welded
Type : Cylindrical
Internal Impedance: ≤10mΩ
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 1
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 2

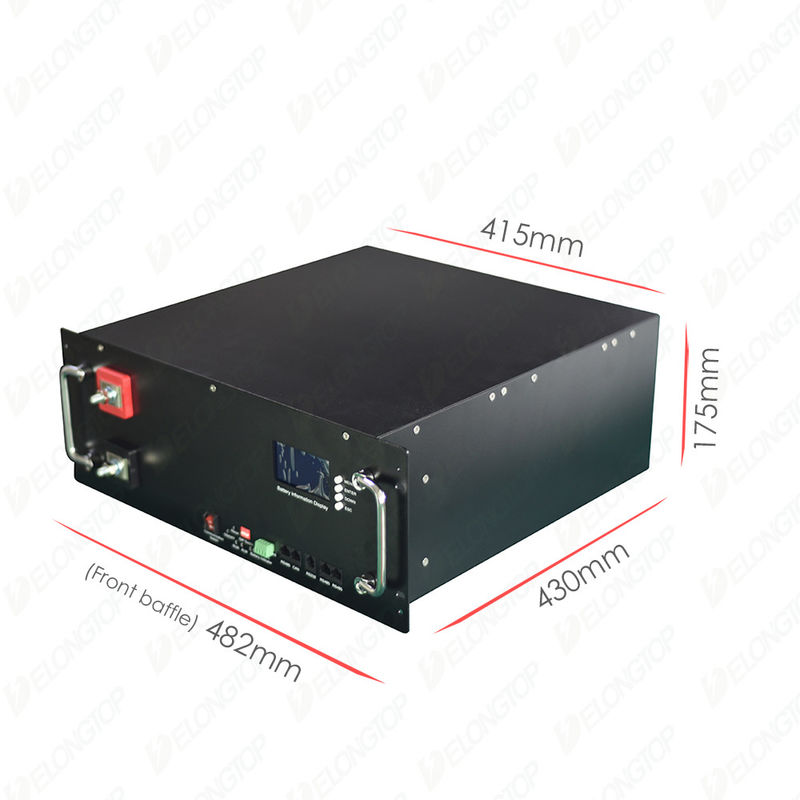

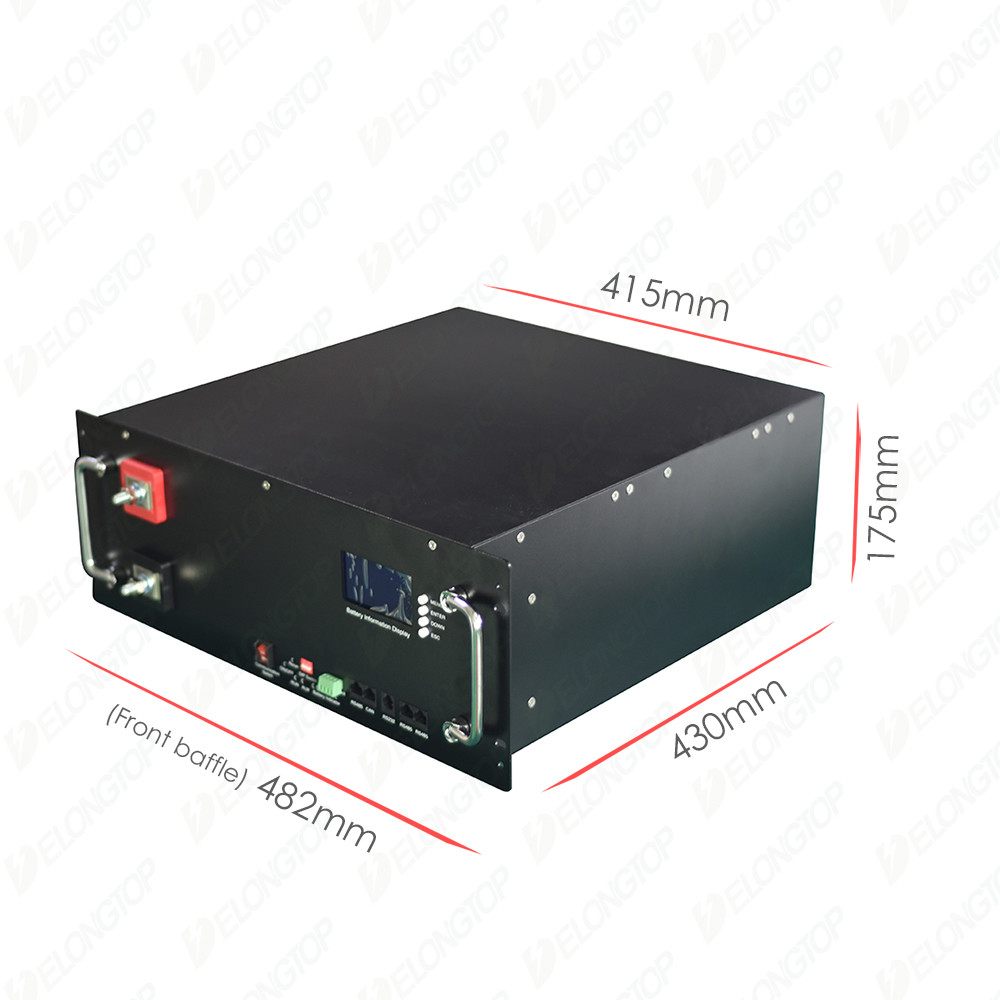

!!!We offer the following different case with different dimension for your any needed. You can choose what you need to sent inquiry. This is WALL MOUNTED battery case for solar system.
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 3
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 4

8S 24V 200ah/ 15S 48V 100Ah /battery with COMMUNICATION Protocol for solar system

CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 5
CE IP56 8S2P 24v 200ah Lifepo4 Battery Lithium Ion Battery 48v 100ah 45kg 6
