Home ProductsLiFePO4 Battery PackLiFePO4 High Voltage Battery Pack 96v 384v 192v Battery Pack IP55

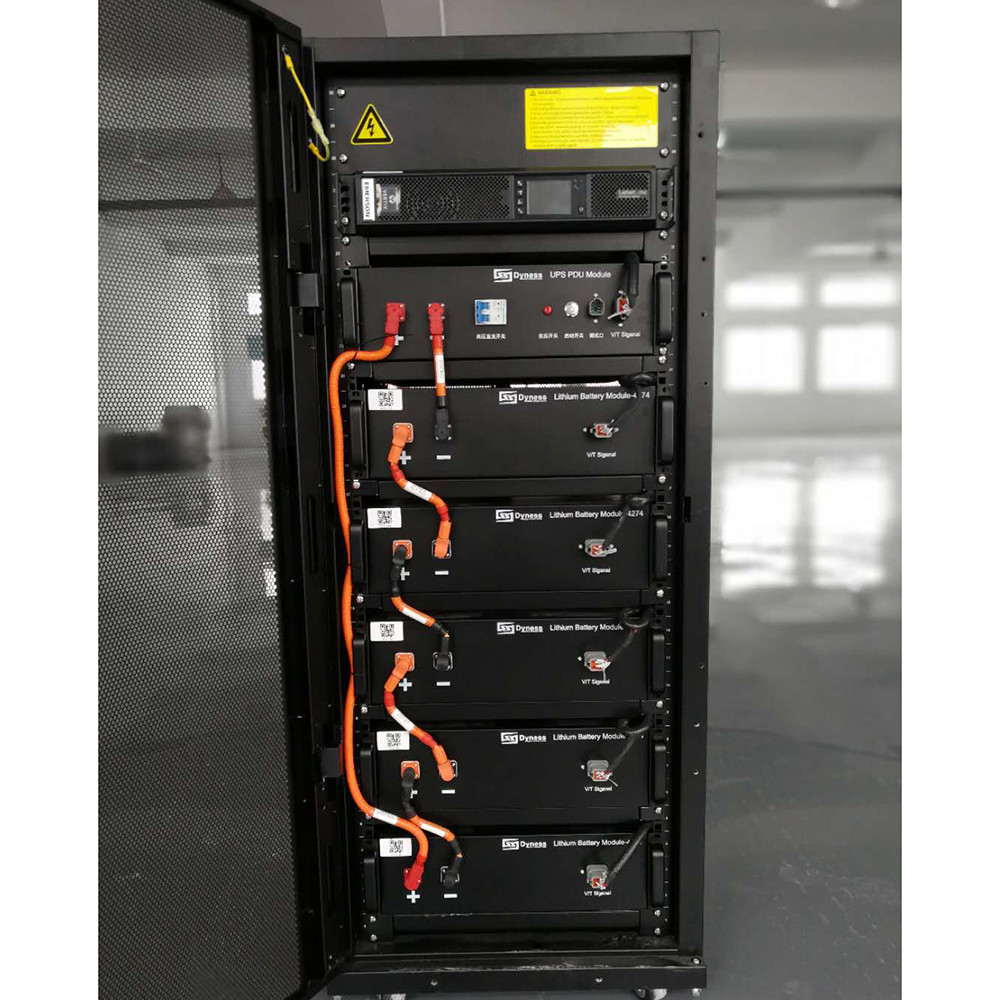

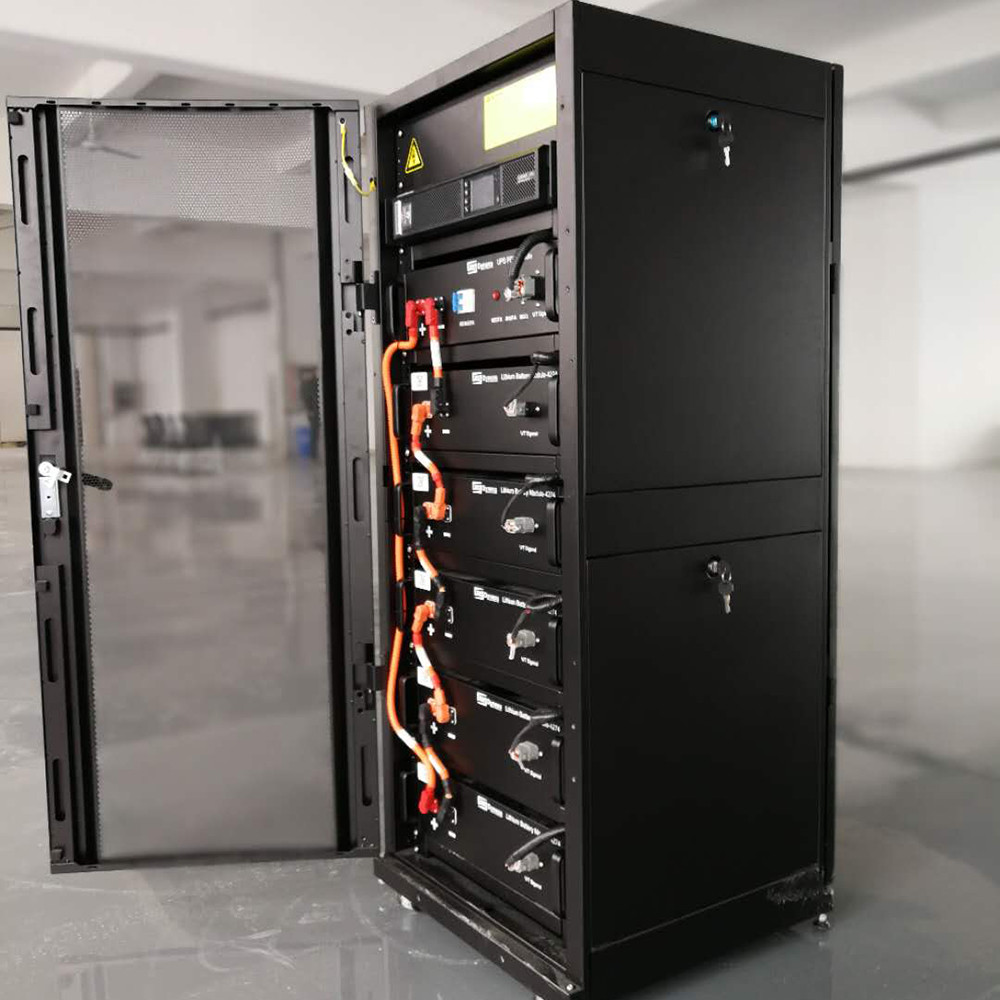

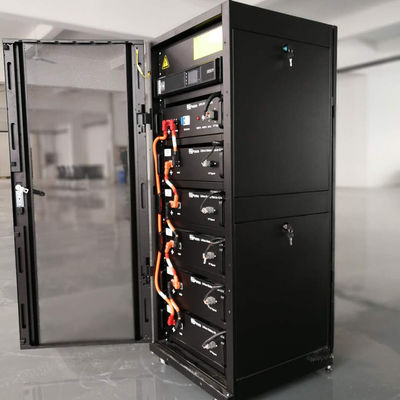

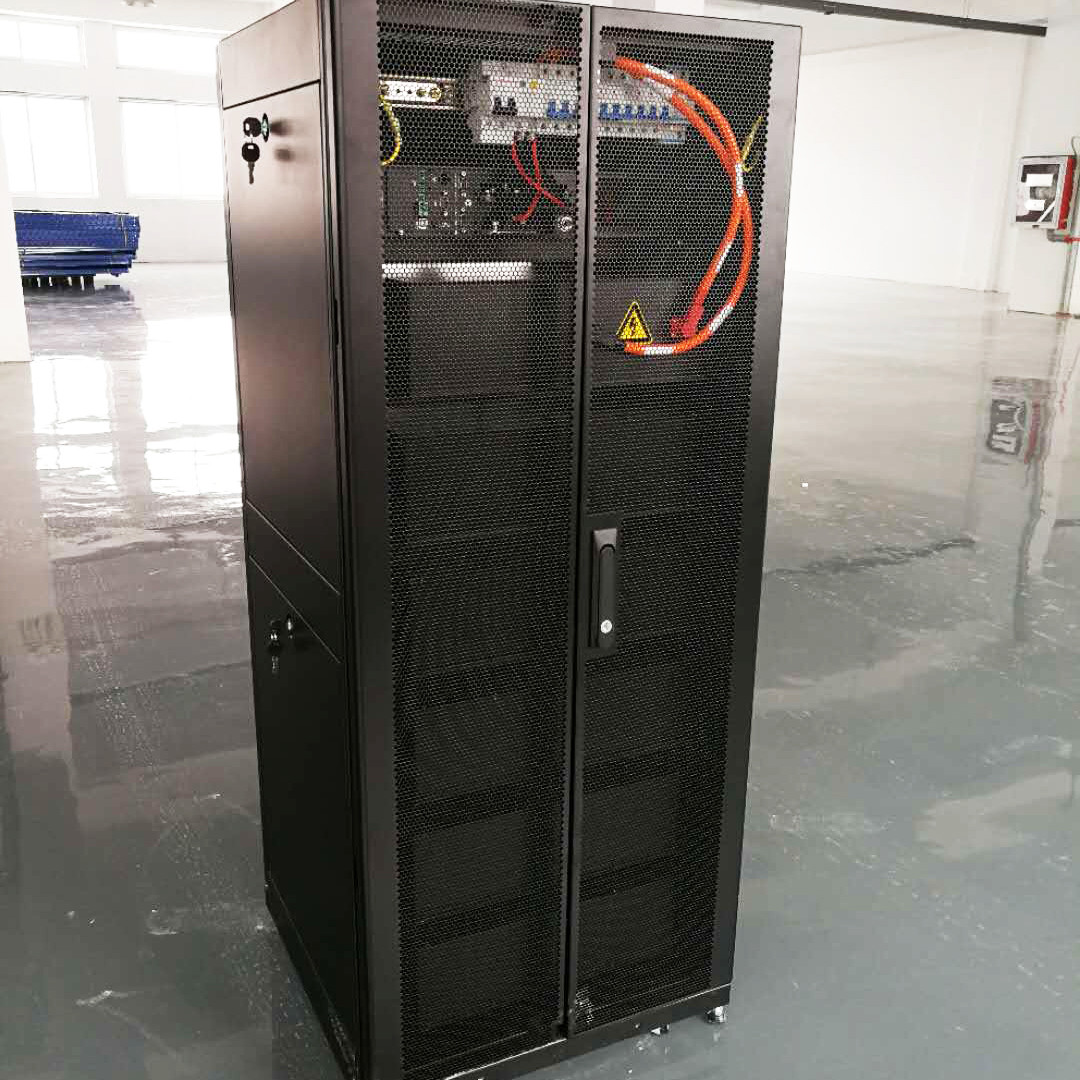

LiFePO4 High Voltage Battery Pack 96v 384v 192v Battery Pack IP55
LiFePO4 High Voltage Battery Pack 96v 384v 192v Battery Pack IP55 LiFePO4 High Voltage Battery Pack 96v 384v 192v Battery Pack IP55 LiFePO4 High Voltage Battery Pack 96v 384v 192v Battery Pack IP55
Contact Now

LiFePO4 High Voltage Battery Pack 96v 384v 192v Battery Pack IP55

Minimum Order Quantity : 99 Delivery Time : 5-8workdays
Payment Terms : L/C, T/T, Western Union Supply Ability : 100000
Certification: CE/RoHS/UN38.3/MSDS

Detail Information
Type: LifeYPO4 Warranty: 2 Years
Size: 33X25X25 Cm Application: Energy Storage,MOBilePhone
Cycle Life: >4000 Cycles Weight: 18KG
Voltage: 96V Package Type: Carton Box And Pallet
Protection: PCM/PCB Certificate: CE/RoHS/UN38.3/MSDS
Battery Protection: BMS,BAMS,BCMS
High Light:

192v High Voltage Battery Pack

,

IP55 High Voltage Battery Pack

,

IP55 LiFePO4 192v Battery Pack

Product Description

LiFePO4 Battery Pack 96v 192v 384v high voltage lithium ion battery price
Overview
Quick Details
Warranty:
10YEARS, 10 years
Application:
Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, UPS, Solar, Auto, Wind
Brand Name:
Yangtze Battery
Certification:
ce
Model Number:
LFeLi-96200M
Place of Origin:
China
Nominal Voltage:
96V
Battery Protection:
BMS,BAMS,BCMS
Cycle life:
>5000 times
Certificate:
CE/RoHS/UN38.3/MSDS
Color:
Grey ,green ,blue,white
OEM/ODM:
Acceptable
Protection:
PCM/PCB















Packaging & Delivery

Single package size: 33X25X25 cm
ss weight: 18.000 kg
carton box and pallet
Lead Time:
Quantity(Units) 1 - 2000 >2000
Est. Time(days) 15 To be negotiated
1280wh capacity solar lithium iron phosphate battery 12v 100ah for solar power system energy storage

96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty



Key Features :
♦ Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦ Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦ Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity

♦ Wider Temperature Range : -20℃~60℃
♦ Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation



96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty

Electrical
Characteristics
Nominal Voltage
96V
Nominal Capacity
200Ah
Energy
19200Wh
Internal Resistance(AC)
≤20mΩ
Cycle Life
>3500 cycles @ 1C 80% DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C



Standard Charge
Charge Voltage
109.5±1V
Float charge voltage 106.5±1V
Charge Current
60A
Max. Charge Current
100A
Charge Cut-off Voltage
110.5V±1V


Standard Discharge
Continuous Current
100A
Max.Pulse Current
120A(<3s)
Discharge Cut-off Voltage
 75V±1V


Environmental
Charge Temperature
0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity
Discharge Temperature
-20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
-20ºC to 45ºC (-4F to 113F) @60±25% Relative Humidity
IP Class
IP65/IP55


Mechanical
Plastic Case
Metal
Communication Method CAN/RS485
Cooling Method
Natural Cooling/Fan Cooling/Air Conditioner

96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty

96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty

96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty

96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty



Certifications

96v 192v 384v high voltage lithium ion battery price with 8000 cycle times 5 years warranty
