Home ProductsSolar Power System1000VA - 10kva Single Phase Online UPS With LCD Display

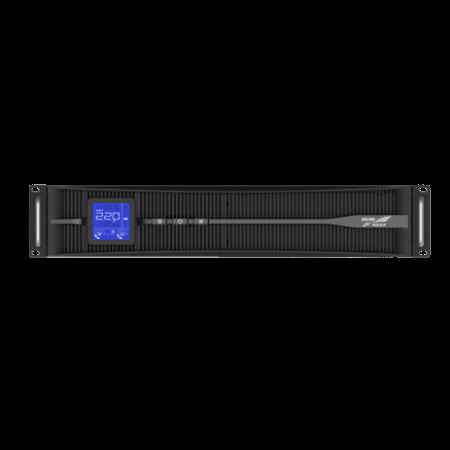

1000VA - 10kva Single Phase Online UPS With LCD Display
1000VA - 10kva Single Phase Online UPS With LCD Display
Contact Now

1000VA - 10kva Single Phase Online UPS With LCD Display

Delivery Time : 5-8workdays
Brand Name: KELONG Model Number: KR11-J Plus Series

Detail Information
Name: Single Phase Online UPS Phase: Single Phase
Type: On-line Humidity: 0 ~ 95%
Capacity: 1000VA - 10kva Display: LCD Display
High Light:

10kva Single Phase Online UPS

,

1000VA Single Phase Online UPS

,

LCD 10kva single phase ups

Product Description

1000VA - 10kva Single Phase Online UPS With LCD Display



Shipping cost saving with its compact structure and small dimension
New topology with high power desity circuit is better for noise and surge protections.



User-friendly and Easy-shift LCD Display

● Intelligent RS232+USB+EPO
● ECO function
● Selectable output sockets
● Rack and tower convertible
● Suitable for vertical/horizontal installation
● External battery bank, rack kits (optional)



Flexible Rear Panel Configuration

● Dry contact kits and SNMP are optional
● Selectable output sockets
● External battery pack port available



1000VA - 10kva Single Phase Online UPS With LCD Display 0



ITEMS KR1000-J+/ KR1000L-J+ KR2000-J+/ KR2000L-J+ KR3000-J+/ KR3000L-J+ KR6000-J+/ KR6000L-J+ KR1110S-J+/ KR1110-J+
INPUT
Voltage (Vac) 120-295 80-275
Frequency (Hz) 50/60± 10%   (50/60Hz auto-sensing)
Power Factor ≥0.99
THDi <5%
OUTPUT
Capacity (VA) 1000 2000 3000 6000 10000
Max. AC/AC Efficiency 92% 92.5% 93.3% 95.5% 95.5%
Power Factor 0.9 (1.0 optional)
Voltage (Vac) 208/220/230/240±1%   (settable on display panel)
Frequency (Hz) 50/60±0.2% (battery mode)
THDv THD<2% (linear load ), THD < 5%   (nonlinear load) THD<1% (linear load ), THD < 4%   (nonlinear load)
Transfer   Time (ms) 0
BATTERY
Voltage (Vdc) 24/36 48/72 72/96 192~240 192~240
BATT Type 2×9AH 12V/External 4×9AH 12V/External 6×9AH 12V/External 16×9AH   12V/External (16~20 units settable)
Charger   Current (A) Max. 1/4 1/4 1/4 1~8 adjustable 1~8 adjustable
OTHER
Communication Interface RS232, EPO,   USB (slot)(SNMP,   RS485+dry contact are optional in slot)
LCD Display AC input & output voltage, frequency, load   level, battery level, temperature; AC mode, battery mode, bypass mode, and fault
Alarm Low   battery,  abnormal AC input, UPS   failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) < 50 < 55
Working   Temperature (℃) -5~40
Relative Humidity 0~95%, no condensation
Dimension (W×D×H) mm 438×413×2U 438×413×2U   (UPS)+ 438×413×2U (Batt. pack)/438×413×2U (UPS) 438×500×2U   (UPS)+ 438×500×3U (Batt. pack)/438×500×2U (UPS)
Weight (kg) 11/5.8 7.2+13/8 7.2+17.5/8 10.6+45/10.6 12.2+45/12.2
