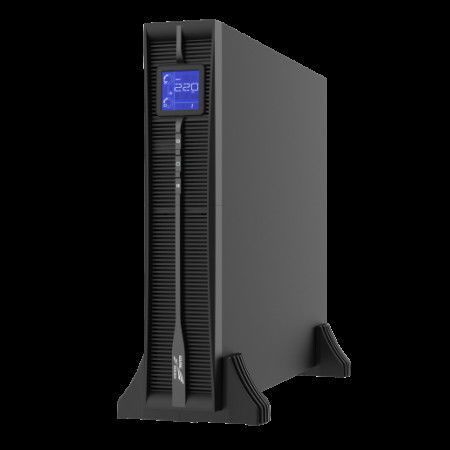

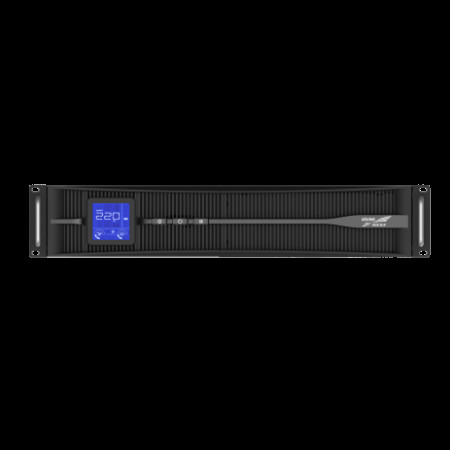

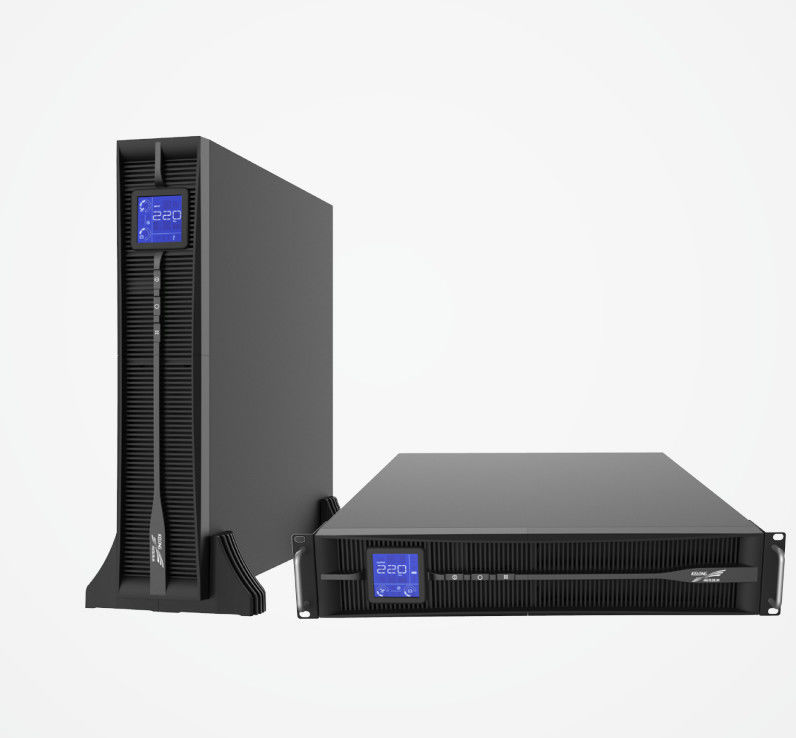

2000VA 48vdc Single Phase Online UPS System KR-RM Series Energy Saving
2000VA 48vdc Single Phase Online UPS System KR-RM Series Energy Saving 2000VA 48vdc Single Phase Online UPS System KR-RM Series Energy Saving 2000VA 48vdc Single Phase Online UPS System KR-RM Series Energy Saving
Contact Now

2000VA 48vdc Single Phase Online UPS System KR-RM Series Energy Saving

Brand Name: KELONG

Detail Information
High Light:

KR-RM 2000VA Single Phase Online UPS

,

KR-RM 48vdc Single Phase Online UPS

,

2000VA online ups system

Product Description

Single Phase Online UPS KR-RM Series



Green Power

● AC/AC efficiency up to 93.5%, less operation cost and more energy saving
● Output power factor 1.0, more powerful to connect more critical loads
● Input PF >0.996 and THDi<5%, less power pollution and lower TCO



Hot-swappable Battery Design

● External battery pack is optional
● Easy for online battery replacement



Flexible Rear Panel Configuration

● Dry contact and SNMP are optional
● Selectable output sockets
● External battery pack port available
● Programmable power management outlet (optional)



User-friendly and Easy-shift LCD Display

● The digital display can be easily shifted through LCD setting to suit for vertical/horizontal installation



ITEMS KR1000-RM KR2000-RM KR3000-RM
INPUT
Voltage (Vac) 120-295
Frequency (Hz) 50/60± 10% (50/60Hz auto-sensing)
Power Factor ≥0.99
THDi <5%
OUTPUT
Capacity(VA) 1000 2000 3000
Max. AC/AC Efficiency 91.1% 92.5% 93.5%
Power Factor 0.9 (1 optional)
Voltage (Vac) 208/220/230/240±1% (settable)
Frequency (Hz) 50/60±0.2 (battery mode)
THDv THD < 3% (linear load),THD < 5% (nonlinear load)
ECO mode YES
Transfer Time (ms) 0
Overload 101%~115% load for 1min, 116%~133% load for 1s, above 134% load for 200ms
BATTERY
Voltage (Vdc) 36 48 72
BATT Type 3×7Ah12V 4×9Ah12V 6×9Ah12V
Charging Current (A) Max. 1
OTHER
Communication Interface RS232, EPO, USB (slot)(SNMP, RS485+dry contact are optional in slot)
*Output outlet 4×IEC320 C13 6×IEC320 C13 + 1×IEC320 C19
Display Blue screen LCD
Alarm Low battery, abnormal AC input, UPS failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) < 50 < 55
Working Temperature (℃) 0~40
Relative Humidity 0 ~ 95%, no condensation
Dimension(W×D×H) (mm) 438×420×87(2U) 438×570×87(2U)
Weight (kg) 13.2 19.9 24.8
