Product Description

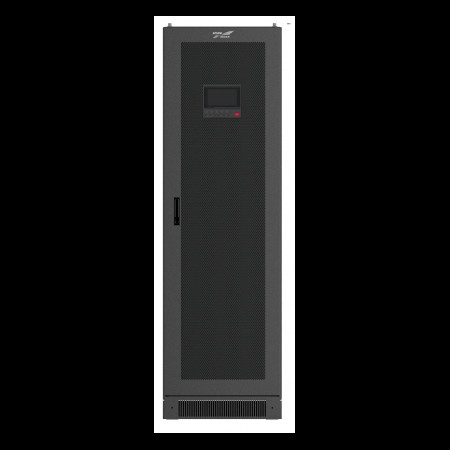

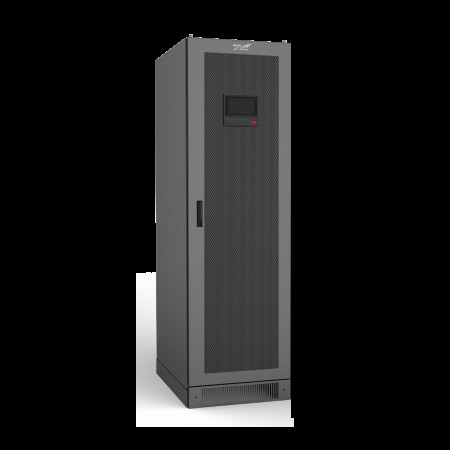

MR33125 Modular UPS Modular Online UPS
High Reliability
• Wide input voltage range -60% ~ +25% with high grid adaptability
• Hot-swappable function ensures uninterrupted operations during maintenance
• Dual system control card prevents single failure point
• Intelligent fan control and redundant design for energy saving: 25% load can be driven when 2 fans fail and 50% load when 1 fan fails
• Parallel expansion up to four systems without requiring additional hardware
High Performance
• High efficiency in online mode (>96%) reduces heat dissipation and limits power consumption costs
• THDi≤3% and input power factor 0.99 reduce the pollution to grid and reduce upstream investment costs
• Full rated power (kVA=kW) to maximize power availability
• Efficiency>99% in ECO mode gives significant cost reduction
• Advanced power module sleep mode, prolong the service life of power module
• Allow 100% three phase unbalance load
• Frequency converter function(60Hz to 50Hz or 50Hz to 60Hz)
• Self-load test function without load enables on-site commission
• Small footprint, 300kW only covers 0.5m2
Intelligent Management
• Fault Trace Management (FTM) for convenient failure analysis(80ms waveform record)
• 7-inch HMI enables more parameters setting and status showing
• Intelligent battery charging system, prolong the service life of batteries
• Intelligent battery management, 30-46 pcs batteries per group allow customers to get the faulty battery out instead of replacing it
• Common battery bank sharing in parallel system
More Options
Power Distribution Cabinet:
• Design the power distribution cabinet according to your integrated solution
• Backfeed protection
Flexible Network Management:
• Optional internal SNMP adapter
• Intelligent management software
Intelligent Battery Monitoring System BMS2000:
• Smart status diagnosis
• Abnormal status real time alarming
• Event logs recording
• Parameters real time monitoring
