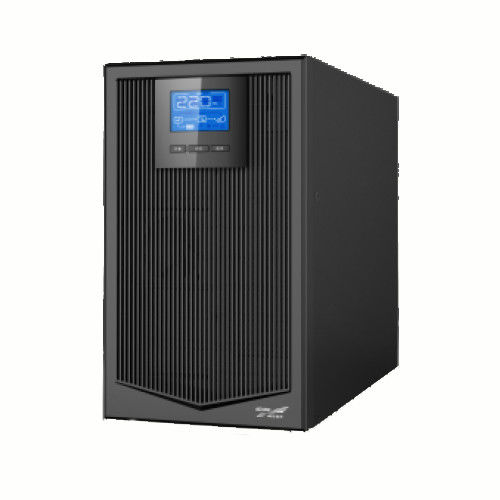

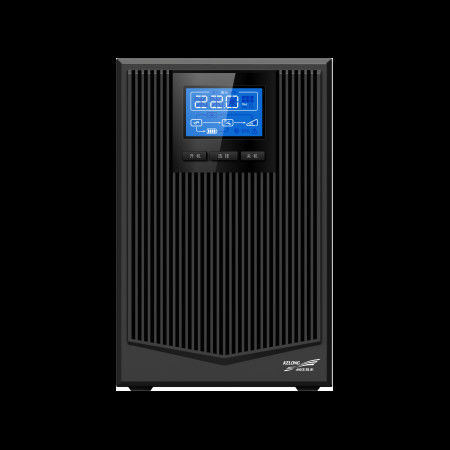

KR11 Plus Modular Online UPS 1KVA -10kva online uPS RS232 Communication Interface
KR11 Plus Modular Online UPS 1KVA -10kva online uPS RS232 Communication Interface KR11 Plus Modular Online UPS 1KVA -10kva online uPS RS232 Communication Interface KR11 Plus Modular Online UPS 1KVA -10kva online uPS RS232 Communication Interface
Contact Now

Detail Information
High Light:

10KVA Modular Online UPS

,

RS232 Modular Online UPS

,

KR11 RS232 10kva Online UPS

Product Description

KELONG UPS KR11 Plus series (1-10KVA) battery disconnection output voltage carbon emission city power



Green Power

■ Input power factor up to 0.996, low THDi (< 5%), decrease pollution to city power
■ AC/AC efficiency up to 95%, energy saving and low carbon emission
■ Compliance with RoHS standard, innocuous and environmental friendly
■ Design in accordance to International EMC and Safety standard



Outstanding Profitability

■ Minimium 0.05m2 footprint, save delivery cost and easy for   installation



Excellent Flexibility

■ Output voltage and ECO mode are selectable via LCD
■ 1~8A charging current settable via software (6-10KVA)
■ Batteries quantity are settable (16/17/18/19/20 for 6-10kVA)
■ Maintenance bypass for 6-10KVA (option)
■ Battery disconnection alarm (option)
■ SNMP or RS485+dry contact (option)
■ Charging voltage temperature compensation (option)

KR11 Plus Modular Online UPS 1KVA -10kva online uPS RS232 Communication Interface 0

ITEMS KR1000+/KR1000L+ KR2000+/ KR2000L+ KR3000+/ KR3000L+ KR6000+/KR6000L+ KR1110S+/ KR1110+
Input Voltage (Vac) 120~295 80~275
THDi <5%
Capacity (VA) 1000 2000 3000 6000 10000
Max. AC/AC Efficiency 92% 93% 94% 95% 95%
Power Factor 0.9 (1.0 optional)
Output Voltage (Vac) 208/220/230/240±1%(selectable on display panel)
BATT Type (Standard) 2×9Ah 12V or 3×7Ah 12V 4×9Ah 12V or 6×7Ah 12V 6×9Ah 12V or 8×7Ah 12V 16×7Ah 12V 16×9Ah 12V
Voltage (Long backup)(Vdc) 36 72 96 192~240 192~240
BATT Type (Long backup) External External (16~20 units settable)

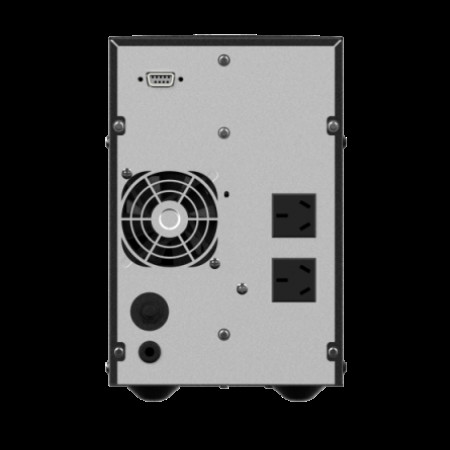

Communication Interface RS232, EPO, USB (slot)(SNMP, RS485+dry contact are optional in slot)
Dimension (W×D×H) mm 145×360×225 190×400×330 230×502×553/190×422×337
Weight (Standard)(kg) 9.2 or 11.6 17.7 or 22.4 22.9 or 27.6 54.5 56.2
Weight (Long backup)(kg) 4.5 8.5 9.2 10.9 12.5
