220VAC Rack Mount Online UPS 10 KVA Data Center Electric Power Pack UPS

Contact Now

220VAC Rack Mount Online UPS 10 KVA Data Center Electric Power Pack UPS

Name: 220VAC Rack Mount Online UPS 10 KVA Data Center Electric Power Pack UPS
Brand: KELONG
SKU: Mercury M560
Price: 1 USD
Availability: InStock
Rating: 4.8 (111 reviews)

Delivery Time :	5-8workdays	Payment Terms :	T/T, L/C, Western Union

Place of Origin:	Jiangsu, China	Brand Name:	KELONG
Certification:	CE / UL / ISO9001 / ISO18001 / ISO14001	Model Number:	Mercury M560

Detail Information
Place Of Origin::	Guangdong, China	Model Number:	Mercury M560
Brand Name:	KELONG	Color:	Grey
Application:	Data Center UPS	Type:	STANDBY
Weight:	65 KG	Power:	10000 VA
High Light:	220VAC Rack Mount Online UPS , 10kva Rack Mount Online UPS , 10kva Power Pack UPS

Product Description

Rack mount online UPS 10KVA Lithium battery Data Center electric power network power

Quick Details

Place of Origin:: Jiangsu, China

Model Number:: Mercury M560_D10+Q340_Y15

Type:: Mercury M560_D10+Q340_Y15

Application:: Data Center UPS

Color:: Grey

Power:: 10000 VA

Working Temperature:: 0 ~ 45 ℃

Dimension(H*W*D):: 264*440*800( mm)

Weight(Including Battery):: 65 KG

Supply Ability

Supply Ability: 1000 Unit/Units per Month

Packaging & Delivery

Packaging Details: To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.

Port: Shanghai Port

Lead Time:: Shipped in 60 days after payment

Product Description

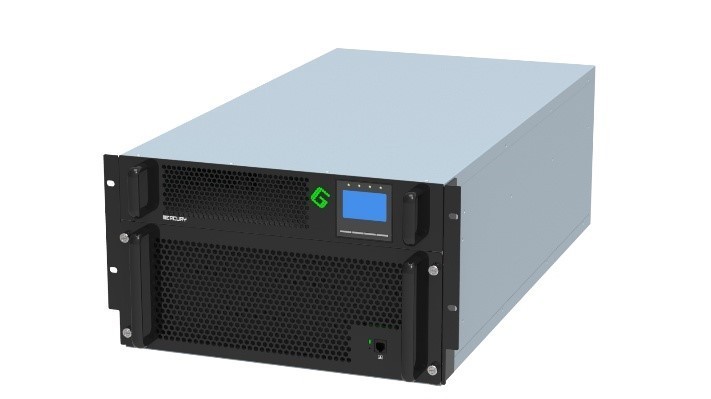

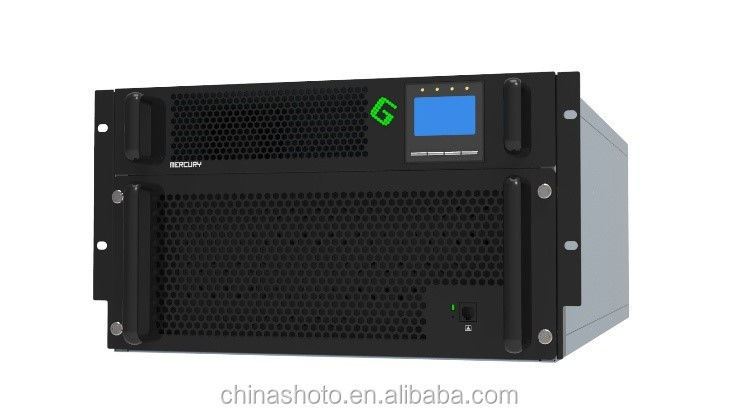

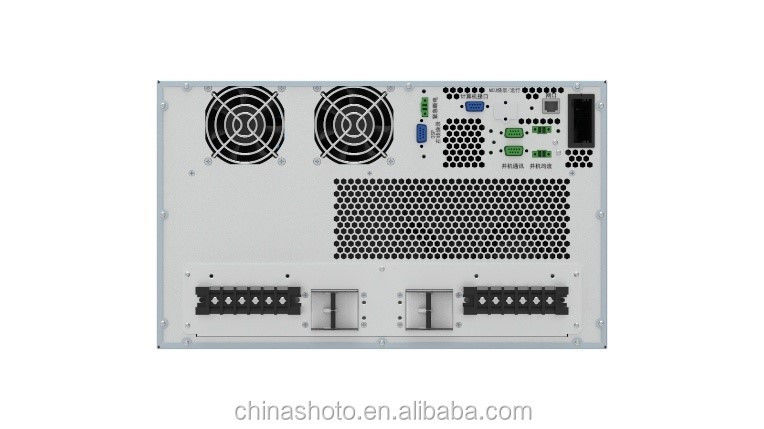

Mercury M560_D10+Q340_Y15 is Distributed Power System (DPS) which is used in Data center. It provides 10KVA output power and equips 15AH Lithium batteries for energy storage, which supports hot-swappable. The height of the equipment is 6U, rack-mounted deployment. Input 220VAC and Output 220VAC. It is designed to be deployed with IT equipments into the cabinets. It is the new power supply system product for Data center to replace the legacy UPS perfectly.

Technical Features

1. Rack-mounted deployment

2. Online power supply device

3. Input: dual paths of 220VAC; Output: dual paths of 220VAC
4. AC power mode, efficiency > 96%, Battery mode, efficiency > 91%
5. Data communication support Modbus, SNMP protocol
6. Lithium Battery module supports hot swappable
7. The life cycle of Lithium Battery is 10 years
8. Lithium battery supports 100% completely discharge
9. Inter-Rack daisy chain deployment

220VAC Rack Mount Online UPS 10 KVA Data Center Electric Power Pack UPS 1

Technical Parameters
