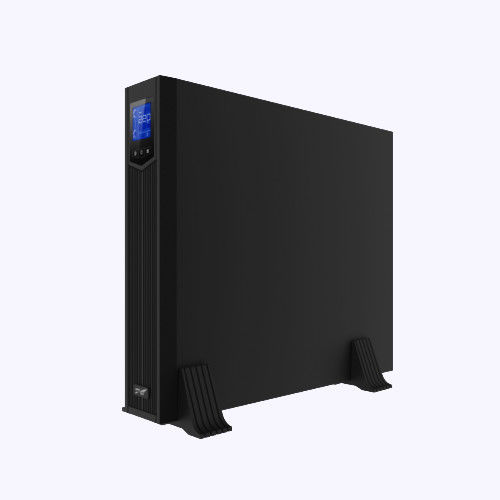

KR11-J Plus 2u Rack UPS Power Supply Rack Mount 6kva Online Ups With Battery
KR11-J Plus 2u Rack UPS Power Supply Rack Mount 6kva Online Ups With Battery
Contact Now

Detail Information
High Light:

2u UPS Power Supply Rack Mount

,

6kva UPS Power Supply Rack Mount

,

6kva online ups with battery

Product Description

Rack Mount UPS KR11-J Plus series (1-10KVA)



Green Power

● AC/AC efficiency up to 95.5%, less operation cost and more energy saving
● Output power factor up to 1.0 (optional), more powerful to connect more critical loads
● Input PF >0.996 and THDi <5%, less power pollution and lower TCO



Flexible Rear Panel Configuration

● Dry contact kits and SNMP are optional
● Selectable output sockets
● External battery pack port available



User-friendly and Easy-shift LCD Display

● Intelligent RS232+USB+EPO
● ECO function
● Selectable output sockets
● Rack and tower convertible
● Suitable for vertical/horizontal installation
● External battery bank, rack kits (optional)





ITEMS KR1000-J+/ KR1000L-J+ KR2000-J+/ KR2000L-J+ KR3000-J+/ KR3000L-J+ KR6000-J+/ KR6000L-J+ KR1110S-J+/ KR1110-J+
INPUT
Voltage (Vac) 120-295 80-275
Frequency (Hz) 50/60± 10% (50/60Hz auto-sensing)
Power Factor ≥0.99
THDi <5%
OUTPUT
Capacity (VA) 1000 2000 3000 6000 10000
Max. AC/AC Efficiency 92% 92.5% 93.3% 95.5% 95.5%
Power Factor 0.9 (1.0 optional)
Voltage (Vac) 208/220/230/240±1% (settable on display panel)
Frequency (Hz) 50/60±0.2% (battery mode)
THDv THD<2% (linear load ), THD < 5% (nonlinear load) THD<1% (linear load ), THD < 4% (nonlinear load)
Transfer Time (ms) 0
BATTERY
Voltage (Vdc) 24/36 48/72 72/96 192~240 192~240
BATT Type 2×9AH 12V/External 4×9AH 12V/External 6×9AH 12V/External 16×9AH 12V/External (16~20 units settable)
Charger Current (A) Max. 1/4 1/4 1/4 1~8 adjustable 1~8 adjustable
OTHER
Communication Interface RS232, EPO, USB (slot)(SNMP, RS485+dry contact are optional in slot)
LCD Display AC input & output voltage, frequency, load level, battery level, temperature; AC mode, battery mode, bypass mode, and fault
Alarm Low battery, abnormal AC input, UPS failure, etc.
Protection Low battery, overload, short-circuit and over temperature, etc.
Noise (dB) < 50 < 55
Working Temperature (℃) -5~40
Relative Humidity 0~95%, no condensation
Dimension (W×D×H) mm 438×413×2U 438×413×2U (UPS)+ 438×413×2U (Batt. pack)/438×413×2U (UPS) 438×500×2U (UPS)+ 438×500×3U (Batt. pack)/438×500×2U (UPS)
Weight (kg) 11/5.8 7.2+13/8 7.2+17.5/8 10.6+45/10.6 12.2+45/12.2
