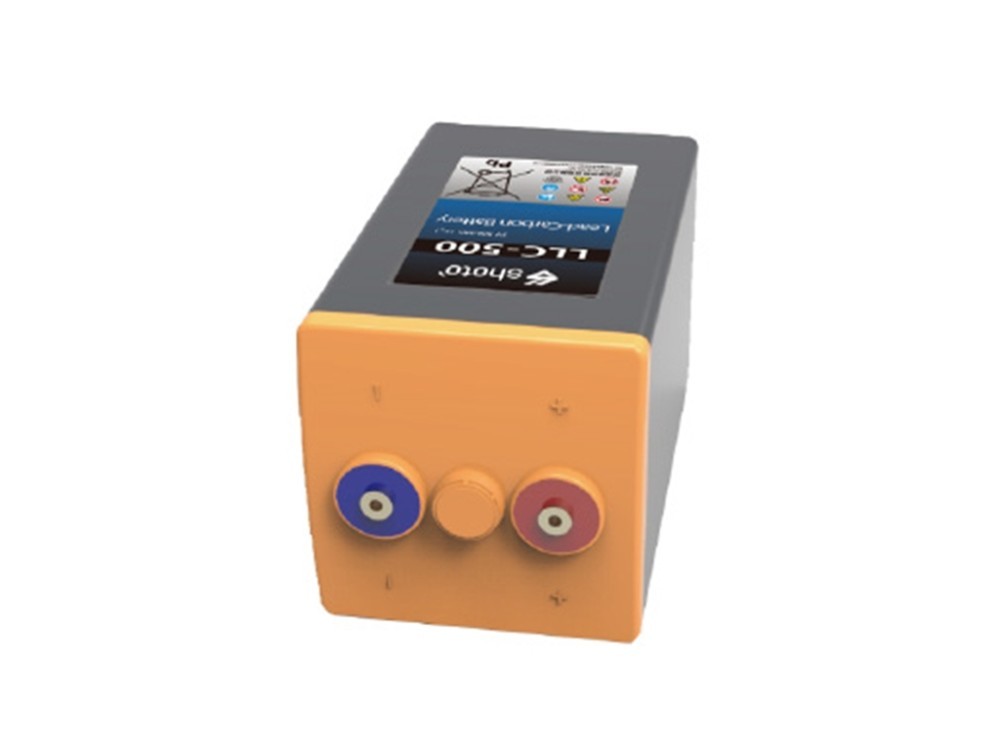

Lead Carbon VRLA Advanced Lead Acid Battery 500AH 2V M8 For Wind Energy Storage
Lead Carbon VRLA Advanced Lead Acid Battery 500AH 2V M8 For Wind Energy Storage
Contact Now

Lead Carbon VRLA Advanced Lead Acid Battery 500AH 2V M8 For Wind Energy Storage

Minimum Order Quantity : 1PCS Price : $177/pcs
Brand Name: SHOTO Model Number: LLC-500

Detail Information
Model Number: LLC-500 Nominal Capacity: 500AH
Weight: 35.5KG Voltage: 2V
Size: 183*207*358/372mm Application: Telecom / Energy Storage / UPS
Color: Grey Type: Acid Lead Battery
Product Name: 2V 500AH Lead Acid Battery Terminal: M8
High Light:

Lead Carbon 500AH advanced lead acid battery

,

M8 VRLA Advanced Lead Acid Battery

,

M8 500AH carbon lead acid battery

Product Description

Product Description



Shoto LLC - 500 VRLA Maintenance - free Sealed Lead - carbon AGM Battery for Telecom / Energy Storage / UPS








Normal Voltage
2V
Capacity
500Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
35.5 kg (78.3 lbs)

Dimensions
Length: 183 mm (7.20 in)
Width: 207 mm (8.15 in)
Height: 358 mm (14.09 in)
Total height: 372 mm (14.65 in)
Internal Resistance (full charged)
0.29mΩ
Short- circuit current
7300A
Self Discharge @25˚C(77˚F)
Less than 4% after 30 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current
75A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Equalize: 2.35 V/cell
Terminal
M8

Capacity Affected by Temperature
105 % @ 40˚C
80 % @ 0˚C
60 % @ -20˚
Design life @25°C
20 years

Main Applications

1. Renewable energy (wind & solar ) storage system

2. Peak shifting of electrical power system
3. Frequency regulation and load following service
4. Smart-grid & micro-grid sites
5. O-grid & bad-grid sites

Benefits

1. Extra long life design, design life is 20 years

2. Superior PSoC and deep cycling performance
3. Excellent quick charge performance, reduce charging time by 30%
4. High potential fuel savings when used with hybrid genset applications

Technical Features

1. Adopt lead carbon technology, reduce the cathode sulphation, ideal for PSoC cycle application and can deliver 4~5 times better cyclic life compared with normal VRLA

2. Better charge acceptability and faster recharge performance
3. Exquisite design for premium quality, high reliability and stability
