AGM GFM-1600 Valve Regulated Sealed Lead Acid Battery 2V 1600AH For Energy Storage
Contact Person : Vic
Phone Number : +8618371595888
WhatsApp : +8618371595888
Detail Information |
|||
Model Number: | GFM-2000 | Nominal Capacity: | 2000AH |
---|---|---|---|
Weight: | 120KG | Voltage: | 2V |
Size: | 385*363*369/388mm | Application: | Telecom / Energy Storage / UPS |
Color: | Grey | Type: | Acid Lead Battery |
Product Name: | 2V 2000AH Lead Acid Battery | Terminal: | M8 |
Highlight: | VRLA Sealed Lead Acid Battery,2000AH Sealed Lead Acid Battery,M8 AGM 2v 2000ah battery |
Product Description

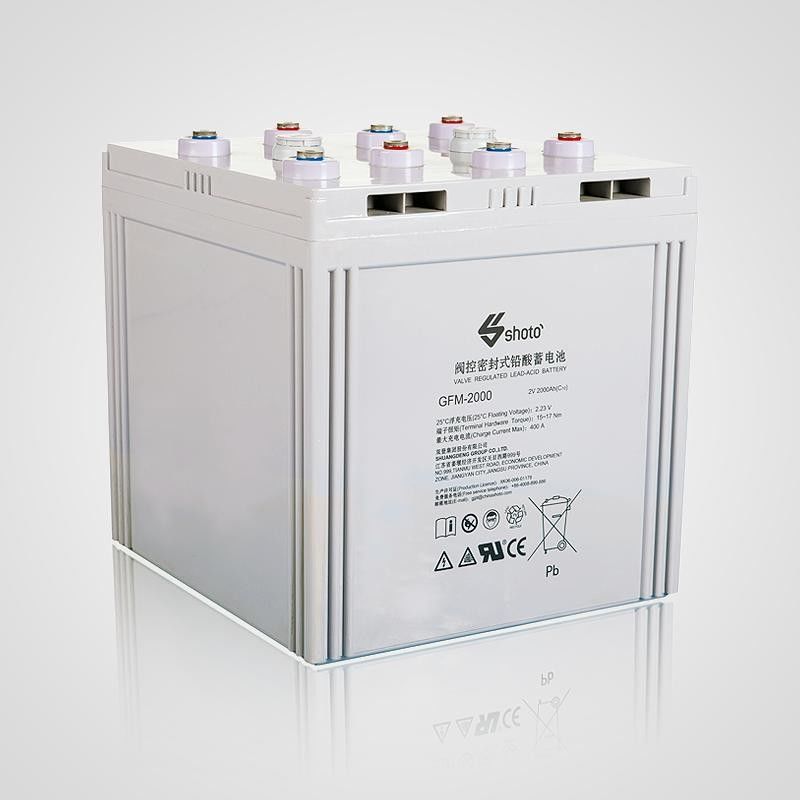

Shoto GFM - 2000 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS
Product Description
Normal Voltage
|
2V
|
||
Capacity
|
2000Ah @ 10hr to 1.80V @ 25˚C(77˚F)
|
||
Weight
|
120 kg (264.6 lbs)
|
||
Dimensions
|
Length: 385 mm (15.12 in)
Width: 363 mm (14.29 in)
Height: 369 mm (14.53 in)
Total height: 388 mm (15.28 in)
|
||
Internal Resistance (full charged)
|
0.18 mΩ
|
||
Short- circuit current
|
18520A
|
||
Self Discharge @25˚C(77˚F)
|
Less than 3% after 30 days storage
|
||
|
Discharge: -40˚C ~ 50˚C(-40˚F ~ 122˚F)
Charge: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Storage: -20˚C ~ 40˚C(-4˚F ~ 104˚F)
|
||
Recommended Operating Temperature
|
15˚C ~ 25˚C (59˚F ~ 77˚F)
|
||
Recommended Charging Current
|
300A
|
||
Charging Voltage @25˚C(77˚F)
|
Float: 2.23 V/cell
Equalize: 2.35 V/cell
|
||
Terminal
|
M8
|
||
|
106 % @ 40˚C
80 % @ 0˚C
60 % @ -20˚
|
||
Design life @25°C
|
15 years
|
1. Back-up power for communication and signal system
2. Back-up power for Electric power system&nuclear power station
3. Solar and wind power generation energy storage system
4. Back-up power for military&navigation
5. Back-up power for UPS&emergency lighting
1. 15 years designed life
2. Adopt the TLS patent technology with reliable sealing
3. Unique design for monomer structure, complete range of models with wide choice
4. Mature product technology and stable operation
1. The plate is with the structure of big grid and block, and is made of special alloy through special process of quadric basic lead sulfate, which improves specific energy of the battery and prolongs the cycle service life
2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.4. High-purity electrolyte and special additives Unique assembled maze seal structure of termi-nal (patented technology) ensures the safety and reliability of seal.
