40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery
40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery
Contact Now

40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery

Payment Terms : L/C, T/T, Western Union
Brand Name: shoto Model Number: 6-GFM-200Ah

Detail Information
Weight: 58KG Voltage: 12V
Size: 511*212*225/232mm Capacity: 150Ah 10hr Rate
Nominal Capac: 150AH Maintenance Type: Free
Application: Telecom / Energy Storage / UPS Battery Type: Sealed VRLA Lead Acid Battery
Type: Lead Acid Battery Terminal: M8
High Light:

40A VRLA Lead Acid Battery

,

Valve Regulated Rechargeable Battery 12v 150ah

,

VRLA 12v 150ah lead acid battery

Product Description

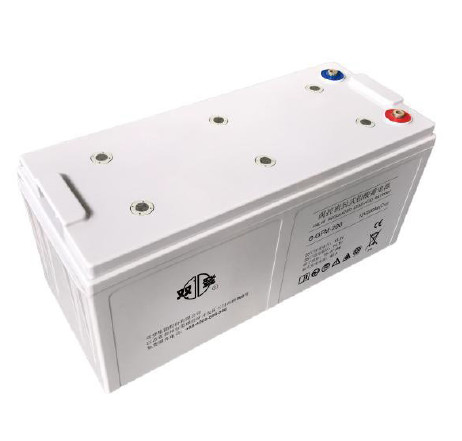

Valve-Regulated Lead-Acid Battery 6-GFM-200Ah
Overview
Quick Details
Brand Name:
Shoto
Model Number:
6-GFM-200
Nominal Capacity:
200AH
Place of Origin:
Jiangsu, China
Weight:
62KG
Maintenance Type:
Free
Voltage:
12V
Size:
496*259*210/220mm
Sealed Type:
Sealed
Usage:
Telecom, Energy Storage and UPS
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Lead Acid Battery
Type:
Lead Acid Battery
Product name:
12V 200AH Lead Acid Battery
Capacity:
200Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M8
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Lead Time:
Shipped in 45 days after payment

Product Description

Shoto 6 - GFM - 200 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery 0
Normal Voltage
12V
Capacity
200Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
62.0 kg (136.4 lbs)

Dimensions
Length: 496 mm
Width: 259 mm
Height: 210 mm
Total height: 220 mm
Internal Resistance (full charged)
3.7 mΩ
Maximum Discharge Current
1240A (5sec)
Self Discharge @25˚C(77˚F)
Less than 8% after 90 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Maximum Charging Current Limited
40A
Charging Voltage @25˚C(77˚F)
Float: 2.25 V/cell
Cycle: 2.35 V/cell
Terminal
M8

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
10 years

Main Applications

1. Backup power for telecom and signal system
2. Military field, railway system, power system
3. UPS & emergency lighting system
4. Fire alarm and security system

Benefits

1. 10 years design life
2. Safely and reliably sealed
3. High energy density, low internal resistance and low discharge rate
4. Excellent charging acceptability and high sealed reaction effciency

Technical Features

1. Adopt high strength ABS plastic, compact structure for battery container and valve, good impact resistance,and shock resistant performance.

2. Adopt multi-element alloy grids, low internal resistance, good corrosion resistance ability and charging acceptability.
3. New production process for plate, improve the utilization of active materiality.

4. High-purity electrolyte and special additives (ZL02112896.0), low self-discharge.

5. Multi-Iayer seal technology and special seal glue, no leakage and no acid mist escape, safe and reliable.

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery 1

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery 2

Performance Curve

40A Valve Regulated Rechargeable Battery 12v 150ah Lead Acid Battery 3
