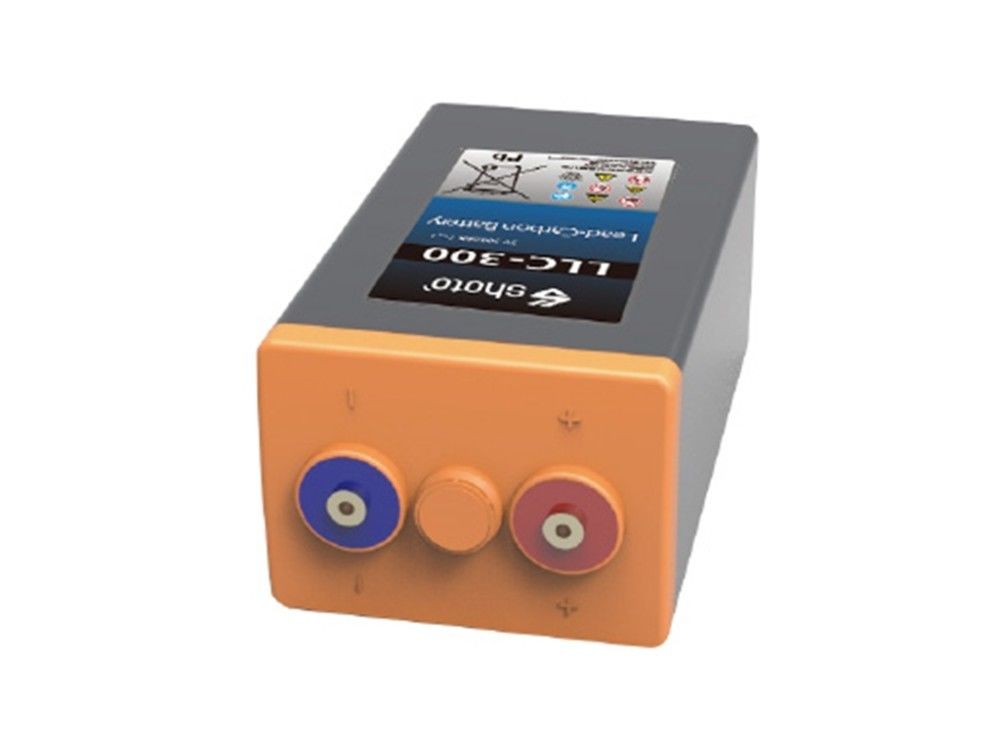

300AH Maintenance free Carbon Enhanced Lead Acid Battery M8 Terminal
300AH Maintenance free Carbon Enhanced Lead Acid Battery M8 Terminal
Contact Now

300AH Maintenance free Carbon Enhanced Lead Acid Battery M8 Terminal

Minimum Order Quantity : 1PCS Price : $124/pcs
Brand Name: SHOTO Model Number: LLC-300

Detail Information
Model Number: LLC-300 Nominal Capacity: 300AH
Weight: 23.4KG Voltage: 2V
Size: 125*207*358/372mm Application: Telecom / Energy Storage / UPS
Color: Grey Type: Acid Lead Battery
Product Name: 2V 300AH Lead Acid Battery Terminal: M8
High Light:

300AH Carbon Enhanced Lead Acid Battery

,

M8 Carbon Enhanced Lead Acid Battery

,

300AH lead carbon batteries

Product Description

Product Description



Shoto LLC - 300 VRLA Maintenance - free Sealed Lead - carbon AGM Battery for Telecom / Energy Storage / UPS







Main Applications

1. Renewable energy (wind & solar ) storage system

2. Peak shifting of electrical power system
3. Frequency regulation and load following service
4. Smart-grid & micro-grid sites
5. O-grid & bad-grid sites

Benefits

1. Extra long life design, design life is 20 years

2. Superior PSoC and deep cycling performance
3. Excellent quick charge performance, reduce charging time by 30%
4. High potential fuel savings when used with hybrid genset applications

Technical Features

1. Adopt lead carbon technology, reduce the cathode sulphation, ideal for PSoC cycle application and can deliver 4~5 times better cyclic life compared with normal VRLA

2. Better charge acceptability and faster recharge performance
3. Exquisite design for premium quality, high reliability and stability

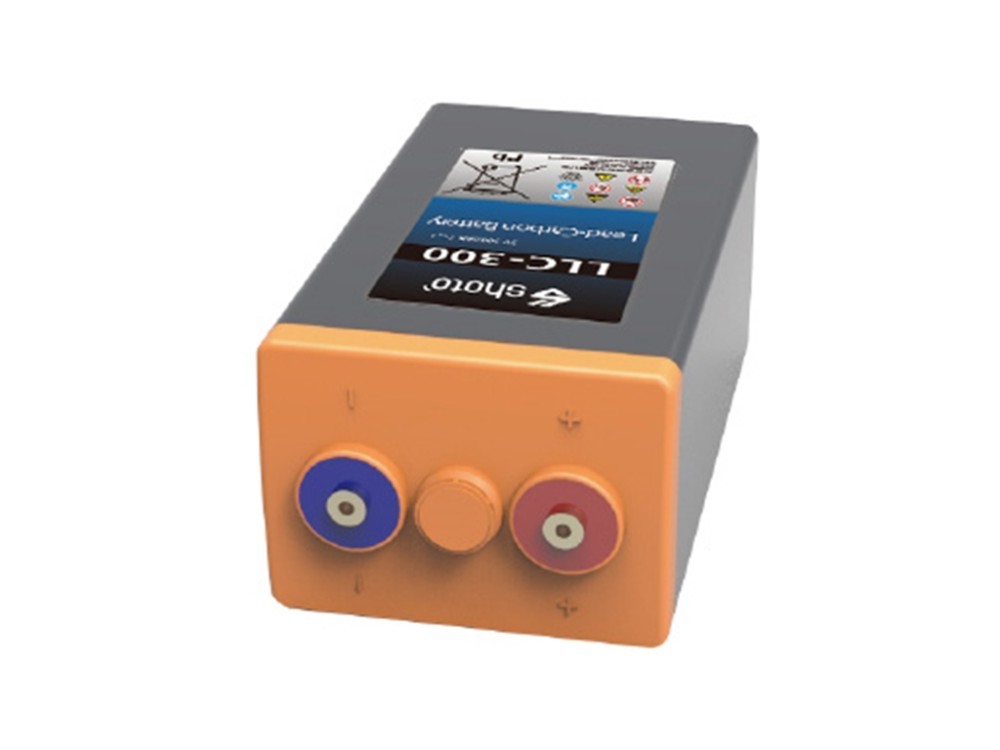

300AH Maintenance free Carbon Enhanced Lead Acid Battery M8 Terminal 0
Normal Voltage
2V
Capacity
300Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
23.4 kg (51.6 lbs)

Dimensions
Length: 125 mm (4.92 in)
Width: 207 mm (8.15 in)
Height: 358 mm (14.09 in)
Total height: 372 mm (14.65 in)
Internal Resistance (full charged)
0.38mΩ
Short- circuit current
6400A
Self Discharge @25˚C(77˚F)
Less than 4% after 30 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current
45A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Equalize: 2.35 V/cell
Terminal
M8

Capacity Affected by Temperature
105 % @ 40˚C
80 % @ 0˚C
60 % @ -20˚
Design life @25°C
20 years
