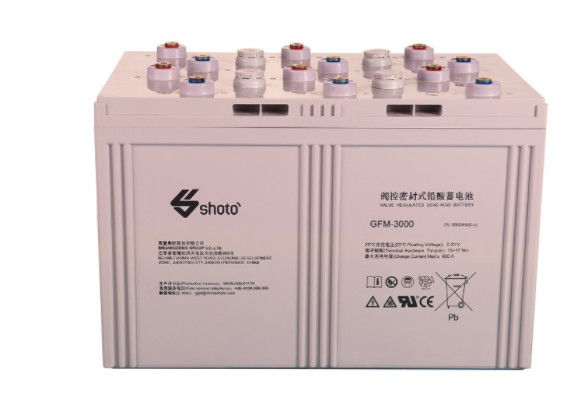

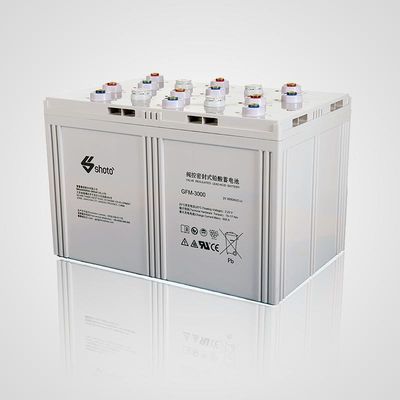

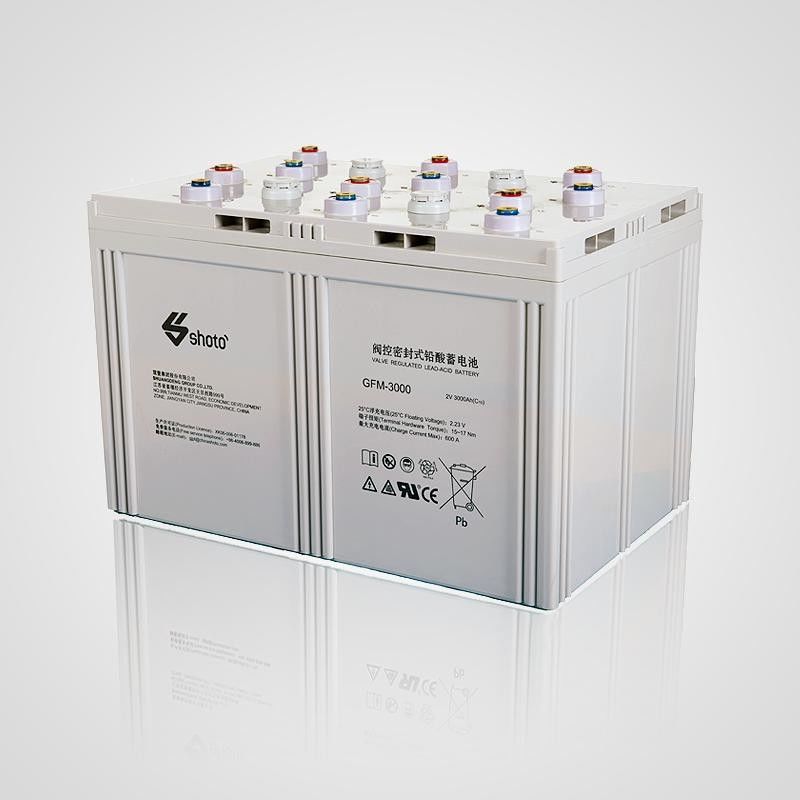

3000AH AGM Sealed Lead Acid Battery M8 Terminal For Nuclear Power Station

Minimum Order Quantity : 1PCS Price : $759/pcs
Brand Name: SHOTO Model Number: GFM-3000

Detail Information

Model Number: GFM-3000 Nominal Capacity: 3000AH
Weight: 180KG Voltage: 2V
Size: 568*363*369/388mm Application: Telecom / Energy Storage / UPS
Type: Acid Lead Battery Product Name: 2V 3000AH Lead Acid Battery
Capacity: 3000Ah 10hr Rate Terminal: M8
Highlight:

M8 10hr Rate Sealed Lead Acid Battery

,

Power Station Sealed Lead Acid Battery

,

3000AH agm lead acid battery

Product Description

Product Description



Shoto GFM - 3000 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS





Normal Voltage
2V
Capacity
3000Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
180 kg (396.8 lbs)

Dimensions
Length: 568 mm (22.36 in)
Width: 363 mm (14.29 in)
Height: 369 mm (14.53 in)
Total height: 388 mm (15.28 in)
Internal Resistance (full charged)
0.17 mΩ
Short- circuit current
28000A
Self Discharge @25˚C(77˚F)
Less than 3% after 30 days storage

Operating Temperature Range
Discharge: -40˚C ~ 50˚C(-40˚F ~ 122˚F)
Charge: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Storage: -20˚C ~ 40˚C(-4˚F ~ 104˚F)
Recommended Operating Temperature
15˚C ~ 25˚C (59˚F ~ 77˚F)
Recommended Charging Current
450A
Charging Voltage @25˚C(77˚F)
Float: 2.23 V/cell
Equalize: 2.35 V/cell
Terminal
M8

Capacity Affected by Temperature
106 % @ 40˚C
80 % @ 0˚C
60 % @ -20˚
Design life @25°C
15 years

Main Applications

1. Back-up power for communication and signal system
2. Back-up power for Electric power system&nuclear power station
3. Solar and wind power generation energy storage system
4. Back-up power for military&navigation
5. Back-up power for UPS&emergency lighting

Benefits

1. 15 years designed life
2. Adopt the TLS patent technology with reliable sealing
3. Unique design for monomer structure, complete range of models with wide choice
4. Mature product technology and stable operation

Technical Features

1. The plate is with the structure of big grid and block, and is made of special alloy through special process of quadric basic lead sulfate, which improves specific energy of the battery and prolongs the cycle service life

2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.
3. Add special additives tothe positive and negative plate, improve the utilization of active material and charging acceptability

4. High-purity electrolyte and special additives Unique assembled maze seal structure of termi-nal (patented technology) ensures the safety and reliability of seal.
