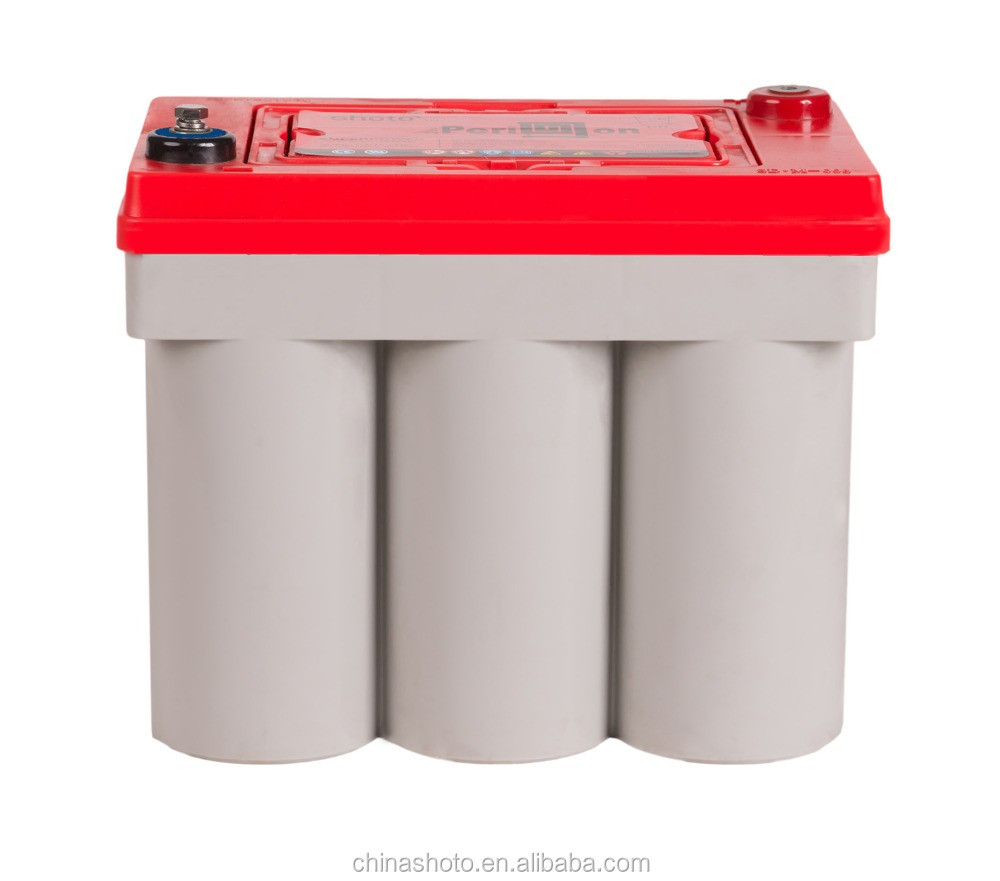

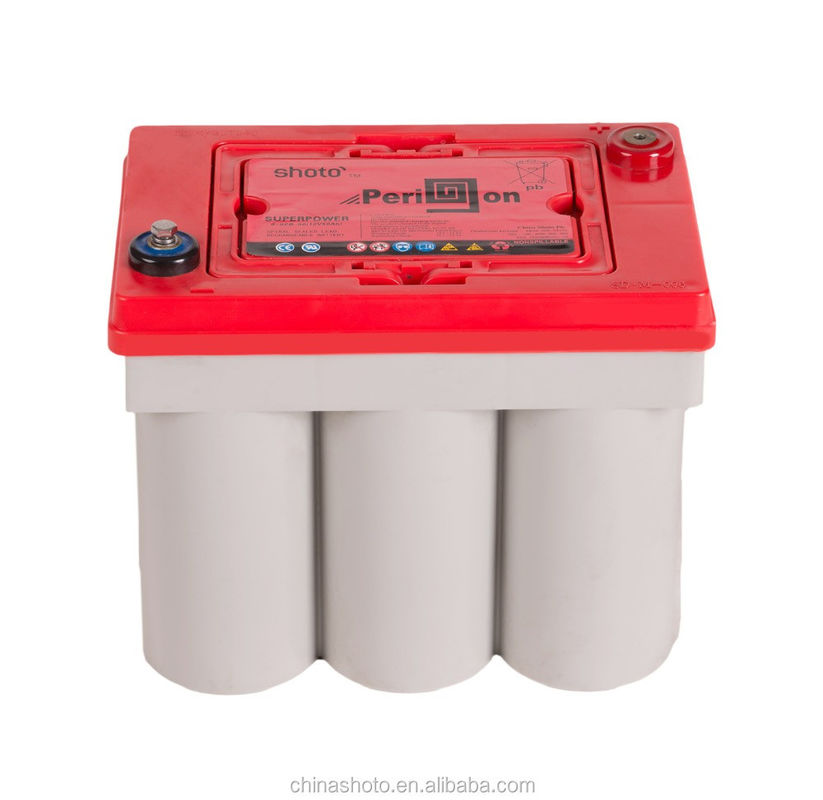

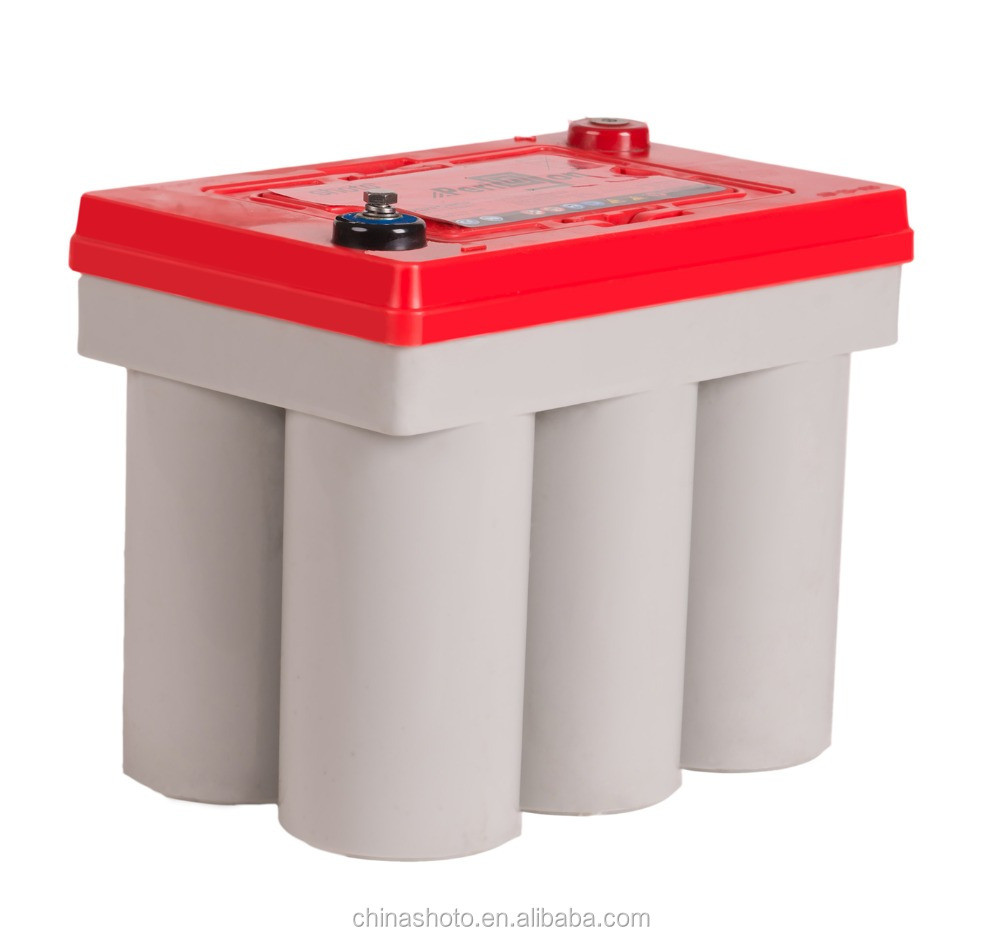

50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery
50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery 50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery 50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery
Contact Now

50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery

Place of Origin: Jiangsu, China Brand Name: shoto
Certification: CE / UL / ISO9001 / ISO18001 / ISO14001 Model Number: 6-SPB-50A

Detail Information
Model Number: 6-SPB-50A Nominal Capacity: 50AH
Weight: 18KG Maintenance Type: Free
Voltage: 12V Size: 256*168.5*204/213mm
Sealed Type: Sealed Usage: Telecom, Energy Storage And UPS
Application: Telecom / Energy Storage / UPS Battery Type: Sealed VRLA Lead Acid Battery
High Light:

Solar Energy 50Ah AGM Spiral Battery

,

50Ah VRLA Sealed AGM Spiral Battery

,

50Ah VRLA solar energy storage battery

Product Description

Shoto 6 - SPB - 50A VRLA Maintenance - free Lead - acid AGM Spiral Battery for Telecom / Energy Storage / UPS
Overview
Quick Details
Brand Name:
Shoto
Model Number:
6-SPB-50A
Nominal Capacity:
50AH
Place of Origin:
Jiangsu, China
Weight:
18KG
Maintenance Type:
Free
Voltage:
12V
Size:
256*168.5*204/213mm
Sealed Type:
Sealed
Usage:
Telecom, Energy Storage and UPS
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Lead Acid Battery
Type:
Lead Acid Battery
Product name:
12V 50AH Lead Acid Battery
Capacity:
50Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M6













Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Lead Time:
Shipped in 45 days after payment

Product Description

Shoto 6 - SPB - 50A VRLA Maintenance - free Lead - acid AGM Spiral Battery for Telecom / Energy Storage / UPS

50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery 0
Normal Voltage
12V
Capacity
50Ah @ 10hr to 1.80V per cell @ 25˚C(77˚F)
Weight
18 kg (39.68 lbs)

Dimensions
Length: 256 mm
Width: 168.5 mm
Height: 204 mm
Total height: 213 mm
Internal Resistance (full charged)
2.9 mΩ
Short - circuit Current
2251 A
Self Discharge @25˚C(77˚F)
Less than 8% after 90 days storage

Operating Temperature Range
Discharge: -45˚C ～ 75˚C(-49˚F ～ 167˚F)
Charge: -20˚C ～ 50˚C(-4˚F ～ 122˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ~ 35˚C
Recommended Charging Current
5A ~ 20A
Charging Voltage @25˚C(77˚F)
Float: 2.25 V/cell
Cycle: 2.40 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
95 % @ 0˚C
80 % @ -20˚
Design life @25°C
15 years

Main Applications

1. UPS

2. Communication station
3. Solar energy storage
4. Smart grid
5. Diferent standby power supply

Benefits

1. Applicable in -45°C ~ 75°C

2. The cycle life of 100% DOD reaches more than 350 times
3. The designed float life is 15 years
4. The time of high rate discharge is two times more than ordinary battery

Technical Features

1. With ultra-thin high purity lead frame design, a higher charge efciency with trickle current is achieved

2. With unique spiral wound design, the dehydration and bulging deformation of the battery are avoided in high-temperature
3. Excellent fast charging performance, more than 95% of electricity is gained within 40 minutes
4. Good battery consistency, available more strings in parallel
Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery 1

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery 2

Performance Curve

50Ah VRLA Sealed Lead Acid AGM Spiral Battery Solar Energy Storage Battery 3
