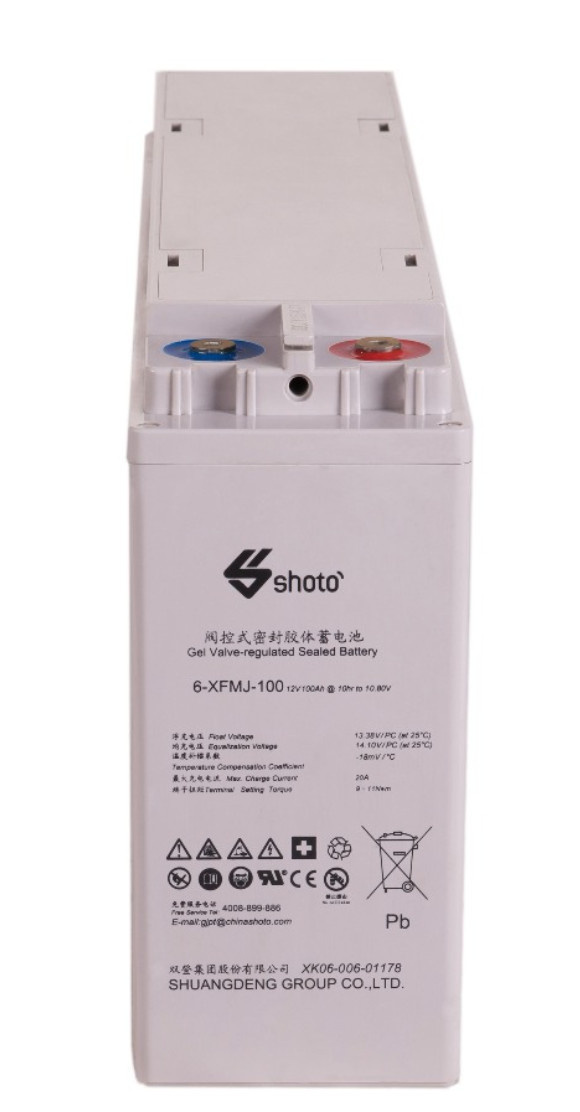

Maintenance Free Front Terminal Solar Deep Cycle Gel Battery 100ah 12v M6 Terminal

Name: Maintenance Free Front Terminal Solar Deep Cycle Gel Battery 100ah 12v M6 Terminal
Brand: SHOTO
SKU: 6-XFMJ-100
Price: 204 USD
Availability: InStock
Rating: 5 (127 reviews)

Minimum Order Quantity :	1PCS	Price :	$204/pcs

Brand Name:	SHOTO	Model Number:	6-XFMJ-100

Detail Information
Model Number:	6-XFMJ-100	Nominal Capacity:	100Ah
Weight:	37.5kg	Size:	520110254/254mm
Voltage:	12V	Application:	Telecom / Energy Storage / UPS
Battery Type:	Sealed VRLA Gel Battery	Product Name:	12V 100AH Lead Acid Battery
Terminal:	M6
High Light:	solar deep cycle gel battery 100ah 12v , M6 solar deep cycle gel battery , 100ah front terminal solar battery

Product Description

Shoto 6 - XFMJ - 100 VRLA Maintenance - free OpzV Gel Front Terminal Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		100Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		37.5 kg (82.7 lbs)
Dimensions		Length: 520 mm Width: 110 mm Height: 254 mm Total height: 254 mm
Internal Resistance (full charged)		4.75 mΩ
Short-circuit Current		2526A
Self Discharge @25˚C(77˚F)		Less than 4% after 28 days storage
Operating Temperature Range		Discharge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Charge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Storage: 5˚C ～ 40˚C(41˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		15 A
Charging Voltage @25˚C(77˚F)		Float: 2.25 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		105 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		15 years

Main Applications

1. Floating applications for telecom sites
2. Solar & wind energy storage system
3. O-grid & Bad-grid hybrid sites
4. UPS and emergency lighting

Benefits

1. Long life design for oat application, 15years
2. Excellent charge acceptability and deep cycling performance
3. Suitable for 19inch/23 inch cabinet, reduce the occupied area
4. High performance/ price ratio and low annual operating cost

Maintenance Free Front Terminal Solar Deep Cycle Gel Battery 100ah 12v M6 Terminal 0

Technical Features

1. Special gel electrolyte without owing to avoid acid stratication and can prolong service life

2. Front-access terminal connections for fast and easy installation and maintenance
3. Excellent discharging ability in low current

4. High stability and security, millions of batteries are in service

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
