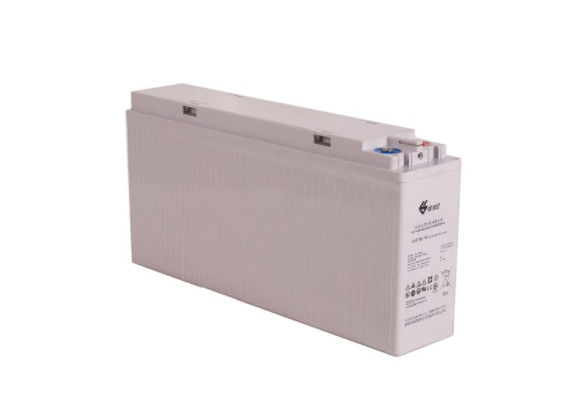

90AH M6 Sealed Front Terminal VRLA 12v Battery Telecom Gel Battery 6-XFMJ-90

Name: 90AH M6 Sealed Front Terminal VRLA 12v Battery Telecom Gel Battery 6-XFMJ-90
Brand: SHOTO
SKU: 6-XFMJ-90
Price: 182 USD
Availability: InStock
Rating: 5 (100 reviews)

Minimum Order Quantity :	1PCS	Price :	$182/pcs

Brand Name:	SHOTO	Model Number:	6-XFMJ-90

Detail Information
Model Number:	6-XFMJ-90	Nominal Capacity:	90Ah
Weight:	33.5KG	Size:	395110286/286mm
Application:	Telecom / Energy Storage / UPS	Battery Type:	Sealed VRLA Gel Battery
Product Name:	12V 90AH Lead Acid Battery	Capacity:	90Ah 10hr Rate
Terminal:	M6
High Light:	6-XFMJ-90 90AH VRLA 12v Battery , Front Terminal VRLA 12v Battery , 90AH telecom gel battery

Product Description

Shoto 6 - XFMJ - 90 VRLA Maintenance - free OpzV Gel Front Terminal Battery for Telecom / Energy Storage / UPS

Normal Voltage		12V
Capacity		90Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight		33.5 kg (73.9 lbs)
Dimensions		Length: 395 mm Width: 110 mm Height: 286 mm Total height: 286 mm
Internal Resistance (full charged)		5.0 mΩ
Short-circuit Current		2400A
Self Discharge @25˚C(77˚F)		Less than 4% after 28 days storage
Operating Temperature Range		Discharge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Charge: -20˚C ～ 50˚C(-4˚F ～ 122˚F) Storage: 5˚C ～ 40˚C(41˚F ～ 104˚F)
Recommended Operating Temperature		15˚C ～ 25˚C (59˚F ～ 77˚F)
Recommended Charging Current		13.5 A
Charging Voltage @25˚C(77˚F)		Float: 2.25 V/cell Cycle: 2.35 V/cell
Terminal		M6
Capacity Affected by Temperature		105 % @ 40˚C 85 % @ 0˚C 60 % @ -20˚
Design life @25°C		15 years

Main Applications

1. Floating applications for telecom sites
2. Solar & wind energy storage system
3. O-grid & Bad-grid hybrid sites
4. UPS and emergency lighting

Benefits

1. Long life design for oat application, 15years
2. Excellent charge acceptability and deep cycling performance
3. Suitable for 19inch/23 inch cabinet, reduce the occupied area
4. High performance/ price ratio and low annual operating cost

Technical Features

1. Special gel electrolyte without owing to avoid acid stratication and can prolong service life

2. Front-access terminal connections for fast and easy installation and maintenance
3. Excellent discharging ability in low current

4. High stability and security, millions of batteries are in service

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

Performance Curve
