150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001
150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001
Contact Now

150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001

Payment Terms : L/C, T/T, Western Union
Place of Origin: CHINA Brand Name: shoto
Certification: CE / UL / ISO9001 / ISO18001 / ISO14001 Model Number: 6-GFM-150Ah

Detail Information
Weight: 44KG Voltage: 12V
Size: 481*174*218/225mm Capacity: 150Ah 10hr Rate
Nominal Capac: 150AH Maintenance Type: Free
Sealed Type: Sealed Usage: Telecom, Energy Storage And UPS
Battery Type: Sealed VRLA Lead Acid Battery Place Of Origin: Jiangsu, China
High Light:

150Ah Small Sealed Lead Acid Batteries

,

12V Small Sealed Lead Acid Batteries

,

150Ah Ups Lead Acid Battery

Product Description

Valve-Regulated Lead-Acid Battery 6-GFM-150Ah
Overview
Quick Details
Brand Name:
Shoto
Model Number:
6-GFM-150
Nominal Capacity:
150AH
Place of Origin:
Jiangsu, China
Weight:
48KG
Maintenance Type:
Free
Voltage:
12V
Size:
496*203*210/220mm
Sealed Type:
Sealed
Usage:
Telecom, Energy Storage and UPS
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Lead Acid Battery
Type:
Lead Acid Battery
Product name:
12V 150AH Lead Acid Battery
Capacity:
150Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M8
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Lead Time:
Shipped in 45 days after payment

Product Description

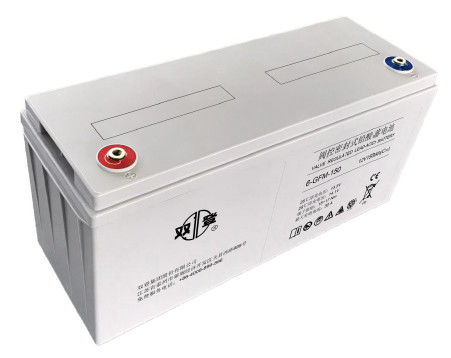

Shoto 6 - GFM - 150 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001 0
Normal Voltage
12V
Capacity
150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
48 kg (105.6 lbs)

Dimensions
Length: 496 mm
Width: 203 mm
Height: 210 mm
Total height: 220 mm
Internal Resistance (full charged)
3.9 mΩ
Maximum Discharge Current
930A (5sec)
Self Discharge @25˚C(77˚F)
Less than 8% after 90 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Maximum Charging Current Limited
30A
Charging Voltage @25˚C(77˚F)
Float: 2.25 V/cell
Cycle: 2.35 V/cell
Terminal
M8

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
10 years

Main Applications

1. Backup power for telecom and signal system
2. Military field, railway system, power system
3. UPS & emergency lighting system
4. Fire alarm and security system

Benefits

1. 10 years design life
2. Safely and reliably sealed
3. High energy density, low internal resistance and low discharge rate
4. Excellent charging acceptability and high sealed reaction effciency

Technical Features

1. Adopt high strength ABS plastic, compact structure for battery container and valve, good impact resistance,and shock resistant performance.

2. Adopt multi-element alloy grids, low internal resistance, good corrosion resistance ability and charging acceptability.
3. New production process for plate, improve the utilization of active materiality.

4. High-purity electrolyte and special additives (ZL02112896.0), low self-discharge.

5. Multi-Iayer seal technology and special seal glue, no leakage and no acid mist escape, safe and reliable.

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001 1

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001 2

Performance Curve

150Ah 12V Small Sealed Lead Acid Batteries UPS Lead Acid Battery ISO18001 3
