Home ProductsSealed Lead Acid Battery12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate
12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate
12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate
Contact Now

12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate

Payment Terms : L/C, T/T, Western Union
Place of Origin: CHINA Brand Name: shoto
Certification: CE / UL / ISO9001 / ISO18001 / ISO14001 Model Number: 6-GFM-100Ah

Detail Information
Weight: 30KG Voltage: 12V
Size: 331*174*218/225mm Capacity: 100Ah 10hr Rate
Nominal Capac: 100AH Battery Type: Sealed VRLA Lead Acid Battery
Product Name: 12V 100AH Lead Acid Battery Material: High Pure Lead
Terminal: M6
High Light:

100AH Sealed Lead Acid Battery

,

ISO14001 Sealed Lead Acid Battery

,

10hr Rate 12V 100AH Lead Acid Battery

Product Description

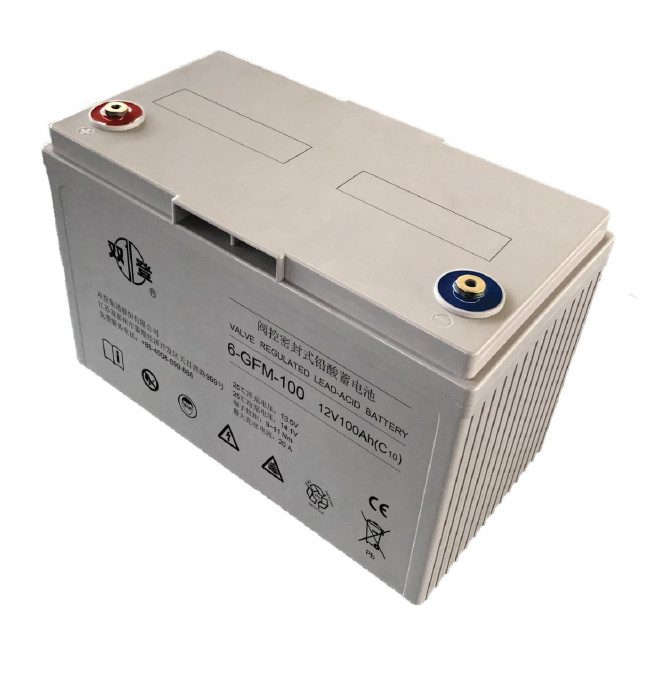

Valve-Regulated Lead-Acid Battery 6-GFM-100Ah
Overview
Quick Details
Brand Name:
Shoto
Model Number:
6-GFM-100
Nominal Capacity:
100AH
Place of Origin:
Jiangsu, China
Weight:
29.5KG
Maintenance Type:
Free
Voltage:
12V
Size:
331*174*211/220mm
Sealed Type:
Sealed
Usage:
Telecom, Energy Storage and UPS
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Lead Acid Battery
Type:
Lead Acid Battery
Product name:
12V 100AH Lead Acid Battery
Capacity:
100Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M6
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Lead Time:
Shipped in 45 days after payment

Product Description

Shoto 6 - GFM - 100 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate 0
Normal Voltage
12V
Capacity
100Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
29.5 kg (65.1 lbs)

Dimensions
Length: 331 mm
Width: 174 mm
Height: 211 mm
Total height: 220 mm
Internal Resistance (full charged)
4.2 mΩ
Maximum Discharge Current
620A (5sec)
Self Discharge @25˚C(77˚F)
Less than 8% after 90 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Maximum Charging Current Limited
20A
Charging Voltage @25˚C(77˚F)
Float: 2.25 V/cell
Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
10 years

Main Applications

1. Backup power for telecom and signal system
2. Military field, railway system, power system
3. UPS & emergency lighting system
4. Fire alarm and security system

Benefits

1. 10 years design life
2. Safely and reliably sealed
3. High energy density, low internal resistance and low discharge rate
4. Excellent charging acceptability and high sealed reaction effciency

Technical Features

1. Adopt high strength ABS plastic, compact structure for battery container and valve, good impact resistance,and shock resistant performance.

2. Adopt multi-element alloy grids, low internal resistance, good corrosion resistance ability and charging acceptability.
3. New production process for plate, improve the utilization of active materiality.

4. High-purity electrolyte and special additives (ZL02112896.0), low self-discharge.

5. Multi-Iayer seal technology and special seal glue, no leakage and no acid mist escape, safe and reliable.

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate 1

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate 2

Performance Curve

12V 100AH Sealed Lead Acid Battery ISO14001 10hr Rate 3
