Home ProductsSealed Lead Acid Battery6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery

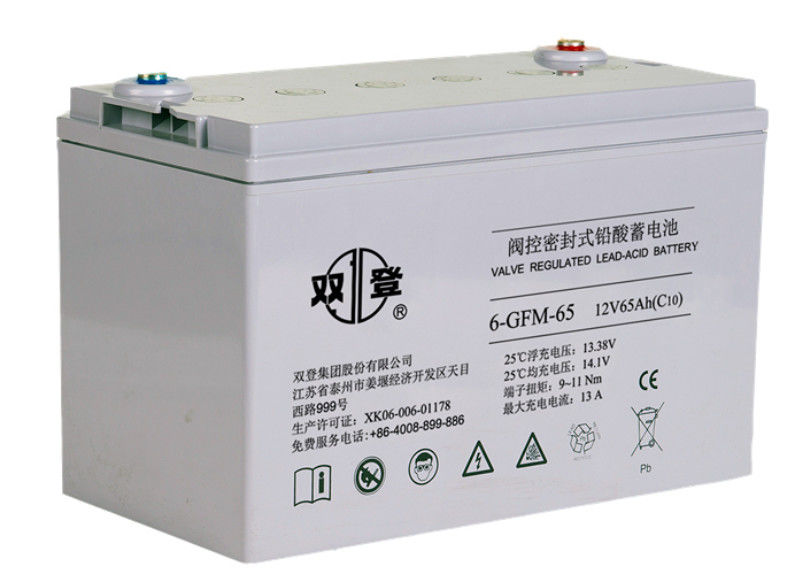

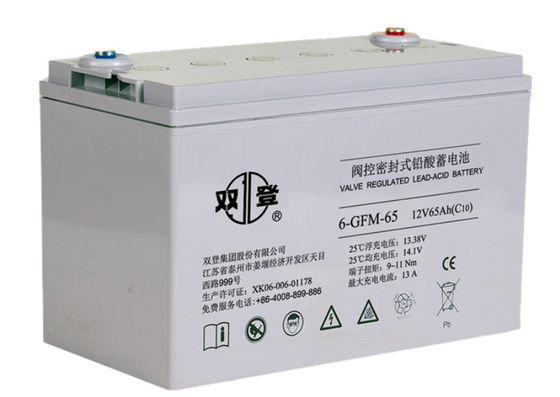

6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery
6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery
Contact Now

6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery

Payment Terms : Western Union
Place of Origin: CHINA Brand Name: shoto
Certification: CE / UL / ISO9001 / ISO18001 / ISO14001 Model Number: 6-GFM-65

Detail Information
Weight: 21KG Voltage: 12V
Size: 235*174*218/225mm Capacity: 65Ah 10hr Rate
Nominal Capac: 65AH Material: High Pure Lead
Terminal: M6 Sealed Type: Sealed
Certificate: CE / UL / ISO9001 / ISO18001 / ISO14001
High Light:

6GFM65 Sealed Lead Acid Battery

,

65AH Sealed Lead Acid Battery

,

65AH pure Lead AGM Battery

Product Description

Valve-Regulated Lead-Acid Battery 6-GFM-65
Overview
Quick Details
Brand Name:
Shoto
Model Number:
6-GFM-65
Nominal Capacity:
65AH
Place of Origin:
Jiangsu, China
Weight:
21KG
Maintenance Type:
Free
Voltage:
12V
Size:
258*168*208/214mm
Sealed Type:
Sealed
Usage:
Telecom, Energy Storage and UPS
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Lead Acid Battery
Type:
Lead Acid Battery
Product name:
12V 65AH Lead Acid Battery
Capacity:
65Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M6
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Lead Time:
Shipped in 45 days after payment

Product Description

Shoto 6 - GFM - 65 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery 0
Normal Voltage
12V
Capacity
65Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
21.0 kg (46.2 lbs)

Dimensions
Length: 258 mm
Width: 168 mm
Height: 208 mm
Total height: 214 mm
Internal Resistance (full charged)
5.2 mΩ
Maximum Discharge Current
403A (5sec)
Self Discharge @25˚C(77˚F)
Less than 8% after 90 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Maximum Charging Current Limited
13A
Charging Voltage @25˚C(77˚F)
Float: 2.25 V/cell
Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
10 years

Main Applications

1. Backup power for telecom and signal system
2. Military field, railway system, power system
3. UPS & emergency lighting system
4. Fire alarm and security system

Benefits

1. 10 years design life
2. Safely and reliably sealed
3. High energy density, low internal resistance and low discharge rate
4. Excellent charging acceptability and high sealed reaction effciency

Technical Features

1. Adopt high strength ABS plastic, compact structure for battery container and valve, good impact resistance,and shock resistant performance.

2. Adopt multi-element alloy grids, low internal resistance, good corrosion resistance ability and charging acceptability.
3. New production process for plate, improve the utilization of active materiality.

4. High-purity electrolyte and special additives (ZL02112896.0), low self-discharge.

5. Multi-Iayer seal technology and special seal glue, no leakage and no acid mist escape, safe and reliable.

Specific Parameters

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)

6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery 1

Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)

6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery 2

Performance Curve

6GFM65 Sealed Lead Acid Battery 12V 65AH Energy Storage Pure Lead AGM Battery 3

Tag:

120Ah battery valve regulated lead acid

120Ah Sealed Lead Acid Battery

10hr Rate Sealed Lead Acid Battery
