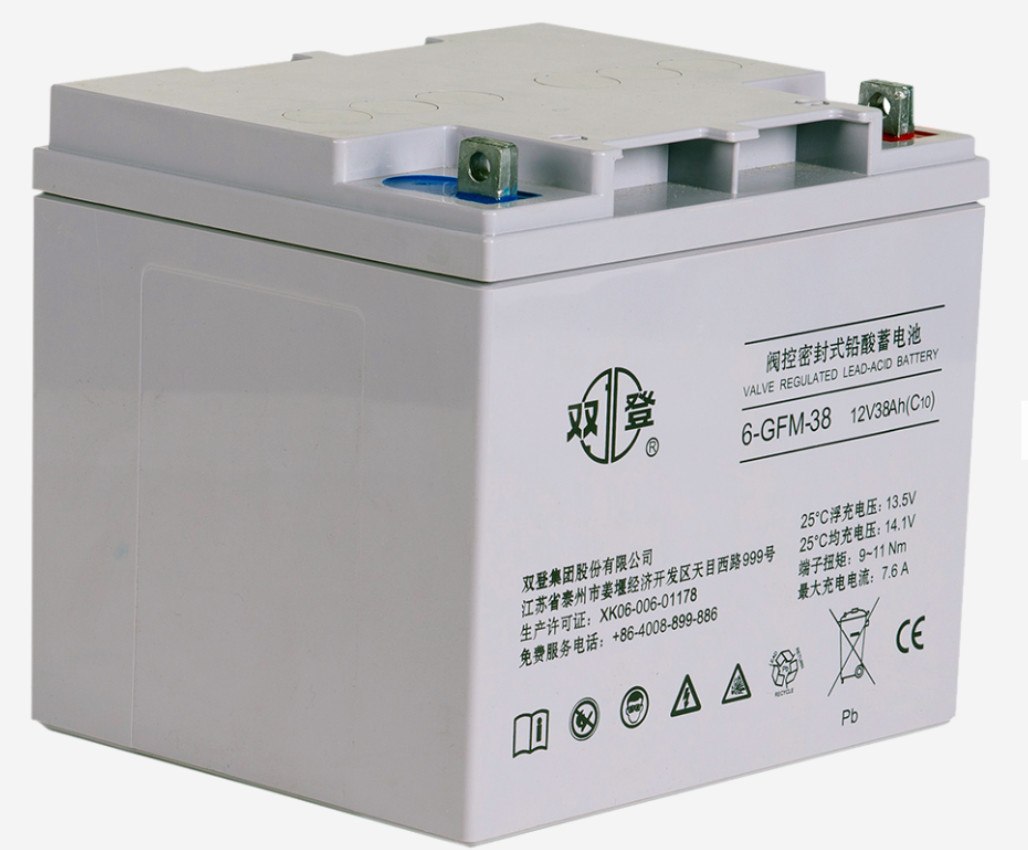

6-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System
6-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System
Contact Now

6-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System

Payment Terms : L/C, T/T, Western Union
Brand Name: shoto

Detail Information
Weight: 13.2KG Voltage: 12V
Size: 197*165*170/174mm Capacity: 40Ah 10hr Rate
Material: High Pure Lead Nominal Capacity: 40AH
Maintenance Type: Free Product Name: 12V 40AH Lead Acid Battery
Terminal: M6
High Light:

40Ah Sealed Lead Acid Battery

,

6-GFM Sealed Lead Acid Battery

,

VRLA 12v 40ah lead acid battery

Product Description

Sealed Lead Acid Battery 6-GFM 40Ah
Overview
Quick Details
Brand Name:
Shoto
Model Number:
6-GFM-40
Nominal Capacity:
40AH
Place of Origin:
Jiangsu, China
Weight:
13.2KG
Maintenance Type:
Free
Voltage:
12V
Size:
197*165*170/174mm
Sealed Type:
Sealed
Usage:
Telecom, Energy Storage and UPS
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Lead Acid Battery
Type:
Lead Acid Battery
Product name:
12V 40AH Lead Acid Battery
Capacity:
40Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M6
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Lead Time:
Shipped in 45 days after payment

Product Description

Shoto 6 - GFM - 40 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS

6-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System 0
Normal Voltage
12V
Capacity
40Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
13.2 kg (29.04 lbs)

Dimensions
Length: 197 mm
Width: 165 mm
Height: 170 mm
Total height: 174 mm
Internal Resistance (full charged)
8.0 mΩ
Maximum Discharge Current
235A (5sec)
Self Discharge @25˚C(77˚F)
Less than 8% after 90 days storage

Operating Temperature Range
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
Recommended Operating Temperature
15˚C ～ 25˚C (59˚F ～ 77˚F)
Maximum Charging Current Limited
8A
Charging Voltage @25˚C(77˚F)
Float: 2.25 V/cell
Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature
105 % @ 40˚C
85 % @ 0˚C
60 % @ -20˚
Design life @25°C
10 years

Main Applications

1. Backup power for telecom and signal system
2. Military field, railway system, power system
3. UPS & emergency lighting system
4. Fire alarm and security system

Benefits

1. 10 years design life
2. Safely and reliably sealed
3. High energy density, low internal resistance and low discharge rate
4. Excellent charging acceptability and high sealed reaction effciency

Technical Features

1. Adopt high strength ABS plastic, compact structure for battery container and valve, good impact resistance,and shock resistant performance.

2. Adopt multi-element alloy grids, low internal resistance, good corrosion resistance ability and charging acceptability.
3. New production process for plate, improve the utilization of active materiality.

4. High-purity electrolyte and special additives (ZL02112896.0), low self-discharge.

5. Multi-Iayer seal technology and special seal glue, no leakage and no acid mist escape, safe and reliable.

6-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System 16-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System 26-GFM VRLA 12V 40Ah Sealed Lead Acid Battery For Emergency Lighting System 3
